Product Specifications
| Prod Model: |
HHW-2J HHW-3J HHW-4J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bending Formers: |
1/2"~4" |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Steel Pipe Bending Machine |
Product Description

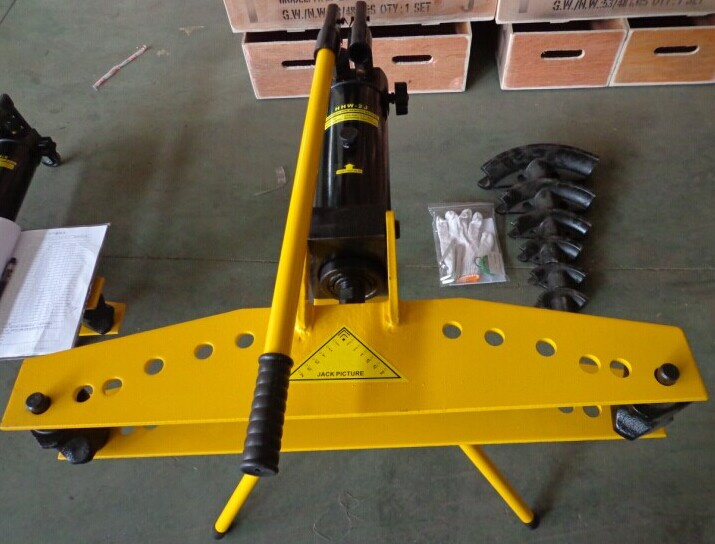

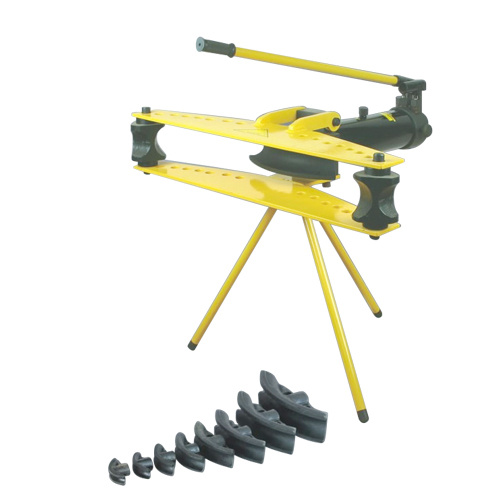

The bender is applicable for bending steel pipes up to 90 degree.
It features simple operation, long service life and smooth round bends.
|
Model |
Capacity (T) |
Max.stroke (mm) |
Bending range (mm) |
Bending formers |
Wall thickness of pipe (mm) |
G.W. (Kg) |
Volume(mm) |
|
HHW-2J |
13 |
250 |
Φ21.5 - Φ60 |
1/2" 3/4" 1" 11/4" 11/2" 2"
|
2.75-4.5 |
74 |
960*350*270 |
HHW-3J
|
20 |
290 |
Φ21.5 - Φ88.5 |
1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
|
2.75-5 |
126 |
1180*460*270 |
HHW-4J
|
23 |
370 |
Φ21.5 - Φ108 |
1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
|
2.75-6 |
174 |
1180*460*32 |
Established in 1997, Yuhuan Huanhu Machinery-Electric Tools Factory is an experienced manufacturer of hydraulic tools and machinery in Zhejiang, China. From the very beginning we focus on delivering high quality products as well as professional service to our customers.
With over 15 years development, we have set up an extensive product range that includes pipe benders, hydraulic cylinders, hydraulic crimping tools, hydraulic bearing pullers, hydraulic knockout punches, hydraulic busbar processors, hydraulic cable cutters, hydraulic pumps, etc. Benefiting from high and stable quality performance, the products have been sold worldwide and gained positive feedbacks from customers and users.
Now we're looking forward to creating even brighter future with domestic and overseas customers.
