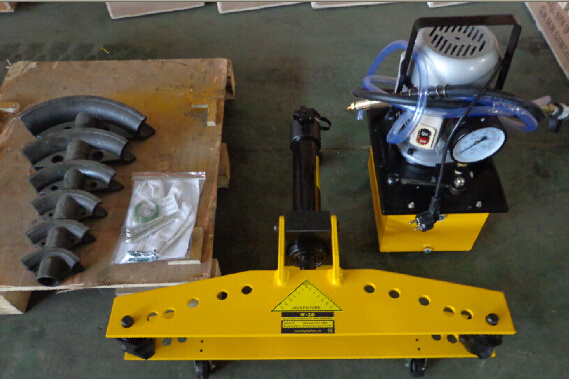

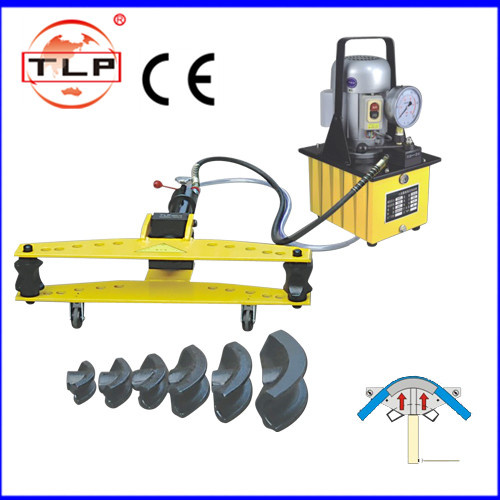

Electro-hydraulic pipe benders for bending steel pipes from 1/2" to 4".
We have the following three sizes of Electro-hydraulic Pipe Benders to your different needs:
Model: HHW-2D
Max. Pressure: 16T
Max. Stroke: 250mm
Crimp range: Φ 21.5mm-Φ 60mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2"
Pipe wall thickness: 2.75mm-4.5mm
G. W.: 74kg
Volume(cm): 96*35*27
Model: HHW-3D
Max. Pressure: 20T
Max. Stroke: 320mm
Crimp range: Φ 21.5mm-Φ 88.5mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
Pipe wall thickness: 2.75mm-5mm
G. W.: 126kg
Volume(cm): 118*46*27
Model: HHW-4D
Max. Pressure: 23T
Max. Stroke: 370mm
Crimp range: Φ 21.5mm-Φ 108mm
Bending formers(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
Pipe wall thickness: 2.75mm-6mm
G. W.: 174kg
Volume(cm): 118*46*32
Established in 1997, Yuhuan Huanhu Machinery-Electric Tools Factory is an experienced manufacturer of hydraulic tools and machinery in Zhejiang, China. From the very beginning we focus on delivering high quality products as well as professional service to our customers.
With over 15 years development, we have set up an extensive product range that includes pipe benders, hydraulic cylinders, hydraulic crimping tools, hydraulic bearing pullers, hydraulic knockout punches, hydraulic busbar processors, hydraulic cable cutters, hydraulic pumps, etc. Benefiting from high and stable quality performance, the products have been sold worldwide and gained positive feedbacks from customers and users.
Now we're looking forward to creating even brighter future with domestic and overseas customers.
