Starview Electronics Technology Co., Ltd. >> 2.0MP 30X Zooming Network IP WDR IR PTZ IP67 Camera

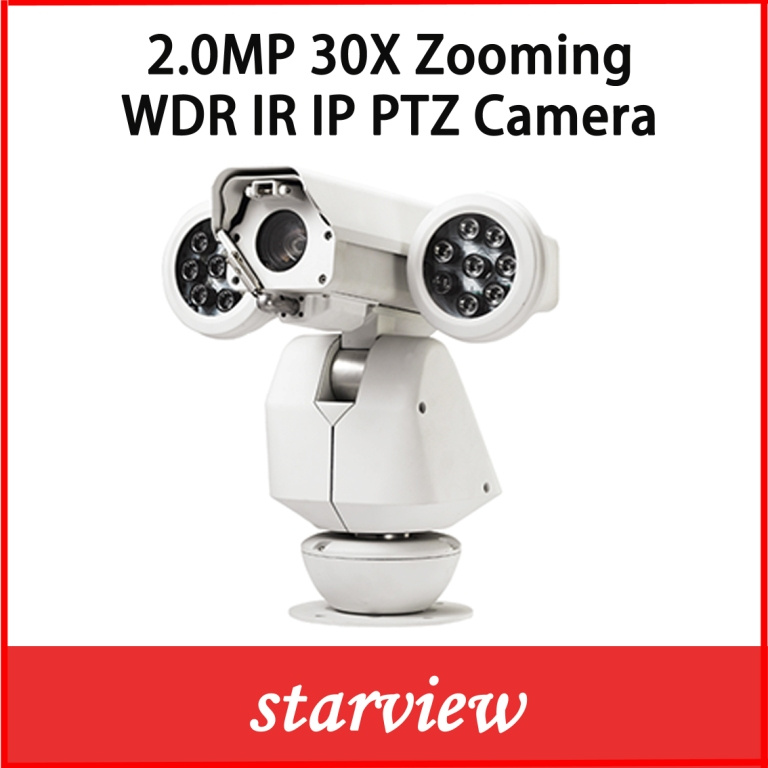

2.0MP 30X Zooming Network IP WDR IR PTZ IP67 Camera

2.0MP 30X Zooming Network IP WDR IR PTZ IP67 Camera
Price: US $ 1088-1100/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union

Product Specifications

Prod Model: SVN-30C554HPT1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chip: Ambarella Soc
Optical Zoom: 30 Optical Zoom
WDR: D-WDR Level Adjustable
Support: Onvif
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Type: IP Camera
Sensor: CMOS
HDMI Format: 1080P
Kind: Manual Focus Lens
Feature: High Definition
Sensor Size: 1/3 inch
Remote Control: With Remote Control
Horizontal Resolution: 2.0MP
Effective Distance: 120m

Product Description

Feature
H.264 Main Profile @ Level 5.0
Ambarella SOC;
1/2.9 " 2.1 megapixel progressive scan CMOS
1080p (1920 x 1080) High-definition image quality
zoom capability:30x(Tamron Lens)
Color:0.1 Lux @(F1.6,AGC ON),ICR ON
B/W:0.05 Lux @(F1.6,AGC ON),ICR OFF
Day&Night and auto ICR function
Defog Function/WDR Function/Image Anti-shake

3D Control,Mouse click and drag to enlarge
Dual 8 High-Power LED ARRAY lights,Night IR Distance:120m
360°continuous pan, -45°-80°tilt rotation
255 presets, Preset accuracy ±0.1°
Pan/Tilt speed H: 0.1-120°/s, V: 0.1-90°/s
8 Sequence,8 Pattern
Keep Watch Function
Support Audio 1 in & 1 out(Optional)
Support alarm in or out(Optional)
Built- Wiper / Heater /Fan, Can be adapted to a variety of harsh environments
Working temperature: -30°C~+65°C

Name

2.0MP 30X WDR IP IR Pan Tilt System

Model

SVN-30C554HPT1

Lens(Tamron Lens)

Optical Zoom

30 Optical Zoom

Focal lenght

f4.3~129mm

Number aperture

Fw/1.6~Ft/5.0

Horizontal viewing angle

58.9°(w)~2.11°(t)

Minimum Focus Distance

0.5M(wide)~ 2.0M(tele)

Zoom speed

≤3s

Camera

Image sensor

1/2.9 "2.1MP sony progressive scan CMOS

Horizontal Resolution

>1000TVL(1920x1080 pixels)

Min.Illumination

Color:0.1 Lux @(F1.6,AGC ON),ICR ON
B/W:0.05 Lux @(F1.6,AGC ON),ICR OFF

3D DNR

3D - MCTF DNR

4A Automatic Control

AWB/AGC/AE/AIC

Privacy Mask

Support ( up to 4 zones)

WDR

D-WDR Level adjustable

BLC

ON/OFF

Electronic Shutter

1/10000s to 1/25s

IR-CUT

Day & Night ICR double filter auto switch

Focus

Auto/Manual

PTZ Function

Pan/ Tilt  Range

0°~ 360° Continuous pan, -45°-80°tilt rotation

Speed (H)

0.01°~ 120°/s

Speed (V)

0.01°~ 90°/s

Preset Speed

120°/s

Presets

255 Presets

Sequences

8 Sequences(Each 16 preset points)

Pattern

8 pattern

Outage memory

Support

Watch function

Support

3D control

3D Positioning Control

Proportion match

Support

Compression standard

Videl Compression

H.264/MJPEG

H.264 Level

Main Profile @Level 5.0

Video bit rate

32Kpbs~16Mpbs adjustable

Audio compression rate

G.711(64Kbps) / MP2(16kHz 16bit 32kbps)

Audio compression

G.711 / AAC / MP2


Video frame

25fps/30fps

Maximum resolution

Full HD/1080P(1920 x 1080)

Dual-stream

Full HD/1080P(1920 x 1080) + Full D1

Image settings

√ Can adjust the picture format , bit rate , brightness, contrast , saturation , sharpness , white balance
√ OSD
√ Auto, Manual or scheduled day / night mode
√ D-WDR
√ Coordinates image mode
√ DefogFunction

Network

Protocols

IPv4,TCP/IP,UDP,HTTP,DHCP,RTP/RTCP,FTP,UPnP,DDNS,NTP,IGMP,ICMP

POE

No

Compatible Protocols

ONVIF

Protection

Password protection, multi- user access

API

SDK

Communication Interface

Network Interface

1 RJ45 10M/100M Adaptive Ethernet port

ALARM

1 Input/1 Output(Optional)

General

IR LED

Dual 8 High-Power LED ARRAY lights

Night IR Distance

120m

Wiper

Yes

Heater

Yes

Fan

Yes

Withstand wind speed

130km/h, work speed 90km/h

Work Temperature

-30°C~+65°C

Power Supply

AC24V±20%,3000mA

Power

15W(Indoor),50W(Outdoor)

N.W.

8KG
