Standard H. 264 Video compression
Embedded Linux OS
Video Bit: 32 Kbps~4Mbps
Support ONVIF
Pan: 0° ~ 360° , Tilt: 0° ~ 125°
Pan speed: 0.1° ~ 120° /sec
255, Preset accuracy ± 0.1°
8 sequences(each 32 presets)
Pattern 8 (each>180s)
3000V lightning & surge proof
IP66 all-weather cover

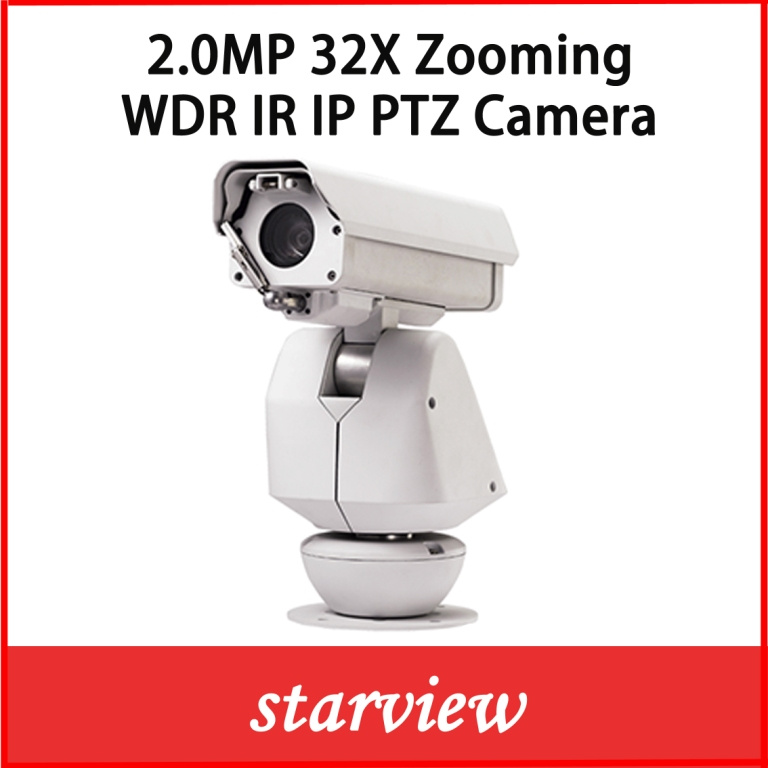

| Model | SVN-32C564HPT2 |
|
| Camera |
| Image sensor | 1/2.8 " 2.1 Mega-pixel progressive scan SONY CMOS, |
| Effective pixels | 2.0MP |
| Zoom | Optical:32X |
|
| Focal length | f=4.7 mm~84.6mm,F1.6-3.0 | f=4.7 mm~94mm,F1.6-3.0 |
| Horizontal angle | Horizontal Viewing Angle : 54.8 ° (W) - 3.4 ° (T); | Horizontal Viewing Angle : 54.8 ° (W) -2.9 ° (T); |
| Min. Illumination | 0.1 Lux @(F1.6,AGC ON); 0.05 Lux @(F1.6,AGC ON) | 0.05 Lux @(F1.6,AGC ON); 0.02 Lux @(F1.6,AGC ON) |
| S/N Ratio | More than 50dB |
| Day&Night | IR-CUT(Auto) |
| White Balance | Auto |
| Network |
| Ethernet | 10/100 Mbps Ethernet RJ-45 port |
| Protocols | TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, DHCP, |
| PPPOE,UPNP, SMTP, FTP, DDNS, DNS, Multicast |
| Security | Multi-level user access with password protection |
| Onvif | Onvif |
| Video compress rate | 64Kpbs-16Mpbs |
| System Integration |
| Video compression | H.264/MJPEG |
| Resolution | Full HD/1080P(1920x1080) + Full D1 |
| Frame Rate | 1~30FPS |
| Requirement | Browser: Internet Explorer 6.0 or above |
| WEB Server | IE browser,remote config/update,replay, record |
| Alarm trigger | Video lost, motion detection, external input |
| Alarm Events | File upload via FTP, Email |
| SDK | SDK available for application development |
| PTZ |
| Pan/Tilt Range | Pan Continuous run 360°, -45°-80°tilt rotation |
| Pan/Tilt Speed | PanSpeed:Max 120°/s;Tilt Speed:Max 90°/s |
| Preset | 255,Preset accuracy±0.1° |
| Pattern | 8 (each>180s) |
| Sequence | 8 sequences |
| Proportion Match | Support |
| Outage Memory | Support |
| Alarm | 4 in/1 out(Optional) |
| Heater | 0°C±5°C ON,8°C±3°C OFF |
| Fan | Yes |
| General |
| Work Temperature | 0°C~60°C(indoor)-30°C~+60°C(outdoor) |
| Power Supply | AC24V±20%,3000mA |
| Power | 15W(Indoor),50W(Outdoor) |
| Packing Mea | 39mm*32mm*32mm |
