Product Specifications

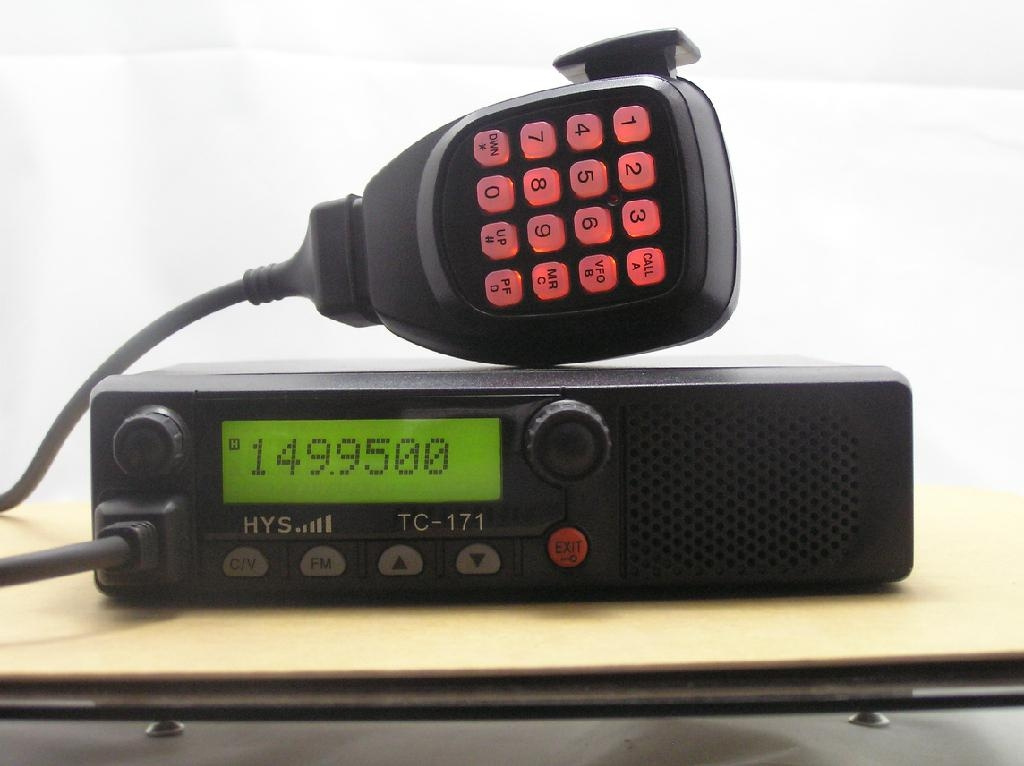

Prod Model: |
TC-171 |
Frequency Range: |
VHF:136-173MHz UHF:400-470MHz |
Operate Mode: |
Co-Channels or Dis-Channel Simplex |
Memory Channels: |
128 Channels |
Antenna Impedance: |
50omen |
Weight: |
1200g |
Operating Voltage: |
13.8V DC Cathode Grounded |
Ctcss/DSC: |
Ctcss:50 Dcs:105 |
Frequency Stability: |
±2.5ppm |
Dimension: |
160*43*137mm |
Country Of Origin: |
China |
Style: |
Sky Wave |
Condition: |
New |
Screen: |
With Screen |
Standard: |
Standard |
Product Description
1:High power 50W output for VHF
2:TouCompatible With American Military Standard(MIL-STD-810C/D/E)· High quality 3:front speakergh!
4:128 memory channels, plus one call channel
· 6 alphanumeric characters offers 100 memory channels · Multiple scan functions · CTCSS & DCS encoder/decoder · FM Receive frequency:87-108MHz · High frequency stability with built-in TCXO General Specification | Frequency Range | VHF:136-173MHZ UHF:400-470MHZ ,440-480MHZ | Operating Voltage | 13.8V DC cathode grounded | Operate Mode | Co-channels or dis-channel simplex | CTCSS/DSC | CTCSS:50 DCS:105 | Memory Channels | 128 Channels | Frequency Stability | ±2.5PPM | Antenna Impedance | 50Ω | Operating Temperature | -30ºC to +60ºC | Weight(approx.) | 1200g(Except antenna ) | Dimension(approx.)(Except antenna ) | 160*43*137mm | Transmitter(Testing under TIA/EIA-603 standard) | Output Power | 50W/20W(VHF) 40W/20W(UHF) | Modulation Mode | 16K¢F3E/11K¢F3E | Audio Response | +1/-3dB | Frequency Stability | ±2.5ppm | Spurious Radiation | < 60dB | Modulation Distortion | ≤5% | Channel Spacing | ≤25KHz (width)/12.5KHz(narrow) | Adjacent channel power | ≥65dB/25KHz | Receiver(Testing under TIA/EIA-603 standard) | Sensitivity | ≤0.8uV | Squelch Sensitivity | ≤0.2uV | Adjacent channel selectivity | ≥60dB | Intermodulation Rejection | ≥60dB | Audio output power | 500mW | Audio Distortion | ≤5% | Co-channel restrain | ≥-0.8dB | Blocking | ≥84dB |
|
|
Quick Details
Place of Origin: | Fujian China (Mainland) | Brand Name: | HYS | Model Number: | TC-171 |
Type: | Vehicle Mouted | Dimensions: | 160*43*137mm | Frequency Range: | VHF:136-174MHZ UHF:400-470MHZ ,440-480MHZ |
Storage Channel: | 200 | Talk Range: | 5-30Km | Memory Channels: | 200 Channels |
Weight(approx.): | 1200g(Except antenna ) |
Packaging & Delivery
Packaging Detail: | IN CARTON |
Delivery Detail: | 2-7DAYS after payment made |
Our experience in the manufacture and export of walkie-talkie /different two way radio, mobile phone's earphones, antenna, charger, headset, battery pack, and all kinds of printer accessories, such as printer chips, ink cartridge, toner cartridge, and the other their parts which can be assembled to interphone, CD, MP3, cell-phone, goes back 10 years.
In this time, we, Quanzhou Truest Communication Co. Ltd, have successfully completed more than 100 clients' OEM/ODM projects. With 30 percent of sales revenue invested in R&D annually and our own molding department, we are able to meet your diverse needs. We have 18 R&D members, each with 15 years of experience who can render a sample based on your specifications in as fast as 10 days. To meet your high-quality requirements, our 18 QC members conduct strict inspections at each stage of production, from raw materials to assembly and packaging. To ensure proper functionality and performance, we only source from reliable suppliers in Taiwan, South Korea and Japan. This ensures our return rate is kept at under 0.1 percent. Bearing CE, RoHS and FCC marks, our items are exported to markets worldwide. Each month, our 8, 000m2 factory yields 6, 000 walkie-talkies, which are widely used in GPS devices, MP3/MP4 players and other digital products.
For more information about Truest, contact us now.
