Functions:
MIG/MAG, P-MIG/MAG, double P-MIG, CO2, TIG, MMA and carbon arc gouging
- DSP control system, more accurate welding process and stable arc
- DSP control wire feed, feeding wire more accurately and smoothly
- Preprogrammed expert database, intelligentize parameter and combination
- One knob synergic operation, simple and easy for everyone to use
- Up to 100 user defined programs can be saved
- Special 4T function to connect with welding robot and different variants
- Soft switch inverter technology leads to unbeatable long term reliability and every energy efficient
- Could equip digital welding torch, quicker and more convenient
- Unique pulse/double pulse technology avoid spatter
- New programs could be defined for new materials
Parameters:
- DSP double pulse MIG/MAG welding machine
- Model:Pulse MIG-500
- Type:IGBT
- Rated input voltage:Three-phase AC 380V ±10%/50Hz
- Rated input capacity:25kVA
- Rated input current:46A
- Rated duty cycle:60%
- Output current adjustment:25 to 500A
- Output voltage adjustment:14 to 50V
- Open-circuit voltage:98V
- Efficiency:≥89%
- Power factor:≥0.87
- Diameter of welding wire:0.8, 1.0, 1.2 and 1.6mm
- Net weight:52.5kg
- Dimensions of machine:645x335x576mm
- Flow rate of shielded gas:15 to 20L/minute
- Insulation of main transformer:H
- Insulation of output reactor:B
- Including accessories:Earth clamp x 1 piece, cable joint x 3 pieces, grounding cable x 3m, control cable x 5m, pressure regulator x 1 piece, water-cooled MIG torch x 1 piece, water tank x 1 set and wire feeder x 1 set
| DSP Double Pulse MIG/MAG Welding Machine |
| Model | Pulse MIG-350H | Pulse MIG-500H |
| Type | IGBT Module |
| Rated input voltage (V) | three phase AC380 ±10% / 50Hz |
| Rated input capacity (KVA) | 14.4 | 25 |
| Rated input current (A) | 25 | 46 |
| Rated duty cycle (%) | 60 | 60 |
| Output current adjustment (A) | 25-350 | 25-500 |
| Output voltage adjustment (V) | 14-40 | 14-50 |
| Open-circuit voltage (V) | 96 | 98 |
| Efficiency (%) | ≥89 |
| Power factor | ≥0.87 |
| Diameter of welding wire (mm) | Φ0.8,Φ1.0, Φ11.2, Φ11.6 |
| Net weight (KG) | 42.5 | 52.5 |
| Dimension of machine (mm) | 645×335×576 | 645×335×576 |
| Flow rate of shielded gas (L/min) | 15-20 |
| Insulation of main transformer | H |
| Insulation of output reactor | B |
| including accessories: earth clamp×1pcs, cable joint×3pcs, grounding cable×3meters, control cable×5meters, pressure regulator×1pcs, water cooled MIG torch×1pcs, water tank×1set, wire feeder×1set |
| (P)MIG-350/500: each parts (wire feeder & main machine & water tank) are separated |

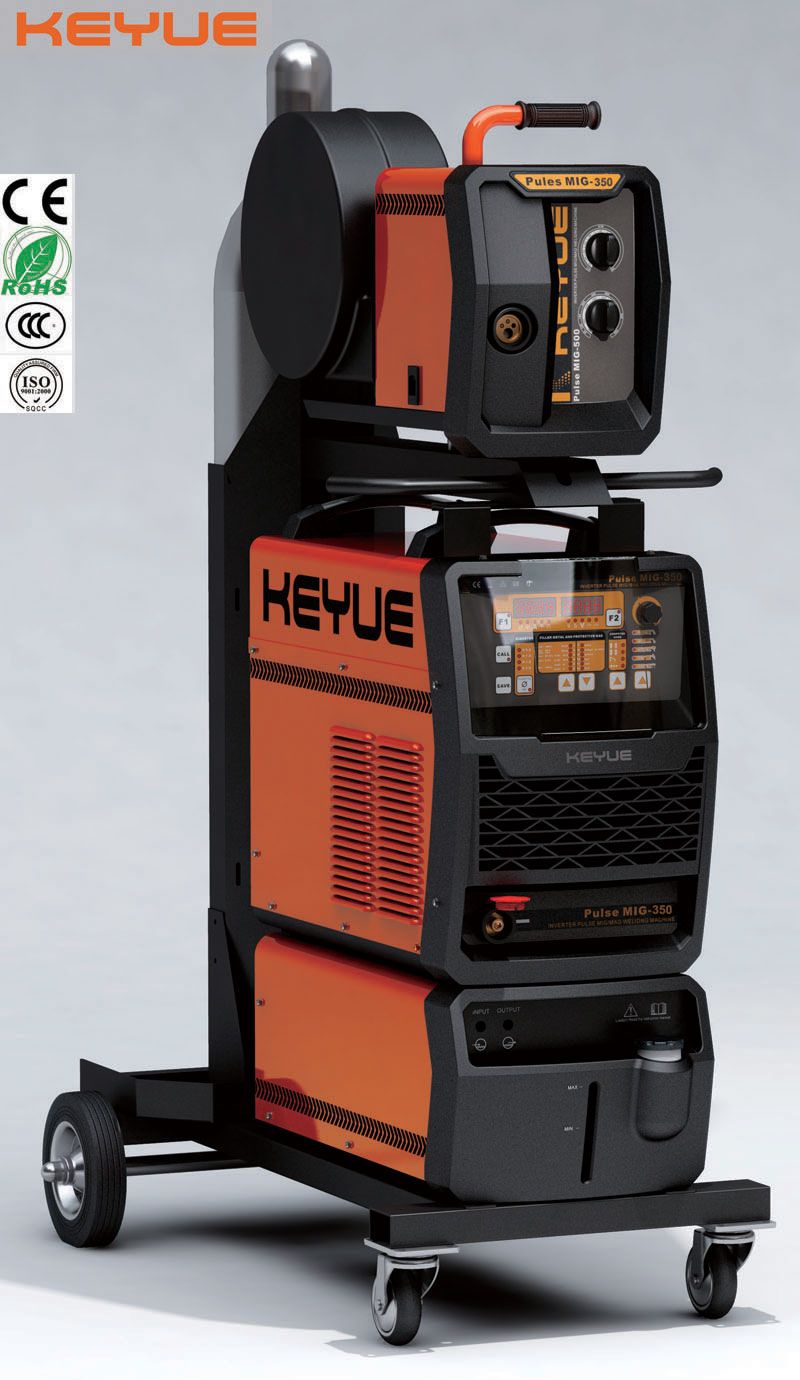

| (P)MIG-350H/500H: all parts (wire feeder & main machine & water tank) could be assembled together on a composite car |
