Product Specifications
| Prod Model: |
ZYNC-1200W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance Classification: |
High-End CNC Machine Tools |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Numerical Control: |
CNC/MNC |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
Product Description

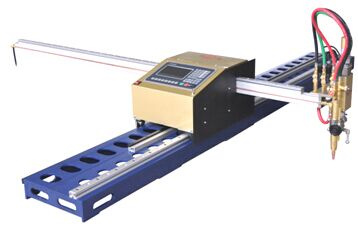

ZYNC-1200W Portable CNC Cutting Machine
For steel sheet width within 1500mm, and length less than 5000mm, you can choose ZYNC-1200W portable CNC cutting machines.
The characteristics as follow:
1) Basic Rail made by H-beam steel completely.
2) Rail guide made in Taiwan.
3) Starfire or Start Sharpon System for option.
4) Gas Solenoid Valve made in Italy.
5) Fastcam program provided.
6) Flame Torch lift by power with anti-collision device.
7) THC control device and system for Plasma cutting.
8) Operation Panel is SH-2012AH/QG.
9) High quality beam for assembling flame & plasma torches.
| Model No. | Cutting scope(mm) | Power voltage
(V/HZ) | Cutting Torch group (set) | Flame cutting
speed(mm/min) | Travel speed of
(mm/min) | Machine Size
L*W*H(m) | Total weight (kg) |
| ZYNC-1200W-2 | 1200*2000
1500*2000 | AC220/50 | 1 | 50-750 | 50-3000 | 2.5*1.9*0.4 | 150 |
| ZYNC-1200W-2.5 | 1200*2500
1500*2500 | AC220/50 | 1 | 50-750 | 50-3000 | 3*1.9*0.4 | 170 |
| ZYNC-1200W-3 | 1200*3000
1500*3000 | AC220/50 | 1 | 50-750 | 50-3000 | 3.5*1.9*0.4 | 190 |
| ZYNC-1200W-3.5 | 1200*3500
1500*3500 | AC220/50 | 1 | 50-750 | 50-3000 | 4*1.9*0.4 | 210 |
| ZYNC-1200W-5 | 1500*5000 | AC220/50 | 1 | 50-750 | 50-3000 | 5.5*1.9*0.4 | 270 |
Models available as follow:
You can choose to use this machine only for flame cutting, only for plasma cutting, or for both plasma and flame cuttings.
