Product Specifications
| Prod Model: |
LPI-R21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Audio / Video Players |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
RoHS |
| Universal: |
Not Universal |
| Transmission Distance: |
<50m |
| Voltage: |
3V |
| Battery Type: |
AAA Battery |
Product Description

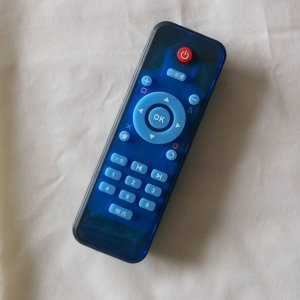

IPTV IR remote control
LPI-R21C
Size:
Keys: 21 keys
Button letter: customized
House: ABS plastics, color customized
IC protocol, NEC, RC5....
Battery: AAAX2, DC3.0V
1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
