Product Specifications
| Prod Model: |
M400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cast Iron |
| Place Of Origin: |
China |
| Processing Type: |
Metal |
| X,Y,Z Motor Type: |
Servo Motor |
| Power Supply: |
Three Phase 380V/50Hz |
| Warranty: |
1 Year |
| Type: |
Tool Milling Machine |
| Structure: |
Dedicated |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Controlling Mode: |
CNC |
| Object: |
Tool |
Product Description

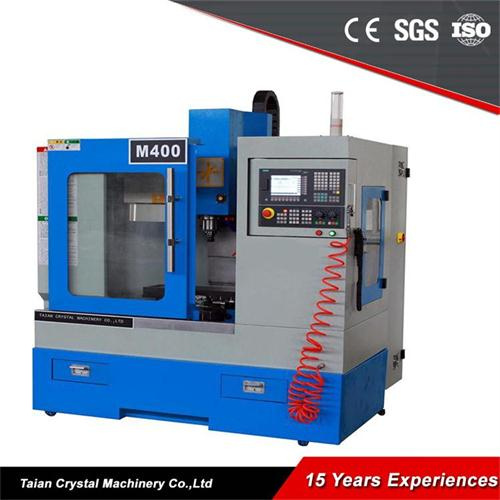

CNC Milling Machine M400
Product Description
A. Features
1. Main structure of lathe bed and column adopt reasonable fabric reinforcement to enhance against earthquakes.
2. Can not be out of shape and chip removal is fluent..
3. Three axis are installed linear guide rail,to maintain high precisionunder highspeed operation for a long time.Fast moving shortens the positioning time and increase productivity.
4.The structure of a precision pressure equipment is connected with the automatic lubrication device,use the special bearings which are used for ball screw,ensure that the positioning accuracy
and the contour control accuracy and mobile shaft rigidity.
5.Three axis are servo feed axis,spindle servo spindle with rigid tapping function, to improve the
machining accuracy,to reduce processing time and improve productivity.
6.You can choose the CNC controler system for the machine
B. Product Overview
1,The overall structure use the high toughness, high iron manufacturing,and after a
highly efficient annealing heat treatment,it effectively eliminate material internal stress,
to ensure the precision of the best stability and durability.
2,Stand column design is big span, it has high rigidity and high stability. It connected to
a strong, stable large casting lathe bed,to ensure the accuracy of the machined part and precision.
3,Counterweight system behind the stand column, and it has biaxial oriented, so the spindle
box cutting move more smoothly,effectively restrain the negative effects of vibration,to ensure
the requirement of accuracy.
4,Three axis use the P3 precision ball screw,cooperate with double nuts washers preloaded,
eliminate back lash in advance,to achieve high stability of positioning accuracy and repeat precision.
5,Three axis machine tool are installed high precision linear rolling guide,to ensure the high
precision of processing, meanwhile increased the speed of fast forward.
6,Three axis feed driven use servo motor and screw straight league,transmitting stable, and
no back lash.And it has good rigidity and damping performance,greatly improved the dynamic
rigidity of transmission system
7,Precision highspeed spindle unit and AC servo motor connected through the synchronous belt ,
low noise, little vibration, low calorific value.Available for milling, drilling, reaming, boring, ream,
tapping and other processing.
8.Column Z axis has large travel (up to 500 mm), so that the processing of high workpiece no
need to be on large machine tools, and at the same time leaving enough space for adding 4th
axis etc.
9.Sheet metal integration design, comprehensive protection, good integrity, high impermeability.
Open sliding door design, more convenient for loading and unloading workpieces.
C. Specification of Mini Milling Machine M400
Model |
M400 |
Table size (mm) |
760×210 |
T-Slot |
14×3×63 |
Max load (kg) |
200 |
Travel of X axis (mm) |
400 |
Travel of Y axis (mm) |
230 |
Travel of Z axis (mm) |
500 |
Distance from spindle nose to table (mm) |
110-610 |
Distance from spindle center to column (mm) |
320 |
Spindle Taper |
ISO30 |
Spindle speed(rpm) |
6000/8000/10000 |
Mpa |
0.6 |
Spindle servo motor power(kw) |
2.2 |
Spindle motor torque (Nm) |
27 |
X/Y/Z axis servo motor torque (mm) |
4 |
X/Y/Z axis Max feeding speed (mm/min) |
5000 |
X/Y/Z axis Max fast moving speed (mm/min) |
12000 |
Coolant pump power (w) |
120 |
Rated flow (L/min) |
25 |
CNC Controller |
SIEMENS 808D |
Positioning accuracy (mm) |
±0.012 |
Repeating accuracy (mm) |
±0.006 |
Net weight/ Gross weight(kg) |
1150/1250 |
Packing size (mm) |
1460×1940×2180mm |
D. Standard configuration
Security locks, lubricating system, cooling tank and dust pans, operation indicator light (red,
yellow, green), working lamp, air gun, toolbox 1 set , instructions 1 set , a set of eight knife.
Optional configuration
Vertical milling cutter bar BT30, quickchange drill collet BT30, spring collet milling cutter
bar BT30, Taper-shank reduction sleeve BT30,
Facemilling cutting rod BT30, Pneumatic rivet, precision mold clamp, suit spring collet CNC
dividing head (four axis)
