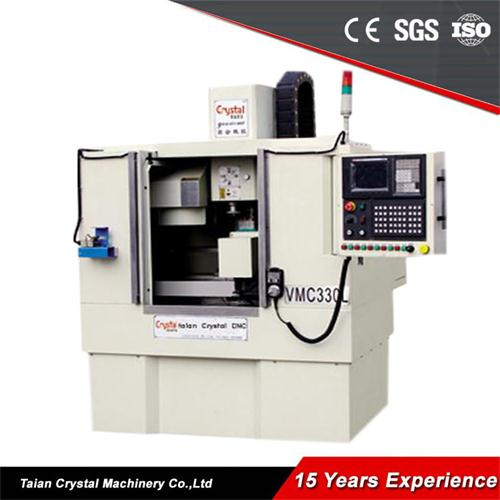

VMC330L CNC milling machine
Product Description
A. Features
*High strength resin sand casting
*Three axis line rail in Taiwan
*Optional system
*BT30Taiwan high speed spindle unit 8000rpm *Separate the handwheel
*Pneumatic broach system
*Full guard
*Automatic intermittent lubrication
B. Specification
Items |
Specification of VMC330L |
Table size(mm) |
690×210 |
T type groove (Number-width(mm)-gap(mm)) |
3-16-63 |
The workbench maximum load(kg) |
100 |
Travel of X axis (mm) |
330 |
Travel of Y axis(mm) |
220 |
Travel of Z axis(mm) |
320 |
The spindle end to the work surface(mm) |
90-410 |
The center of spindle to guide rail face(mm) |
280 |
Taper hole of spindle |
BT30 |
Highest speed of spindle(Rpm) |
10000 |
Power (kW) |
2.2 |
Feed motor
|
The torque of X axis (N.M) |
3.3 |
The torque of Y axis(N.M) |
5 |
The torque of Z axis(N.M) |
5 |
Installation dimensions |
X Square 90×90diameter φ80 YZ Square 110×110diameter φ95 |
Rapid feed rate (m/min.) |
10 |
Fast cutting speed(mm/min) |
1-4000 |
Screw parameters(Diameter mm/screw pitch mm) |
20/5 |
Width of Wire rails X/Y/Z(mm) |
20 |
Accuracy
|
positional accuracy (mm) |
0.02 |
repeated positioning accuracy
(mm) |
0.01 |
AIR PRESSURE Mpa |
0.6 |
Weight(kg) |
1100 |
Dimension(mm) |
1200×1100×2000 |
