Product Specifications
| Prod Model: |
CK6180B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cast Iron |
| Place Of Origin: |
China |
| Processing Type: |
Metal |
| X,Z Motor Type: |
Servo Motor |
| Power Supply: |
Three Phase 380V/50Hz |
| Warranty: |
1 Year |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
CNC |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
Product Description

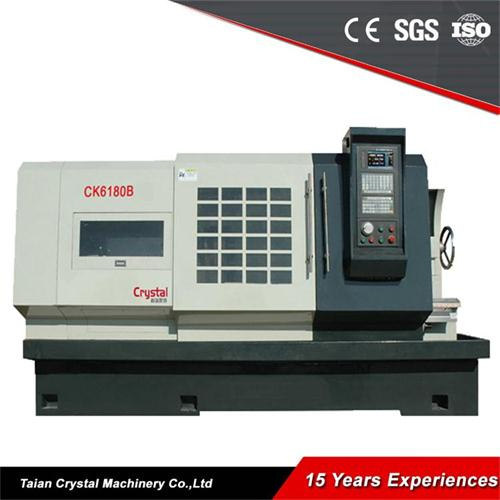

CK6180B CNC Lathe
Product Description
A. Characteristics
Horizontal lathe bed.
Extra large spindle bore: φ105.
Bed way is treated by super audio quenching.
Saddle of the bed and joint surface of the sliding guide rail are laminated by the plastic.
Feeding system is controlled by the servo drive.
Accurate ball screw combined with high precision composite bearing structure...
Ball screw and the joint surface of the sliding guide rail are auto forced lubrication.
The station of the turret can be chosen from vertical type 4 station, vertical 6station and horizontal 6 stations, and so on.
We can set up the manual operation, pneumatic, hydraulic chucks and tailstock.
The control systems include GSK, KND, SIMENS, FANUC and so on.
B. Specifications
items |
names |
data |
specifications |
Max. swim over bed(mm) |
Φ800 |
Max. swim over carriage of slide plate(mm) |
Φ500 |
Max. length of work piece (mm) |
1000 |
Main drive |
Type of main belt drive |
Three gear speed
change, frequency
variable speed
change |
Spindle speed seris |
No grade |
Range of spindle speed(r/min) |
25-850 rpm |
Structure of spindle nose |
C11 |
Spindle bore(mm) |
φ105 |
Front taper of spindle bore |
(Metric)120 1:20 |
Motor power(KW) |
11KW |
Feeding system |
Max distance of moving turret(mm) |
X:530 Z:1200 |
Moving speed of post(mm/min) |
X:4000 Z:5000 |
Resetting accuracy(mm) |
X:0.012 Z:0.016 |
Machining precision of work piece |
IT6-IT7 |
Surface roughness of work piece |
Ra1.6 |
Tailstock device |
Diameter of tailstock quill(mm) |
φ100 |
Max. range of tailstock quill(mm) |
250 |
Taper of tailstock quill |
MT6 |
Tool station device |
Standard configuration |
Vertical motor
4 station turret |
Chosen device |
Horizontal motor
6 station turret |
Resetting accuracy(mm) |
0.01 |
Max. size of tool post(mm) |
30×30 |
Size and weight |
size(length×width×height)(mm) |
3200×1820×1780 |
Net weight(Kg) |
3700 |
Why Choose US
Make you satisfied is our business!
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
