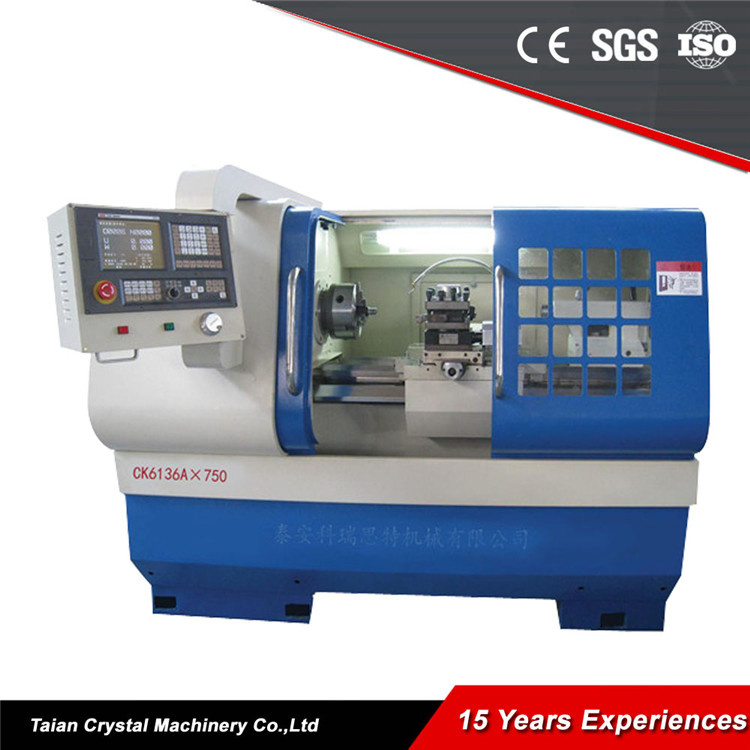

380V Servo Motor CNC Lathe Machine Tool (CK6136A)
Standard configuration:
1. System:GSK928TD-L,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
Optional accessories:
1) pneumatic chuck
2) hydraulic chuck
3) pneumatic tailstock
4) hydraulic tailstock
5) enlarged bord , two gears, variable frequency speed regulation
Specifications
ITEMS |
Specifications |
Max. swim over bed |
Φ360mm |
Max. swim over carriage |
Φ210mm |
Max. length of work piece |
750mm |
Width of the machine |
330mm |
Size of three-jaw chuck |
200mm |
Range of spindle speed |
150-2500rpm |
Spindle bore |
Φ60mm |
Taper of spindle bore |
MT4 |
Stations of tool carrier |
4/6/8 |
Min. setting unit of motor |
(Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post |
(Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill |
MT4 |
Max. range of tailstock quill |
120mm |
Motor power |
5.5KW |
Packing size(length ×width × height) |
2000 *1400 *1650mm |
Net weight |
1450/1550kg |
Main features:
1. After the lead rail of the machine is treated by superaudio quenching and finish
grinding and plastic coating, it is of good rigidity and stability.
2. Independent spindle, stepless speed regulation, with lower noise and high
standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high rotate speed and sophisticated bearing, with smooth
surface.
4.The extra size diameter of the spindle bore is φ60mm while the diameter of chuck is φ200mm.
Company profile:
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a
professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE
CENTER. With 5, 000sqm workshops and offices, we have more than 15 years
experiences in CNC machine research and production. Our machines have been
exported more than 40 countries. We welcome all customers and friends to come to our company!
Why choose us ?
1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important
parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design ofour machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries andwin customer's high
praise.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER. With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!
Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on technology and production.
For the sales, there are internal trade department and international trade department. They are all professional salespersons who can help you solve problems on purchase and technology related to the CNC tools and test machines. Our products are sold both at home and abroad, and they are very popular around the world. All of products have pass CE certification. Welcome to contact with us to make building! !
