Product Specifications
Prod Model: |
CJ19-43A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Circuit Rating Voltage: |
380~660V 80 Contactor |
Circuit Rating Current: |
9~620A |
Suitable For Frequency: |
50/60Hz |
Contactor Standard: |
IEC60947 Contactor |
Contactor Auxiliary Contact: |
2no+2nc/1no+1nc |
Life Time(Mechanical): |
2400~3600 Times |
Life Time (Electrical): |
1200~300 Times |
Contactor Function: |
Protect Over Load Phase Circuit |
Match Fuse Type: |
Rt16 Type |
Material: |
Copper and Anti Fire Plastic |
Size: |
Miniature |
Theory: |
Electromagnetic Relay |
Usage: |
Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay |
Protective Characteristics: |
Open Relay |
Load: |
Medium Power Relay |
Action Principle: |
Electromagnetic Type |
Product Description

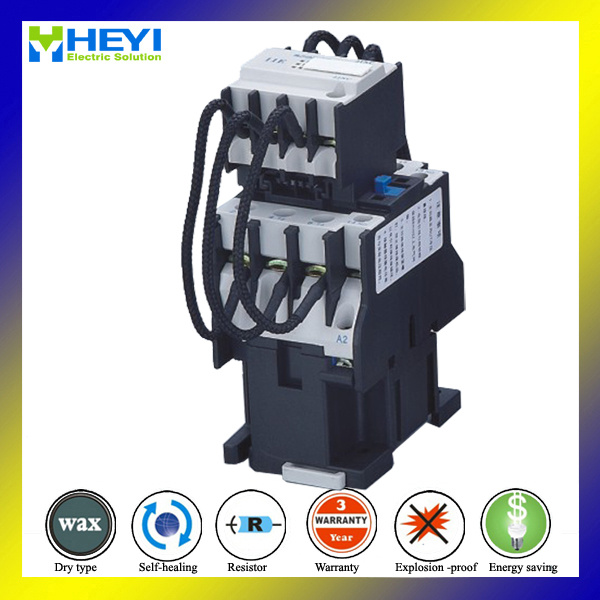

Power Contactor match for power capacitor bank 380v 43A three pole
The contactor is direct action double break structure ,the contact system consists of upper and downward layout ,upper part has 3 pairs of contacts and current limiting resistance what become surge restrained device ,when closing current limiting contacts will make several millise cond at first ,then work contact is made closed later ,,current limiting contact will be released under the action of everlasting magnet and spring ,current limiting resistance is switched off ,please read contact inside electrical circle diagram
.
Power Contactor match for power capacitor bank 380v 43A three pole Main technical data
Item | Voltage | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-95 |
Electrical life 104 |
| 10 | 10 | 10 | 10 | 10 |
Rated current (380v)A |
| 17 | 23 | 29 | 43 | 63 |
Controllable capacity (kvar) | 220v | 6 | 9 | 10 | 15 | 22 |
380v | 12 | 18 | 20 | 30 | 44 |
Rated insulating voltage (V) |
| 500 | 500 | 500 | 500 | 500 |
Surge limiting capacity |
| 20le | 20le | 20le | 20le | 20le |
Operating conditions | Absorbing (85%-110%)US release (20%~75%)Us |
Coil burden (start up /lasting )VA |
| 70/8 | 110/11 | 110/11 | 200/20 | 200/20 |
Control capacity of auxiliary contact | AC 15 360VA DC-13 33W |
Weight |
| 0.44 | 0.63 | 0.64 | 1.4 | 1.5 |
Contactor model | A max | B max | C max | D max | E | F | Notes |
CJ19-25 | 80 | 47 | 124 | 76 | 34/35 | 50/60 | Screw mounting and 35mm railway available |
CJ19-32 | 90 | 58 | 132 | 86 | 40 | 48 |
CJ19-43 | 90 | 58 | 136 | 86 | 40 | 48 |
CJ19-63 | 132 | 79 | 150 |
|
|
| Except for screw mounting ,also can use 35 70mm railway available |
CJ19-95 | 135 | 87 | 158 |
|
|
|
Power Contactor match for power capacitor bank 380v 43A three pole advantage
1.20 years global leading profession manufacture of reactive power compensate
2. No power pollution
3.Zero voltage trigger no inrush current
4.Zero current resection without arc
5.It replace solid switch , solid switch replace ac contactor
6..Fast delivery : you will get the order when you need it
7.OEM is warmly welcome
8.Convenient : 45 minutes to wenzhou airport
Power Contactor match for power capacitor bank 380v 43A three pole function
1.CJ19-25-43 contactor have two pairs of auxiliary contacts ,
2.CJ19-63/95 has three pairs auxiliary contacts .contactor 's terminal have isolation cover .it is safety .coil connect terminal have V signal avoid to connect wrong .
3.CJ19-25/43 has screw installation way .and it also have other way din dial 35mm .and face cover have a discharge square sheet .and user can print the code on the sheet .
4.CJ19 63/95 only have din dial 35mm or 75mm
Power Contactor match for power capacitor bank 380v 43A three pole Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Power Contactor match for power capacitor bank 380v 43A three pole Packing information
1. Inside foam package ,outside strong paper package
2. 20pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose Power Contactor match for power capacitor bank 380v 43A three pole
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
We are the first one who been granted the transformer production license by National technical supervise bureau, Machinery industry Dept, national electrician committee.
The company holds the registered capital of RMB1 0, 000, 000.00, and her importing & exporting amount each year exceeds USD 1, 000, 000.00, The company is provided with the Management Dept, Marketing Dept, Engineering & Technology Dept, Quality Control Dept, Material Supply Dept, Production Planning Dept, Financial Dept and so on. Currently it has 309employees, including 6 engineers and 10 technicians. The company has a strong technical force, advanced production and test equipment and the world latest manufacturing process and technology to adequately meet the customer needs for quality.
Our products are not only largely meet with the demand of domestic customers, but also widely exported the markets of North and South America, Southeast Asia, Middle-east, Latin America, Africa, and Europe with a very good reputation.
Some products have been approved by CE and IEC certificates.
