| Price: | US $ 11-400/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| Physical features |
|
• Small form factor_Based on the 74-pin LGA Intel Moorestown form factor specification (25mm x 30mm x 2.35mm (nominal)) • Available with Embedded SIM (SIM integrated into device at component level) |
| Electrical features |
|
• Single supply voltage (VCC)_3.3V–4.3V • Two-piece, self-shielded (frame and lid)_No additional shielding required |
| Short Message Service (SMS) features |
|
• Send and receive (mobile originate and mobile terminate) @ Mobile-originated / terminated over CS and PS channels @ Mobile-originated SMS over PS falls back to CS if PS service is not available, or there is a PS network failure. • New message notification • Message sorting • Multiple recipients • Return voice call • Save contact details • Mobile-originated SMS e-mail • Mobile-originated / terminated SMS concatenation • Mobile-originated SMS e-mail concatenation • Receipt notification |
| Application interface features |
|
• NDIS NIC interface support (Windows XP, Windows Vista, Windows 7, Windows CEa, Linux) • Multiple non-multiplexed USB channel support • Dial-up networking • USB selective suspend to maximize power savings • AT command interface_(non-voice) 27.007 standard, plus proprietary extended AT commands • CnS_Sierra Wireless' proprietary Control and Status host interface protocol • Software Development Kits (SDK) including APIs (Application Program Interfaces) and drivers (core, device) for Windows, Windows CE, and Linux • Optional eSIM support |
| Phone book |
| Supports Release 99 phone book features |
| Packet mode features |
|
Dual-mode UMTS (WCDMA) / HSDPA / EDGE / GPRS operation • GPRS class B, multislot class 10 operation_Supports CS1–CS4 coding schemes • EDGE multislot class 12 operation_Supports MCS1–MCS9 coding schemes • UMTS (WCDMA) R99 data rates_384 kbps downlink, 384 kbps uplink • HSDPA @ Category 5/6 data rate_3.6 Mbps (peak rate) @ Category 12 data rate_1.8 Mbps • Circuit-switched data bearers_64 kbps (maximum) uplink and downlink |
| Connectivity / GSM features |
|
• Multiple (up to 16) cellular packet data profiles • Traditional modem COM port support for DUN, CSD, and AT commands (concurrent with NDIS) • Suspend / Resume • Sleep mode for minimum idle power draw • SIM application tool kit with proactive SIM commands • Enhanced Operator Name String (EONS) • Profile list. Typical carrier profiles are available in a drop-down list in Watcher; the user can select a profile rather than enter all the parameters. • Automatic GPRS attach at power-up • GPRS detach • GPRS detach only • Combined GPRS / IMSI detach; MS-initiated and network-initiated detach • Mobile-originated PDP context activation / deactivation • Support QoS profile @ Release 99 QoS negotiation_Background, Interactive, and Streaming @ Release 97_Precedence Class, Reliability Class, Delay Class, Peak Throughput, Mean Throughput • Static and Dynamic IP address. The network may assign a fixed IP address or dynamically assign one using DHCP (Dynamic Host Configuration Protocol). • PAP and CHAP support • PDP context type (IPv4). IP Packet Data Protocol context • RFC1144 TCP/IP header compression • Interaction with existing GSM services (MO/MT SMS voice calls) while: @ GPRS is attached, or @ In a GPRS data session (class B GPRS suspend / resume procedures) • Support for EAP-SIM authentication and PC / SC. EAP-SIM is available through: @ The API @ AT commands @ The PC / SC interface |
| Voice mode features (SL8080 / 82 / 84 only) |
|
Supports: • All GSM vocoders, Enhanced Full Rate (EFR), Full Rate (FR), Half Rate (HR), and WCDMA Adaptive Multirate (AMR) encoders • MO and MT calling • Echo cancellation • Emergency calls (112, 110, 911, etc.) • Incoming call notification • TTY/TDD compatibility through microphone/speaker connections using the audio interface |
| GPS features (SL8080 / 82 / 84 only) |
|
Provides: • Standalone GPS functionality • gpsOneXTRA™ • A-GPS features • NMEA support |
|
Note: GPS specifications are preliminary targets that are subject to change without notice. Actual GPS functionality is dependent on the firmware version, and on module configuration. |
| Network selection |
|
• Network selection procedures described in 3G 22.011, R5 (June 2005), 3G 23.122 (June 2005), and 3G 43.022, R4 • RRC connection reject message to redirect from a 3G system to a 2G system, according to 25.331, R5 (June 2004) • A CPHS Customer Service Profile-like feature [PLMN Mode bit] on a USIM / SIM that hides network selection related menus • Initial HPLMN scan at two minutes after power on • An HPLMN rescan irrespective of the serving MCC • Selective disabling of any 2G or 3G frequency band • Equivalent PLMN • Network selection generally within 30 seconds of power up • Enhanced network selection (ENS) |
| RF features |
|
• Quad-band GSM/GPRS/EDGE (850 MHz, 900 MHz, 1800 MHz, 1900 MHz) • Dual-band UMTS WCDMA FDD @ SL8080/SL8081: 850 MHz, 1900 MHz @ SL8082/SL8083: 900 MHz, 2100 MHz @ SL8084/SL8085: 850 MHz, 2100 MHz • GPS (1575.42 MHz) (SL8080/82/84 only) |
| Environmental features |
|
Operating temperature ranges • Normal use (3GPP compliant): -20°C to +65°C • Industry extended temperature range (non-3GPP compliant): |
| Prod Model: | sl8080 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

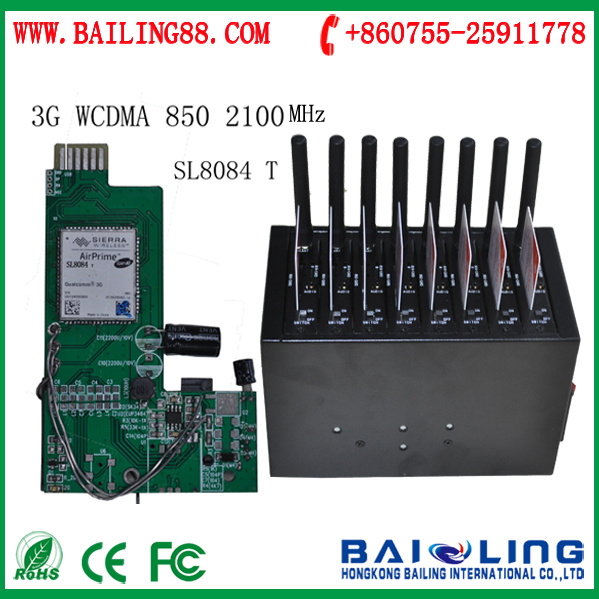

| Module: | Wavecom Sierra SL8080 8081 8083 8084 8085 |
| WCDMA Modem: | 850/1900MHz,900/2100MHz or 850/2100MHz Optional |
| Support: | SMS,MMS,Ussd,Stk,Email,Fax |
| Open At: | Support |
| Power: | 110-250V |
| SMS Sending: | 4800-7200 SMS Per Hour |
| Type: | External |
| Interface Type: | USB |
| Transmission Rate: | 3.6Mbps |
| Application: | Household |
