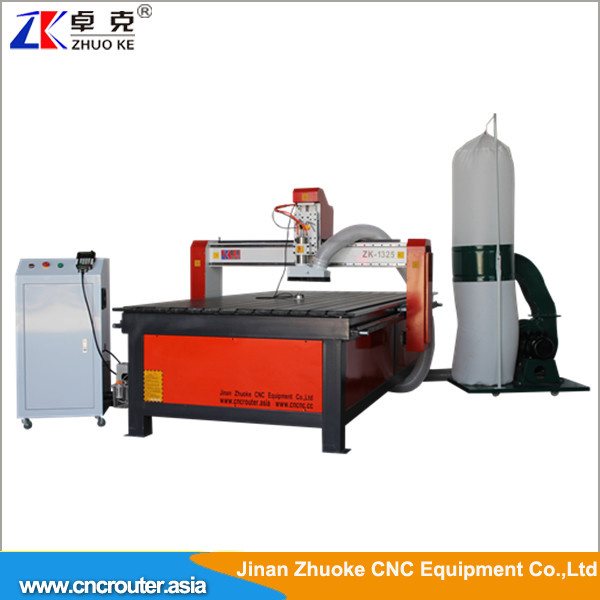

good price wood cnc carving machine router with oilling system (ZK-1325)
Application:
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Machine's feacture:
1, 2.2KW water cooling spindle,more powerful and good effciency
2, All axies Taiwan PMI square guide rail,economical ,also can bear heavy weight
3, Z axies Taiwan TBI ball screw ,good quility and precise ,make sure use long time
4, Tool sensor ,can help you set the Z axies working origin point ,make sure high precise.
5, Independent control carbient ,easy check and convenicent.
6, DSP offline control system,very convenicent and easy learn.
7, Auto oilling system ,set the oilling time and oil mass on the computer ,and it can automitically oilling the ball screw ,guide rail ,coupling and etc. good performance.
8, Gear rank ,for Y axies ,can bear heavy weight ,make sure the fast speed.
9, 220V 2.2KW dust collector ,suck the dust ,keep the machine clean and tidy.
A, Stepper motor and leadshine driver ,very economical and good performance.
B, DSP controller ,just connect the DSP handwhell , can control the machine,
C,Sunfar inverter ,it can control the spindle speed and save energy.
D, Round Transformer ,change the local power voltage into 40-60V ,and supply the Leadshine driver.
Samples:
After-sale services:
1. One year for whole machine, 6 months for spindle under correct operation
2. Life time free maintenance service.
3. Free training course at our factory with professional engineers.
4. Replace parts for free during warranty(no human damage)
5.24 hours online service each day, free technical support with different languages.
6. We provide door to door technical support, if necessary.
Payment method & shipping:
# T/T ,ESCROW,WESTERN-UNION
# Strong plywod package , shipping by sea.
Other model:
ZK-1215 1200*1500*150mm ZK-1218 1200*1800*150mm
ZK-1224 1200*2400*150mm ZK-1525 1500*2500*200mm
ZK-1530 1500*3000*200mm ZK-2030 2000*3000*200mm
Parameter:
Items | Parameter |
Spindle power | 2.2KW water cooling spindle ER |
X,Y,Z axies working size | 1300*2500*120mm |
Spindle speed | 0-24000rpm/min |
Empty travelling speed | 0-25000mm/min |
Cutting speed | 0-8000mm/min |
Engraving speed | 0-10000mm/min |
Machine accuracy | 0.03mm |
Resetting accuracy | 0.05mm |
Diagonal error | 0.5mm |
Resolution ratio | 0.005mm |
Moving method | Gantry moving |
Machine's structure | Cast iron body , cast Aluminum gantry |
Working table | Aircraft aluminium T slot with PVC layer |
Guide rail | Taiwan PMI liner squire guide rail |
X,Y,Z axies Transmission | X,Y,axies gear rank |
Z axies Taiwan TBI ball screw |
Driving system | Stepper motor and leadshine driver |
Control system | DSP offline |
(Options: Mach3 , PCI Nc-Studio ) |
Designing software | Artcam 2008 |
Carving Instructions | G code *Uoo *mmg *plt *HPGL |
Voltage | 220V ,50/60Hz,single phase |
Certificate | CE |
Accessories | Water pump(1), tools (15), power line, USB line, fixtures(6), user manual, |
software CDs, |
spanners(2), brush,collets(3), double faced adhesive tapes (2),etc. |
