| Price: | US $ 91.4/Set |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| IR Dome Camera (BE-DIB Series) | |||||||
| Feature: 1/2.8,1/3,1/4 Sony CCD/CMOS 420-1200TVL(Low Illumination, DWDR, OSD, DNR, PM, MD) IR LED: ¢5X24PCS IR Range:20M Plastic home IR dome camera Built-in 3.6mm/F2.0 Board Lens 2 years warranty | |||||||
| Model No. | BE-DIB70S | BE-DIB80M | BE-DIB60 | BE-DIB42 | |||
| Image Sensor | 1/3"Sony | 1/3"CMOS | 1/3"Sony | 1/3"Sony | |||
| ICX811AK CCD | PC3089 | ICX639BK CCD | ICX633BK CCD | ||||
| Resolution | 700TVL, Low Illumination, DWDR, OSD, DNR, PM, MD | 800TVL | 600TVL, Low Illumination, DWDR, OSD, DNR, PM, MD | 420TVL | |||
| Pixels | P: 976 (H)×582(V) | 762 (H)×504(V) | P: 795 (H)×596(V) | P: 500(H)×582(V) | |||
| N : 976 (H)×582 (V) | N: 811 (H)×508 (V) | N: 510(H)×492(V) | |||||
| TV Standards | PAL/ NTSC | ||||||
| IR LED | 24PCS of ¢5mm IR LED | ||||||
| IR Distance | 20m | ||||||
| Lens | Built-in 3.6mm/F2.0 Board Lens | ||||||
| Sync System | Internal | ||||||
| Illumination | 0.01Lux/F2.0 | ||||||
| IR Power On | CDS Auto Control | ||||||
| S/N Ratio | ≥65dB (AGC OFF) | ≥54dB (AGC OFF) | ≥48dB (AGC OFF) | ||||
| Gamma Correction | 0.45 | ||||||
| Video Output | Composite Signal (1.0Vp-p, 75Ω) | ||||||
| Scanning System | PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec | ||||||
| Electronic Shutter | Auto: PAL 1/50-1/100,000Sec; NTSC 1/60-1/100,000Sec | ||||||
| Operation Temp | -10°C ~ +50°C, RH: 95% Max | ||||||
| Storage Temp | -20°C ~ +60°C, RH: 95% Max | ||||||
| White Balance | Auto | ||||||
| Power Supply | DC12V | ||||||
| Dimension | ¢92 x 64(H) mm | ||||||
| Weight | 400g | ||||||
| Model | BE-9604H | |
| System | Main processor | HIS chipset Hi3515A |
| Display | Display screen | 1/4 screen |
| Video | Video standard | PAL(625 lines,50fps);NTSC(525lines,60fps) |
| Monitor quality | Monitor:D1;VGA:1080P ;HDMI:1080P | |
| Playback quality | Max support 1080P | |
| Encode capability | 4CH D1 real-time/ 4CH 960H | |
| Decode capability | 4CH D1/ 4CH 960H | |
| Motion detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) | |
| Audio | Audio compression | G.711A |
| Record and playback | Record mode | Manual,alarm,motion detection,timing |
| Local playback | Support 4CH D1/ 4CH 960H playback synchronously | |
| Video search | Time,date,event,channel search | |
| Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; audio:691.2M/day*channel |
| Video storage | Local HDD ,Network | |
| Back up mode | Network backup,USB portable HDD,USB DVD-RW | |
| Interface | Video input | 4CH BNC |
| Video output | 1CH BNC,1CH VGA,1CH HDMI | |
| Audio input | 4CH RCA | |
| Audio output | 1CH RCA | |
| Network port | RJ45 10M/100M self-adaptive Ethernet port | |
| PTZ control | 1 RS485;support multi kinds of PTZ Protocol | |
| USB port | 2*USB2.0 | |
| HDD port | 1 SATA(max support 4TB) | |
| Wireless port | 3G,WIFI(extension via USB port) | |
| CMS | CMS software | Support (up to 255 DVR simultaneously) |
| other | Tour | Support |
| Remote controller | Support | |
| Working temperature | -20ºC-60ºC | |
| Working humidity | 10%-90% | |
| Power | 12V/3A | |
| Dimension | 260(W) x 45(H) x 234(D) |

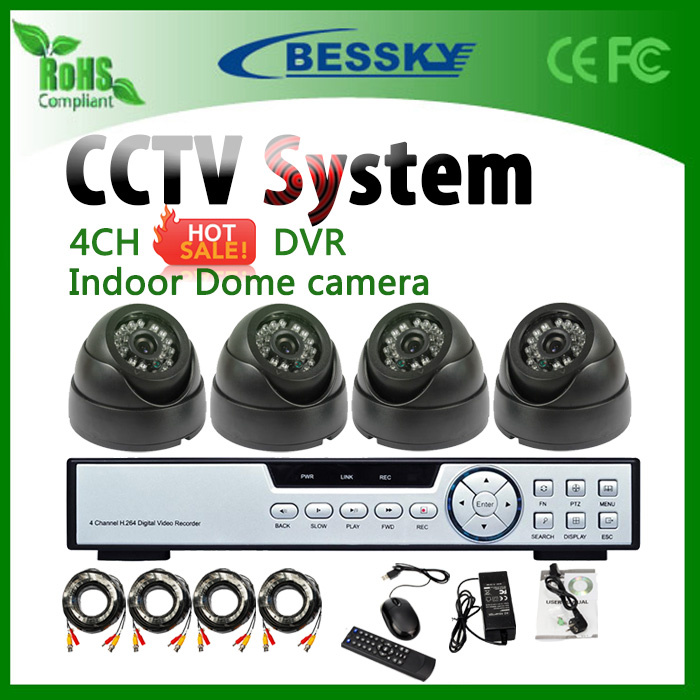

| Prod Model: | BE-9604H4IB |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DVR Kits: | 4CH |
| DVR Resolution: | 4CH D1 Real-Time/ 4CH 960h Recording |
| Audio: | 4CH RCA Audio Input/1CH RCA Output |
| P2p Function: | Support |
| Camera IR LED: | 24 PCS* 5mm IR-LED |
| IR Range: | 20m |
| Camera Lens: | 3.6 Mm Lens |
| DVR: | 4CH DVR |
| Compression Format: | H. 264 |
| Video Output: | VGA /BNC / HDMI |
| Type: | Monitoring System |
| Application: | All-Round Monitoring |
| Feature: | Auto BLC |
| Video Capture System: | Dome Camera |
| Video Transmission System: | Coaxial-Cable Transmission |
| Software Function: | Monitoring |
| Software Usage: | Mobile Phone Monitoring Software |
| Client Software: | Client Software |
| Model: | CCTV |
| Sensor: | CCD |
| Technology: | Infrared |
| Kind: | Fixed Lens |
| Horizontal Resolution: | 420tvl/600tvl/700tvl/800tvl |
