Product Specifications
| Prod Model: |
4 fold |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cultural Paper |
| Certification: |
CE |
| Condition: |
New |

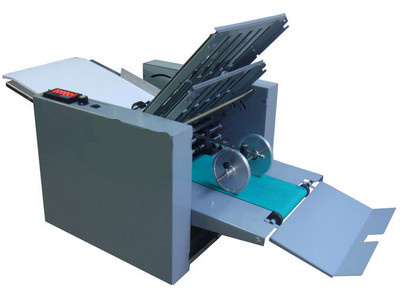

Product Description
1. Imported infrared sensor switch, high separation precision, without double feeding.
2.Feed angle can be adjusted by fine-tuning knob to prevent deflection feed
3. Four stalls feed pressure adjustable, to meet different paper specifications feeding smoothly,
and suitable for coated paper folding;
4. Using a special folding roller, high wear resistance,anti-static(imported rubber roller)
5. Folding plate with quick adjustment knob and fine adjustment knob, user to adjust folding quickly,
the process is very simple! the folding plate is also a skew adjustment function;
6.Equipped with a counter for counting the number of folding, reaches the set value is automatically
shut down;
7. The paper pressing wheel is adjustable, adjust pressure according to the finished paper size , the paper received more orderly;
8.This machine adopts advanced all belts gearless drive system, low noise;
9.Having a circuit overload protection, automatic power off when overload and shut down.
|
Itern |
Folding machine |
|
Feeding Method |
Friction feeding |
|
Number of folding plate |
Folding plates |
|
Suitable paper size (original) |
Max.;310(W)x720(L)mm
min.:72(W)x80(L)mm (specially can be 30mm for width) |
|
Paper thickness |
45gsm-157gsm |
|
Paper quality |
Fine quality paper, rough paper, Recycled paper,
coated paper |
|
Process speed |
160 sheets/min (A4 80 gsm, single fold) |
|
Paper loading capacity |
300 sheets |
|
Folding stopper |
Manual setting |
|
Folding rollers pressure |
Adjustable,fine tunning outside(new design of
pressure system) |
|
Folding type |
Single fold,double fold,letter fold,accordion fold (Z fold),
Irregular accordion fold ,gate fold ,Accordion fold , Kwan-yin fold ,W fold ,Roller fold etc. |
|
Cross fold |
Equipped with indentation structure,cross fold
can be fold by indentation. |
|
Power /power supply |
AC220V /50-60Hz 1.1A |
|
Dimensions |
1030 (W)× 530(D)× 570 (H)mm (in operation) |
|
Net weight |
50KGS |
