Product Specifications
| Prod Model: |
A-500-5 |
| Markets: |
Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Size: |
241X124X65mm |
| Output Voltage: |
5V |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Certification: |
CE |
| Output Power: |
500W |
| Input Voltage: |
180-260VAC |
| Brand: |
Czcl |
Product Description

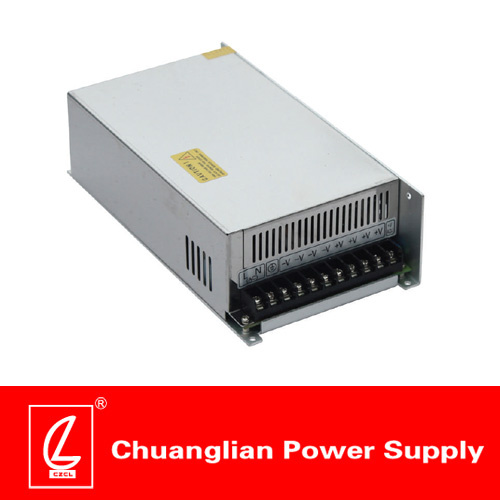

Product Model:A-500-5
Features:
Low cost, high reliability
Built-in EMI filter
Low output ripple&noise
Protections: Over load/ Short circuit
1 year warranty
CASE: 814 Size: 241x124x65mm
AC Input voltage range...................................180-260VAC
Input frequency................................................47-63HzAC Inrush current.............................................Cold start, 60A/ 230VACDC adjustment range..................................... ±10% rated output voltageLine regulation(full load)................................. ≤0.5%Output over load protection.............................110%-150% shut off, AC recycle to re-startRise, hold up time............................................50mS, 20mS at full load (typical)Withstand voltage............................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 minWorking temperature......................................-10ºC to + 40ºC @100%, +60ºC@ 60% loadStorage temperature.......................................-20ºC~ +85ºC,20%~ 95%RH (non-condensing)Safety standards..............................................Design refer to GB4943,UL60950-1,EN60950-1EMC standards................................................Design refer to GB9254,EN55022 class ACooling method................................................Forced air cooling by built-in DC fan | Product model | DC output | Load regul. | R&N | Efficiency |
| A-500M-5 | 5V, 80A | 2 % | 100mV | 76% |
Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

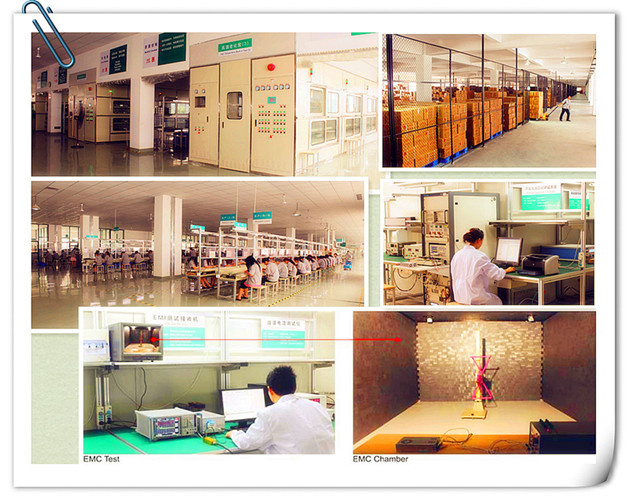

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
