Price: | US $ 7.3-8.3/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 300/Piece |
Pay Type: | L/C,T/T |
Prod Model: | HTS-50FE-5 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: | 129X98X40mm |
Output Voltage: | 5V |
Color: | Silver |
EMC Standard: | En55022 Class B |
Output Type: | Single |
Warranty: | 2 Years |
Connection Mode: | Series Switching Power Supply |
Starting Mode: | Self-excited Switching Power Supply |
Voltage Regulating Mode: | Width Modulation Type |
Power Supplying System: | Terminal Power Distribution Equipment |
Certification: | RoHS |
Output Power: | 50W |
Input Voltage: | 85-264VAC |
Brand: | Haitaik |
Low cost, high reliability
Built-in EMI filter
Low output ripple&noise

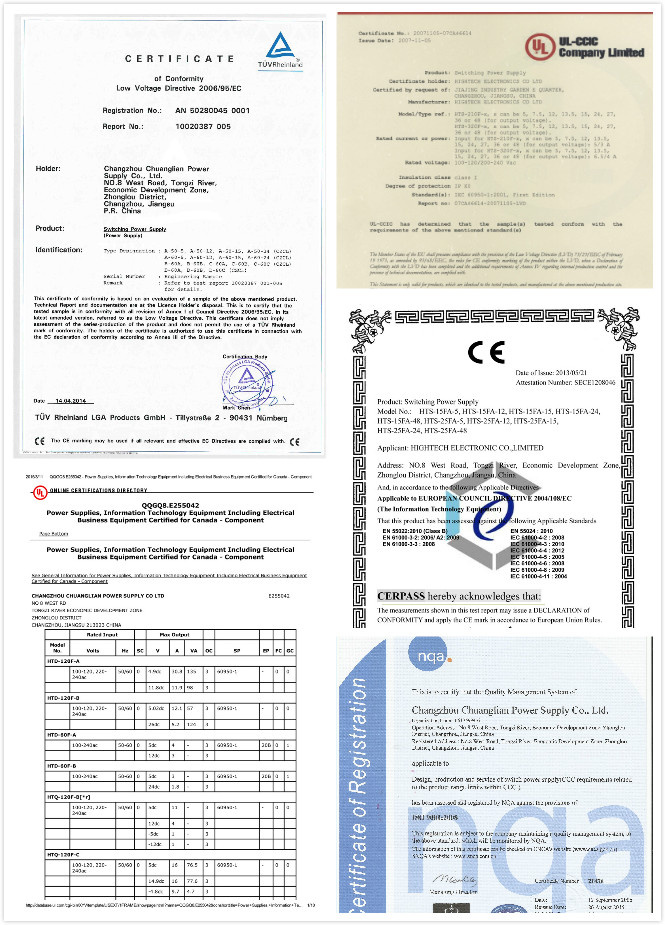

Approvals: UL,CE
Protections: Over load/ Short circuit
2 years warranty

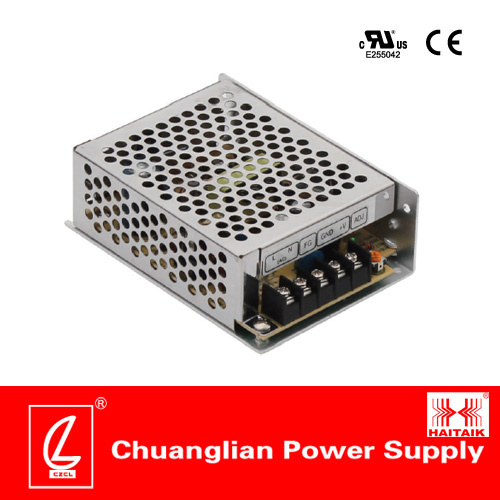

CASE: 503 Size: 129x98x40mm
Product model | DC output | Load regul. | R&N | Efficiency |
HTS-50FE-5 | 5V, 10A | 2 % | 100mV | 74% |
HTS-50FE-12 | 12V,4.2A | 1% | 120mV | 77% |
HTS-50FE-15 | 15V, 3.4A | 1% | 150mV | 78% |
HTS-50FE-24 | 24V, 2.2A | 1% | 200mV | 79% |
HTS-50FE-48 | 48V,1.1A | 1% | 240mV | 79% |
