Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 300/Piece |
Pay Type: | L/C,T/T,Western Union |

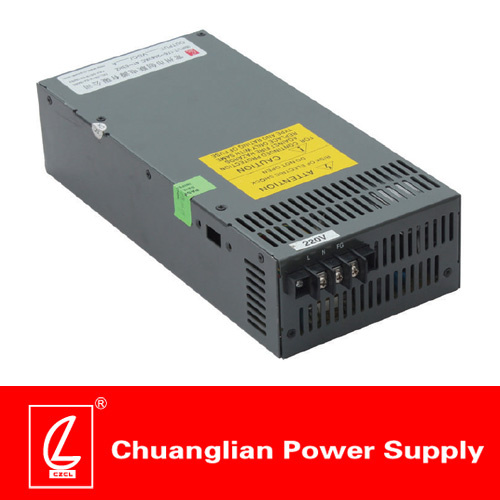

Prod Model: | A-800 |
---|---|
Markets: | Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
Size: | 291X133X68mm |
Output Voltage: | 12V, 24V |
Output Type: | Single |
Warranty: | 1 Year |
Certification: | CCC |
Output Power: | 800W |
Input Voltage: | 180-260VAC |
Brand: | Czcl |
AC Input voltage range...................................180-260VAC
Input frequency................................................47-63Hz
AC Inrush current.............................................Cold start, 60A/ 230VAC
DC adjustment range..................................... ±10% rated output voltage
Line regulation(full load)................................ ≤0.5%
Output over load protection.............................110%-150% shut off, AC recycle to re-start
Output over voltage protection........................ 115%-150% of rated output voltage
Rise, hold up time.............................................50mS, 20mS at full load (typical)
Withstand voltage...............................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min
Working temperature........................................-10ºC to + 40ºC @100%, +60ºC@ 60% load
Storage temperature..........................................-20ºC~ +85ºC,20%~ 95%RH (non-condensing)
Safety standards..................................................Design refer to GB4943,UL60950-1,EN60950-1
EMC standards.....................................................Design refer to GB9254,EN55022 class A
Cooling method....................................................Forced air cooling by built-in DC fan
Product model | DC output | Load regul. | R&N | Efficiency |
A-800-12 | 12V,66A | 1% | 150mV | 80% |
A-800-24 | 24V,33A | 1% | 200mV | 85% |
