Product Specifications
Prod Model: |
AL2000(1500) |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Al2000 |
Working Medium: |
Compressure Air |
Port Size: |
G1/4" |
Working Pressure: |
0.1~1.0mpa(14.5~145psi)(1.0~10bar) |
Proof-Pressure: |
1.5mpa(217.5psi)(15bar) |
Working Temperature: |
-10~60°c |
Flowing For 40um (L/Min): |
2000 |
Body Material: |
Aluminum Alloy |
Type Of Mounting: |
by The Thread |
Assembly Position: |
High-Strength Plastic |
Type: |
Source Treatment unit |
Product Description
Specifications

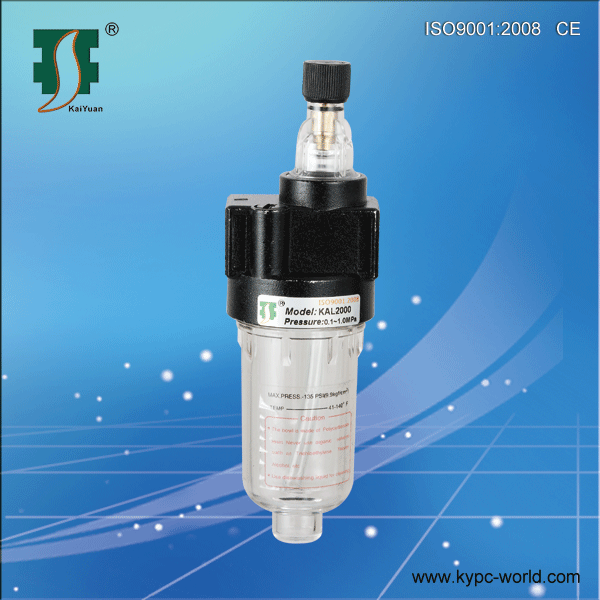

AL2000(1500) lubricator,pneumatic lubricator,air lubricator,automatic lubricator,airtac lubricator
AL2000(1500) lubricator,pneumatic lubricator,air lubricator,automatic lubricator,airtac lubricator
# Product introduction
1.High-strength iron protective cover.
2.Thread was machining by CN,clean and beautifull.
3.Strang then the glass material so that the max proof-pressure of up to 1.6MPa.
4.Tramsparant checking window trickle oil quantity is visual.
5.Improved throttle valve and operating knob makes the oil amout regulating simpler.
6.The body was diecasting in high-strength aluminum alloy.
Model |
AL1500 |
AL2000 |
Working medium |
Compressure air |
Port size |
G1/8" |
G1/4" |
Working pressure |
0.1~1.0MPa(14.5~145Psi)(1.0~10bar) |
Proof-pressure |
1.5MPa(217.5Psi)(15bar) |
Working temperature |
-10~60°C |
Flowing for 40um (L/min) |
1500 |
2000 |
Body material |
Aluminum alloy |
Type of mounting |
By the thread |
Assembly position |
Vertical ±5° |
Bowl guard material |
High-strength plastic |
Protective cover |
available |
MAX storage oil (cm³) |
25 |
Weight (kg) |
0.17 |
