Shanghai Lanbao Inductive Sensor
Analog Output type
----------------------------------------------------------------
High reliability, High sensitivity, High linearity, Pinpoint accuracy
About products:
----------------------------------------------------------------
1. Shape code: Cylindrical, Rectangular optical.
2. Housing material: Nickel-copper Alloy, PBT optical
3. Connection: 2m PVC cable, M12 connector, Terminal connector optical.
4. Ambient temp.: -25~70C
5. Power display: Yellow LED lighting.
6. Ingress Protection Rating: IP67.
Dust completely unable to enter object.
No harmful effects happen when housing immerses in 1m deep water temporarily at room temperature.
7. Non-contact detection. Effectively avoids abradion,safe and reliable. Rarely abrasive wear.
8. Built-in ASLC ensures quick response,high frequency, stable performance.
9. Analog Output:
It will generate 0-10V,0-20mA standard analog signal at the terminal with the vibration of the sensing distance, widely used for distance measuring,thickness measuring and selective measuring
10. Complete range of specification:
Cylinder series: 0.4mm-15mm
Rectangular serise:2mm-50mm.
11. Surge and reverse polarity protection
12. Certification: CE, UL
About Inductive sensors:
----------------------------------------------------------------
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function
Advantage of Lanbao:
----------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2. 2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world. For example: 11/2014, China International Industry Fair. 11/2014, SPS/IPC/DRIVES Electric Automation. Lanbao are knewn by customers and users.
4. Lanbao provide customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5.All of Lanbao sensors through the CE cetification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|

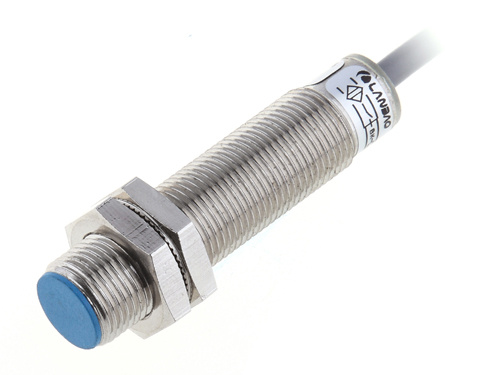

Model |
LR12X |
|
Specification(mm) |
M12*1*43, M12*1*46 |
|
Mounting |
Flushed/Non-flushed |
|
Sensing distance |
0.4~2mm, 0.8~4mm |
|
Supply voltage |
15-30VDC 3/4 wires |
|
Output |
a. 0-10V, b. 0-20mA, c. 4-20mA, d. 0-10V+0-20mA (a,b,c,d are optical) |
|
Current consumption |
<20mA |
|
Linearity |
<+/-5% |
|
Repeated accuracy |
<+/-3% |
|
Frequency |
200Hz/ 100Hz |
|
Output display |
Yellow LED light |
|
Polarity protection |
Yes |
|
Insulation pressure resistance |
1000V/AC,50/60Hz,60s |
|
Short-circuit protection |
/ |
|
Ambient temperature |
-25~+70C |
|
Ambient humidity |
35~95% |
|
Protection degree |
IP67 |
|
Housing material |
Nickel-copper Alloy |
|
Connection |
2m PVC Cable/ M12 connector |
|
Certification |
CE, UL |
|
