Shanghai Lanbao Sensor
----------------------------------------------------------------
High reliability, High sensitivity, High linearity, Pinpoint accuracy
Lanbao provides you all kinds of sensors: Inductive proximity sensor, Capacitance proximity sensor, Photoelectric sensor, Flow sensor, Pressure sensor, Tension sensor, Sensor accessories, and so on.
LANBAO Photoelectic sensors----Feature:
----------------------------------------------------------------
----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A
LANBAO Photoelectic sensors----Variety
----------------------------------------------------------------
-Diffuse reflection type
-Retro reflection type
-Through beam type
-Focus reflection type
-Polarized reflection type
-Background suppression type
Advantage of Lanbao:
----------------------------------------------------------------
1. Operating for 17 years in Sensor market.
Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/IPC/DRIVES Electric Automation.
Lanbao are knewn by customers and users.
4. Lanbao provide customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE cetification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|

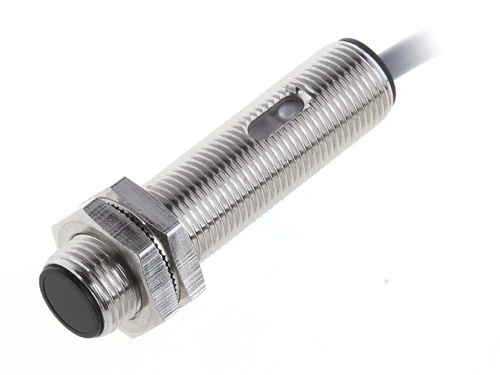

----Photoelectric Sensor Spec. Sheet ---- |
|
Model |
PR12-BC15D |
|
Sensing distance |
15cm |
|
|
sensing distance adjustable |
|
Output |
PNP/ NPN NO/ NC |
|
Supply Voltage |
10-30V DC 3wires |
|
Light |
Infrared LED (880nm) |
|
Response time |
<8.2ms |
|
Output display |
Yellow LED lighting |
|
Surge protection |
Yes |
|
Short circuit protection |
Yes |
|
Ambient Temperature |
-15~+55C |
|
Housing material |
Nickel-copper alloy |
|
Protection degree |
IP67 |
|
Connection |
2m PVC Cable |
|
Certification |
CE, UL |
|
Shanghai Lanbao Sensing Technology Co., Ltd. |
Shanghai lanbao sensor technology Corporation was founded in 1998, the company is located in Shanghai lanbao Science Park, the park covers an area of 33, 000 square feet and employs more than 360 people, is a leading supplier of industrial automation, measuring and control sensors, instrument Industry Association of China, Shanghai high-tech enterprise.
Lanbao sensor technology limited liability company main business for industrial measurement and control sensor research and development, production, sale and application, to provide standardized and customized industrial measurement and control sensors and industrial measurement and control system. Series of products have passed CCC certification, CE certification, UL certification and the certification of quality management system certification, and has implemented the EU RoHS environmental directives, including inductive sensors, photoelectric sensors, capacitive sensors with ceramic thick film pressure sensors, more than more than 30 series, more than 3, 000 kinds of specifications. The technical performance of the industry-leading position, which products reach the international advanced level. Lanbao relies on its own technological advantages for the customer of industry control system meets the requirements.
Lanbao always adhere to the advanced technology, flexible system configuration, stability, safety and energy saving operation, hassle free professional services in a timely manner, to create ideal value for investment in the industry.
