Product Specifications
| Prod Model: |
ACAC1-40A 240V 2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Acac1-40A 240V 2p |
| Poles: |
1p/2p/3p/4p |
| Coil Voltage 50/60Hz: |
24V/120V/208V/240V/277V |
| Full Load AMPS: |
20A/40A |
| Line Voltage: |
240V/277V/480V/600V |
| Enclosure: |
Open |
Product Description
Description:

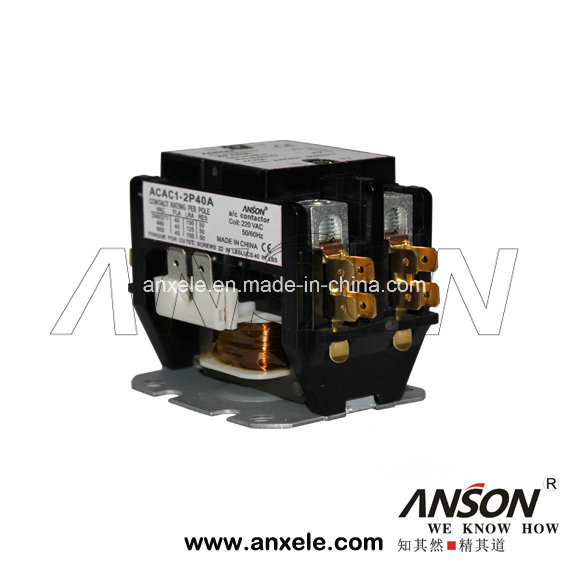

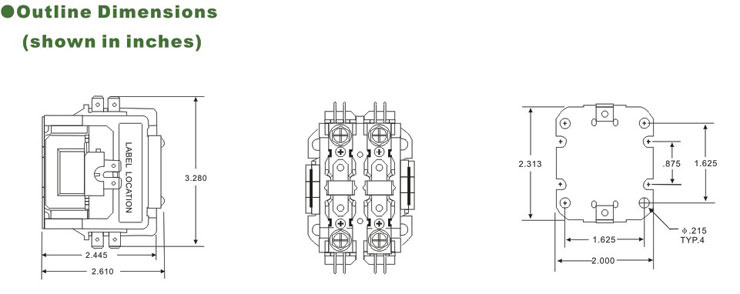

ACAC1 series general purpose magnetic contactors.
ACAC1 definite purpose contactors (mainly designed for 50Hz or 60Hz, when the AC-8A use category fixed working voltage is 240V or 277V, the nominal current up to the 40A electric circuit, is suitable for the starting and the control single-phase motor (or compressor) and other single-phase loads. These series GP magnetic contactors conform to IEC60947, UL508 and GB14048 standard.
Common definite purpose controls applications include:
Heating, Ventilating, Air Conditioning and Refrigeration.
Welding Industry
Food and Beverage Industry
Pool and Spa / Pumps and Compressors
Hoist and Cranes / Conveyors
| Coil rating | 1 pole contactors | 2 pole contactors |
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 18 | 420 | 1800 | 2500 | 11 | 237 | 1000 | 1600 |
| Maximum pick up voltage | 18 | 88 | 177 | 221 | 18 | 88 | 177 | 221 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 50-165 |
| Nominal rush Va@50Hz | 31 | 31 | 31 | 31 | 33 | 33 | 33 | 33 |
| Nominal rush Va@60Hz | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| Nominal rush Va@50Hz | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| Nominal rush Va@60Hz | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Maximum coil voltage | 30 | 132 | 264 | 300 | 30 | 132 | 132 | 300 |
| Coil rating | 3 pole contactors | 4 pole contactors |
| Nominal coil voltage | 24 | 120 | 208/240 | 277 | 24 | 120 | 208/240 | 277 |
| Nominal coil resistance Ohms | 7 | 180 | 720 | 900 | 6 | 150 | 600 | 750 |
| Maximum pick up voltage | 18 | 88 | 177 | 220 | 18 | 88 | 177 | 220 |
| Maximum drop out voltage | 6-15 | 20-70 | 40-140 | 50-165 | 6-15 | 20-70 | 40-140 | 65-185 |
| Nominal rush Va@50Hz | 65 | 65 | 65 | 65 | 62 | 62 | 62 | 62 |
| Nominal rush Va@60Hz | 60 | 60 | 60 | 60 | 59 | 59 | 59 | 59 |
| Nominal rush Va@50Hz | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 |
| Nominal rush Va@60Hz | 6 | 6 | 6 | 6 | 7 | 7 | 6 | 7 |
| Maximum coil voltage | 30 | 132 | 264 |
