Product Specifications
| Prod Model: |
TAT-SSD-02 |
| Markets: |
North America,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Function: |
Anti-Copy/Anti-Deleting/Anti-Changing |
| Enryption: |
Hardware Encryption |
| Installation: |
Internal |
| Interface Type: |
Mini PCI-E |
| Application: |
Desktop |
| Type: |
Solid State Disk |
| Capacity: |
4GB ~256GB |
Product Description

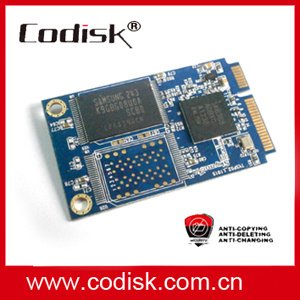

PCIe SSD with copy protection and hardware encryption function
Specification: 1. Anti- copying, anti-printing, anti-formatting & anti-deleting.
2. Hardware Encryption.
Model MSATA SSD(Mini PCIE)
Capacity 4GB~64GB(Max to 256GB)
Power Requirement 3.3V
Interface SATA II MINI PCI-E
Transfer Mode SATA 3.0Gbs
Dual channel Read-200MB/sec(MAX)
Write-110MB/sec(MAX)
Single channel
Power Consumption 400mA(max. )
Operating Temperature 0C to +70C(Standard)/-40C ~ +125C(Industrial)
Operating Humidity 10% to 95%, (30C Max. Wet Bulb Temp)
MTTF 2, 000, 000 hours
Vibration 20Grms, 7 ~ 2000Hz
Data Retention 10 years without requiring power support
ECC 4 Symbols Correction per 512 bytes, RS-ECC
Wear Leveling Dynamic Wear-Leveling
Safety Certification CE, FCC
HSF Guaranty RoHS, REACH SVHC
Dimension Length 51.18± 0.20 mm
Width 31.11 ± 0.20 mm
Thickness 3.46± 0.30mm
PS: 1)Anti-copy function and hardware encryption function are available.
2)The anti-copying SSD can be only reading, not copying, protecting your intellectual property & your patent knowledge from being stolen.
3)The PCB size can be designed as customers' requirements.
Shenzhen TAT Electronics Co., Ltd. was established in 1997. As one of the first worldwide factories to manufacture Flash Drives, we engaged in development and production of software protection dongles. copy protection USB flash drives, encryption SSD hard drive, DOM flash disk, aiti-privacy memory cards, software protection dongles,etc.
We have customers in Korea, Germany, the United States, Argentina, Iran and other countries.
Business policy:
Our factory is in compliance with ISO9001.
Our quality control system through hi-tech equipment and standard working procedures ranging from raw material, production, assembly, sales to after-sales service, ensures all products are in compliance with CE, FCC, RoHS as well as customers' requirement/ specifications.
We are capable to develop and manufacture OEM/ODM projects.
For the detail, please consult our Marketing & sales team.
