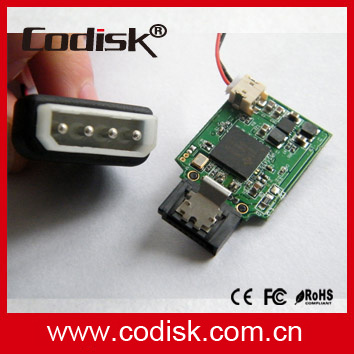

Model SATA Flash Disk
Capacity "2GB~32GB
(Ultra up to 64GB)"
Power Requirement 5V
Interface SATA II 7pin
Transfer Mode PIO Mode: 0~6
MDMA Mode: 0~4
Ultra DMA Mode: 0~4
Dual channel "Read-100MB/sec
Write-50MB/sec"
Single channel
Power Consumption "Auto stand-by mode
170mA(max. )"
Operating Temperature "0C to +70C(Standard)/
-40C ~ +85C(Industrial)"
Operating Humidity 10% to 95%, (30C Max. Wet Bulb Temp)
MTTF 2, 000, 000 hours
Vibration 20Grms, 7 ~ 2000Hz
Data Retention 10 years without requiring power support
ECC 4 Symbols Correction per 512 bytes, RS-ECC
Wear Leveling Dynamic Wear-Leveling
Safety Certification CE, FCC
HSF Guaranty RoHS, REACH SVHC
Dimension Length 39.4 ± 0.2 mm
Width 25 ± 0.2 mm
Thickness 6.5 ± 0.2mm
Shenzhen TAT Electronics Co., Ltd. was established in 1997. As one of the first worldwide factories to manufacture Flash Drives, we engaged in development and production of software protection dongles. copy protection USB flash drives, encryption SSD hard drive, DOM flash disk, aiti-privacy memory cards, software protection dongles,etc.
We have customers in Korea, Germany, the United States, Argentina, Iran and other countries.
Business policy:
Our factory is in compliance with ISO9001.
Our quality control system through hi-tech equipment and standard working procedures ranging from raw material, production, assembly, sales to after-sales service, ensures all products are in compliance with CE, FCC, RoHS as well as customers' requirement/ specifications.
We are capable to develop and manufacture OEM/ODM projects.
For the detail, please consult our Marketing & sales team.
