Product Specifications
| Prod Model: |
Y&D7200N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Range X/Y/Z(Mm): |
200/200/50 |
| Program Display: |
Teach Pendant LCD |
| Power Supply: |
AC90~260V320W |
| Dimensions: |
385*380*500 |
| Robot Weight: |
23kg |
| Load Y Axis/Z Axis: |
5kg/3kg |
| Motor System: |
Micro Stepping Mmotor |
| Resolution: |
0.01mm/Axis |
| Automatic Grade: |
Automatic |
| Gluing Mode: |
Automatic Paper Paste Gluing Machine |
| Packaging Material: |
Leather |
| Glue Type: |
Hot Melt Adhesive |
| Application: |
Leather Belt |
| Driven Type: |
Electric |
| Packaging Type: |
Cartons |
Product Description

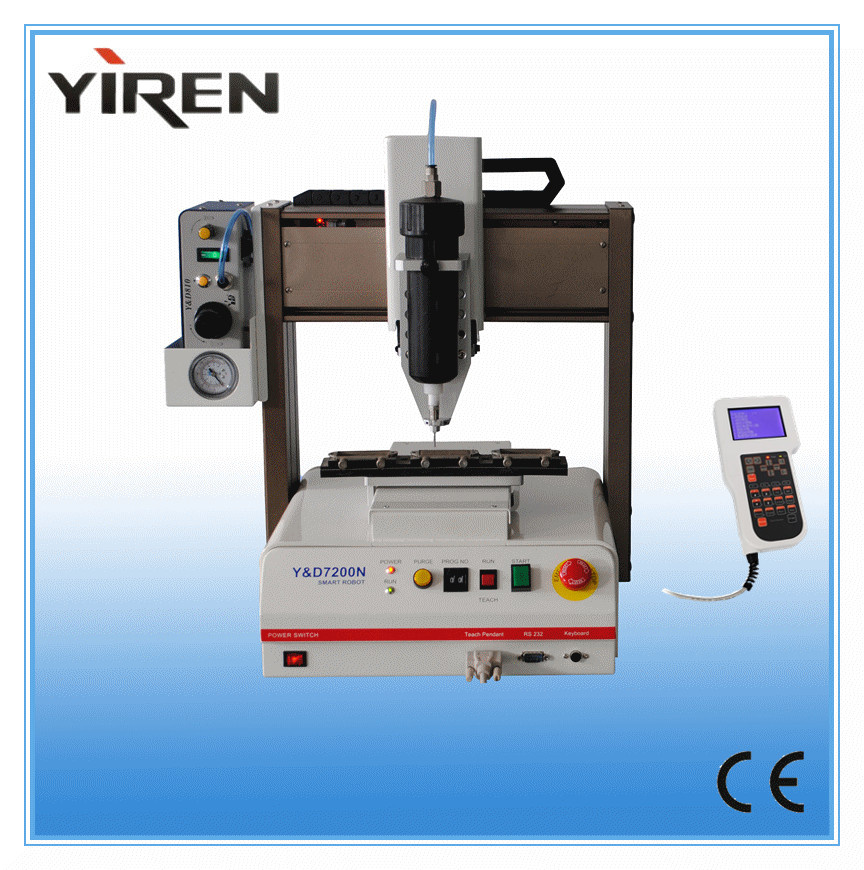

Automatic Electronic Components Adhesive Coating Dispenser
Common application scope:
Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery package, the coil point glue, PCB bond fixed sealant, IC sealant, horn external punctuate glue, PDA sealant, LCD sealant, IC packaging, IC bonding, casing bonding, optical device processing, mechanical seal, etc.
Applicable fluid:
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
Main use:
The product in the process of bonding, infusion, coating, sealing, filling, drop, linear/arc/round glue, etc. Dispense in point, line, surface, arc, circle and irregular curve and triaxial linkage function is available etc.
| Item | Y&D7200N |
| X/Y/Z working area (mm) | 200/200/5 0 |
| Load worktable | 5.0kg / 3.0kg |
| Speed PTP X&Y/Z (mm/sec) | 0.1~500/350 |
| Repeatability | +/- 0.01mm / axis |
| Resolution | 0.01mm/axis |
| Data memory | 100 programs, 4000 points/program |
| Data storage | CF card |
| Program Display | Teach pendant LCD |
| Operation system | PTP (point to point) & CP (continuous path) |
| Interpolation linear/circular | 3 axis |
| Program method | Teach pendant |
| I/O signals | 8 inputs / 8 outputs |
| External interface | RS232 |
| Power supply | AC 90~260V 125W |
| Operating temperature | 0~40 ° C |
| Motor system | Micro stepping motor |
| Dimensions | 385*380*500 |
| Net Weight | 23kg |
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
