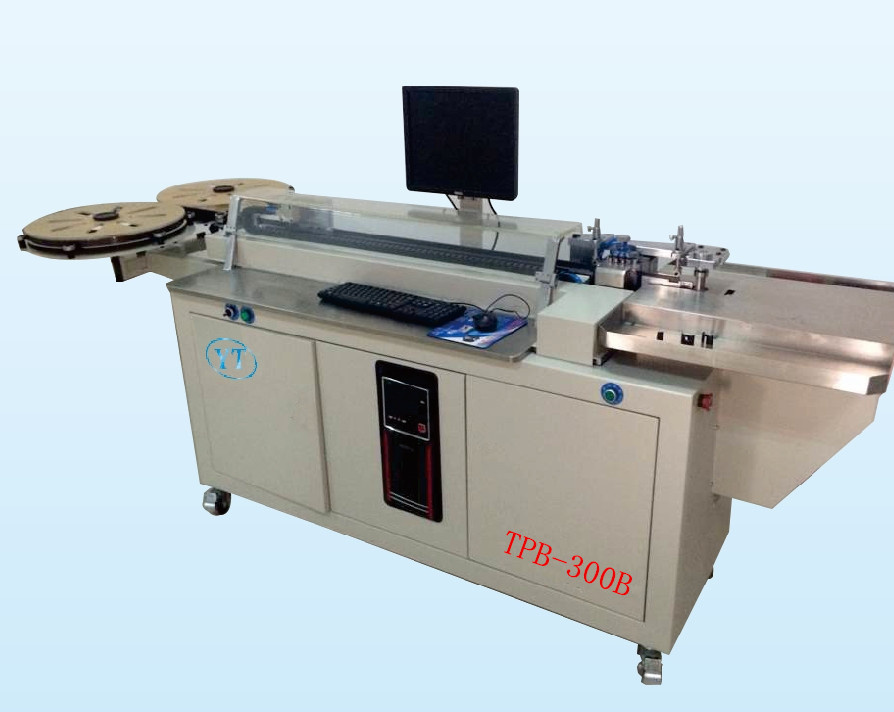

Type: TPB-300B
Product Features:
Promptly&precisly perform bending, notching, rake lipping, clearance lipping, front plane cutting and back plane cutting;
Direct calibration after bending, no need for additional edge truncation or grinding;
Fully automated bending to its true meaning, time and labor cost saving;
Perform the six function individually, simutanousal, or several of them.
Type B the first end and the tail end of a disposable cut, ensure the docking without gap, convenient welding.
|
Specification |
|
The precision after bending |
±0.05MM |
|
The planeness |
0.25MM |
|
The min head length of the bending |
1.8MM |
|
The min end length of the bending |
1.8MM |
|
The max bending angle |
90 degree |
|
The min radius for 90 degree angle |
0.5mm |
|
Material applied |
0.45MM/0.53MM |
|
The height of the blade |
7-12MM |
|
Power supply |
220/380V 50/60HZ |
|
Air pression |
0.6MPA |
|
Size |
2600*850*1500MM(L*W*H) |
|
Weight |
460KG |
Yitai Packing-Materi Accessories(Kunshan)Co., Ltd. was established in 2003. We belong to Grandcorp precision mould group, but professional of die-making materials and package machines.
Our main business scope is as below: Flat & rotary die board, cutting rules, creasing rules, creasing matrix, doctor blade, manual die making machine, auto-bender machine, sample making machine, nick grinder, trash-cleaning machine and so on. Specialty and first class service make us attract the customers from domestic and overseas.
Our products are well sold to South Africa\ Australia\ Brazil India We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
