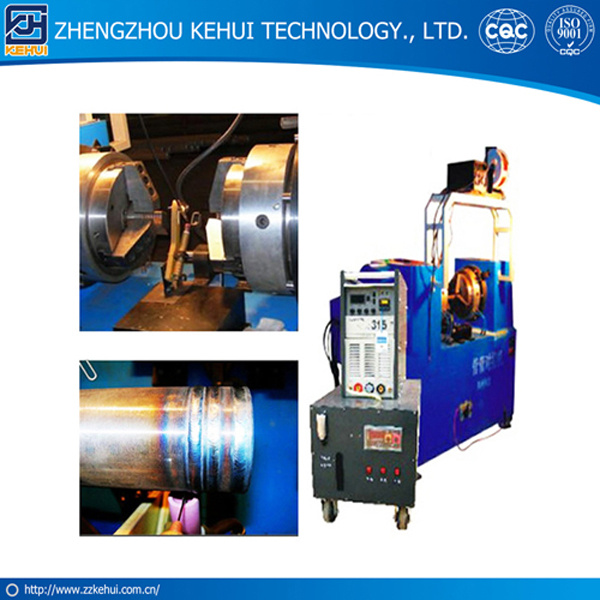

Product application
Applicable industries
Petrochemical, boiler, refrigeration, medicine, aerospace, pressure vessel, ship, food machinery, atomic energy etc
Applicable scope
Apply to tube diameter from16mm-230mm tube pipe, tube-elbow, the tube - flanges, carbon steel, alloy steel valves -, stainless steel wire filling or not wire filling
Function and characteristics
1. Welding head have four specifications, according to dimensional condition and product range can choose one or several specifications of the nose
2. Suitable for various kinds of pipe - pipe joint way, and various groove form
3. Wire unit according to working environment different, can use built-in wire or external wire
4. Starting main components are used aviation materials, light weight, size stability, and high temperature deformation
Welding torch using forced circulation water cooling, can work long hours
6. Driving and wire adopts stepping motor, the nose reliable
7. Nose equipped with balancer, operation convenience, the reduction of labor intensity
8. Nose can choose the arc length automatic adjustment and yawing device. According to different requirements yawing can be used mechanical and swing magnetic pendulum
9. PLC control system and LCD touch human-machine interface, can be stored up to 100 groups of welding standard, each group of welding scope can divide 1-2 section, input is simple, do not need professional basis and special language
10. By Panasonic IGBT inverter control DC pulse power, high efficiency, arc welding strong stability, Weld bead have a beautiful appearance
11. Mandatory water cooling system, equipped with 16 liters stainless steel tank, not affected by field water hydraulic conditions of limits, cooling fully, reliable convenient
12. The cars type integration design, mobile freedom, equipped with small tools and argon gas bottle seat, more but will head to receive in the cars, ensure equipment need not when the security deposit!
MODEL |
TIG |
TIG |
TIG+MIG |
TUBE DIAMETER |
19~80mm |
19~80mm |
19~80mm |
TUBE THICKNESS |
2.5~8mm |
2.5~15mm |
5~15mm |
WIRE DIAMETER |
0.8mm 1.0mm 1.2mm |
0.8mm 1.0mm 1.2mm |
0.8mm 1.0mm 1.2mm |
WIRE FEEDING SPEED |
0~3000 mm/min |
0-8000mm/min |
TIG 0-3000mm/min
MIG 0-15000mm/min |
MATERIAL |
CARBON STEED, MOLYBDENUM STEEL, CHROME-MOLYBDENUM STEEL, AUSTENITIC STAINLESS STEEL, SPECIAL STEEL |
KeHui Technology set up in 1996, with almost 20 years' experience in automation filed. We focus on the design and manufacturing of automatic orbital welding machine and welding robot. Additionally, we also concentrate on providing any automation solution to clients.
KeHui Technology own five centers in headquarter such as the research and development center, sales and service center and manufacturing center and so on. They work together for supplying product, design and sales service to clients.
Our product includes three main parts:
1. Automatic orbital welding equipment -arc welding, girth welding, seam welding and so on
2. Welding Robot for OTC brand (made in Japan, and we are the distributor of OTC China)
3. Automation welding solution relates the real requirement of clients
