Automatic Chinese welding machine
Product Application
Applicable industries: Petrochemical, boiler, pressure vessel, shipbuilding, food machinery, etc.
Applicable products: Pressure vessel, boiler, heat exchanger, etc.
Suitable for: The pipe outer diameter 8mm-80mm of carbon steel, stainless steel, copper alloy, titanium alloy, etc.
Product Function

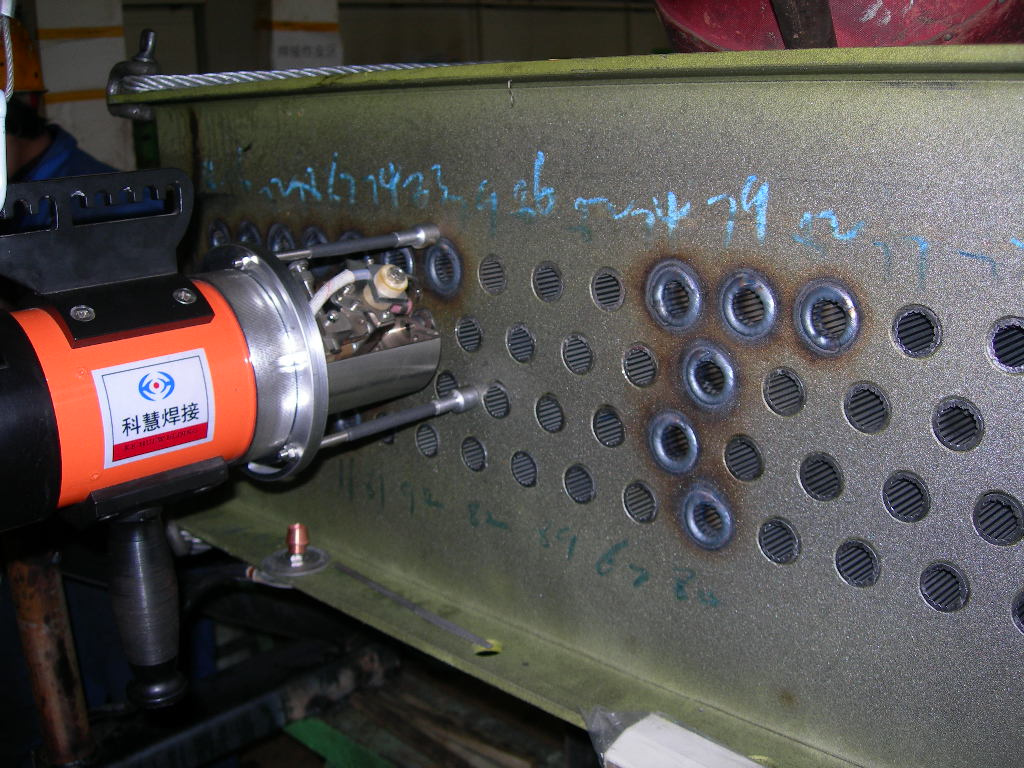

1. Suitable for various kinds of welding of tube-tube sheet.
2. Weld head compact structure and small volume. Using elastic and positioning mandrel, three supporting frame that can make the circumferential, axial and radial adjusting, quickly and accurately! Imported motor and transmission institutions make head movements more reliable!
3. Program-controlled system humanist, the operation is simple, friendly man-machine interface, can be stored up to 99 welding standard, each group of welding standard can be divided into 1-16 segment, input simple, without professional basis and special language!
4. IGBT power inverter control DC pulsed current and welding arc stability of high efficiency, strong, weld bead molding beauty!
5, Mandatory water cooling system, not affected by field hydraulic conditions such as restrictions, cooling fully, reliable convenient.
6. The cars type integration design, mobile free and easy to use
Main Technical Specification(in the table)
Rated input voltage |
380V |
Rated input capacity |
13.9KVA |
Rated power input |
13.2KW |
Voltage allow fluctuating range |
380±10% |
Phase number |
Three-phase |
Frequency |
50/60HZ |
Rated load sustained rate |
60% |
Rated welding voltage |
TIG welding 22.6V |
The rated voltage no-load |
70V |
Weld able tube diameter |
12-80mm |
Weld able wall thickness |
1-6.5mm |
Tube biggest stretch out length |
8mm |
Tube biggest indented length |
2mm |
Welding current adjusting range |
400A |
Pulse frequency |
0.5-500HZ |
Adjusting range |
10%-50% |
Argon gas flow |
8-12L/min |
Wire feeding speed |
0.5-1.5/min |
Wire filling diameter |
0.8/1.0mm |
Helicopter speed |
0.5-1.5m/min |
Built-in memory capacity |
100 welding criteria |
Welding speed |
50-150mm/min |
Cooling water pressure |
1.2kg.f/mm2 |
Tungsten pole adjustable Angle |
<45° |
Power heavy |
45kg |
The machine weighs |
150kg |
KeHui Technology set up in 1996, with almost 20 years' experience in automation filed. We focus on the design and manufacturing of automatic orbital welding machine and welding robot. Additionally, we also concentrate on providing any automation solution to clients.
KeHui Technology own five centers in headquarter such as the research and development center, sales and service center and manufacturing center and so on. They work together for supplying product, design and sales service to clients.
Our product includes three main parts:
1. Automatic orbital welding equipment -arc welding, girth welding, seam welding and so on
2. Welding Robot for OTC brand (made in Japan, and we are the distributor of OTC China)
3. Automation welding solution relates the real requirement of clients
