Hot selling saddle-type of automatic inverter TIG welding machinery
Applicable industries and scope

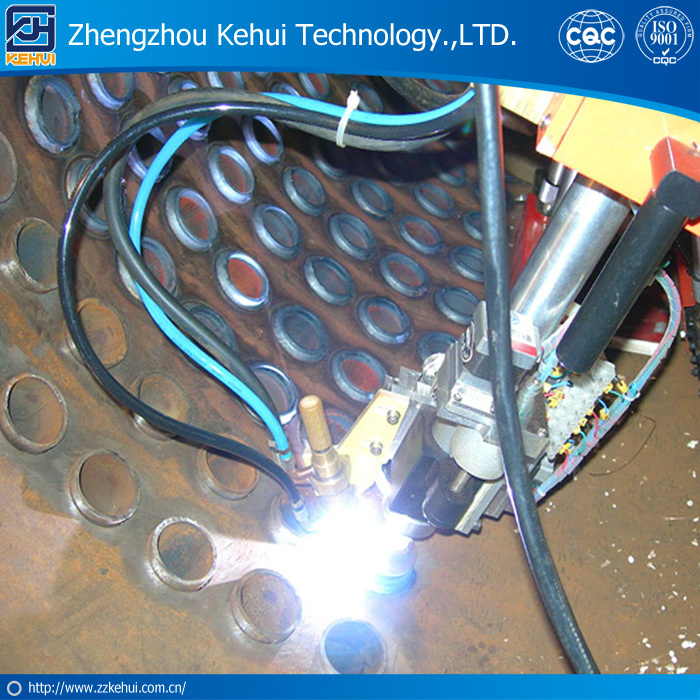

KHBT Series cylinder body wall saddle type full-automatic pulse tube plate argon arc welding machine can be used in boiler, heat exchangers, pressure containers of small tube and bassoon and body orthogonal carbon steel, alloy steel, stainless steel tube plate of all position of welding.
KHBT51 welder mainly used for pipe diameter for 51mm and diameter of 800-2400mm cylinder orthogonal wall saddle type tube plate welding.
Special size of pipe and tube body as well as the special assembly way, can customize according to the requirements of customers.
Function and Features
1, Welding head which adopts compact design and equip with special mobile vehicles, is easy operation. Electromagnetic system equipped on the bottom of vehicles ensure that the welding process is more stable and accuracy. When cutting from power supply, the vehicles can move freely in the tanker.
2, Welding torch rotation system, wire feeding system and mention arc system triaxial integration controlled by PLC system make welding bead more beautiful.
3, Welding torch using forced circulation water cooling can continuously work long hours.
4, System adopts PLC control and it is stabilization and reliable, strong anti-jamming.
5, The man-machine interface adopts LCD touch screen, English input, the operation is simple, intuitive convenient.
6, Adopt Panasonic IGBT inverter control DC pulsed TIG welding power, high efficiency, arc stability strong, weld bead beautiful.
7, The machine adopts compulsory air-cooled water cooling circulatory system, which equipped with 16 liters stainless steel tank, not affecting by field water hydraulic conditions of limits, cooling fully, reliable convenient.
About us:
We are the loading manufacturer specialized in designing and manufacturing different kinds of Automatic Arc Welders, Tungsten Electrode Grinders, Quenching Medium Performance Analyzers, Tube end facing machines in China with experience of 20 years, manufacturing according to the ISO9001: 2008 quality control system guidelines, CQC. We help our customer develop special arc welders for their application and OEM service offered.
Our main customers are Panasonic, SanRex, PetroChina, Sinopec Group, China FAW, China Sany Heavy Industry, etc
Contact me:
Kevin zhou, Tel: 086-371-56576014, Fax: 086-371-67986002,
|
Weldable diameter |
51mm |
|
Weldable tank diameter |
800\1000\1200\1400\1600\1800\2200\2400 (mm) |
|
Welding torch can tilt Angle |
25-35DEG |
|
Welding torch turning speed |
0-9rpm |
|
Wire feeding speed |
0-2500mm/min |
|
Power control mode |
IGBT inverter control |
|
Rated input voltage |
380V |
|
Rated input capacity |
13.9KVA |
|
Rated input capacity |
13.2KW |
|
Rated welding voltage |
22.6V |
|
Welding current |
4-400A |
|
Starting current |
4-400A |
|
Attenuation current |
4-400A |
|
The current up time |
0.1_20S |
|
Current decrease time |
0.1_20S
|
KeHui Technology set up in 1996, with almost 20 years' experience in automation filed. We focus on the design and manufacturing of automatic orbital welding machine and welding robot. Additionally, we also concentrate on providing any automation solution to clients.
KeHui Technology own five centers in headquarter such as the research and development center, sales and service center and manufacturing center and so on. They work together for supplying product, design and sales service to clients.
Our product includes three main parts:
1. Automatic orbital welding equipment -arc welding, girth welding, seam welding and so on
2. Welding Robot for OTC brand (made in Japan, and we are the distributor of OTC China)
3. Automation welding solution relates the real requirement of clients
