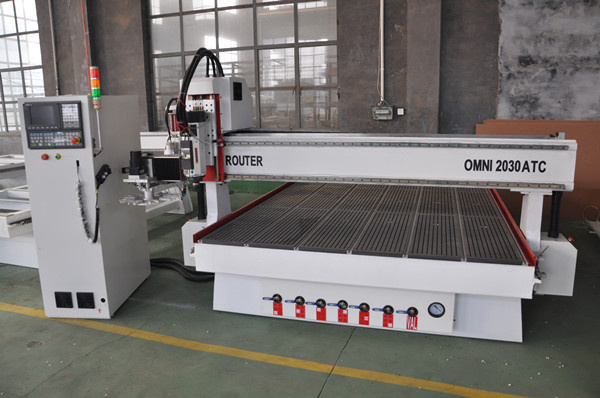

Automatic Tool Change CNC Router
| Price: |
US $ 7000SET |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Product Specifications
| Prod Model: |
OMNI 2030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Name: |
Automatic Tool Change CNC Router |
| Working Area: |
1300*2500*200mm |
| Table Size: |
1500*3040mm |
| Table Surface: |
Bakelite Table Combined T-Slot,Vacuum Table |
| Spindle: |
Italy Hsd Aircooling Spindle |
| CNC Control System: |
Taiwan Syntec Controller |
| Driver And Motor: |
Japan Yaskawa Driver and Motor |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Drive System X,Y Axis: |
Rack and Pinion,Hiwin Rail Linear Bearing Square |
| Drive System Z Axis: |
Taiwan Tbi Ballscrew,Hiwin Rail Linear Bearing |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Horizontal |
| Certification: |
CE |
| Color: |
Milk White |
Product Description
Automatic Tool Change cnc routerWhole machine scanning

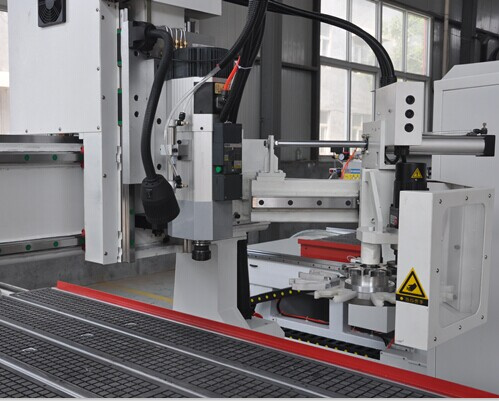

Spindle with Auto Tool Change
Furniture:Ideally suitable for processing cabinet door,wooden door,solid wood furniture,panel wood furniture,windows,tables and chairs,etc.. Well-suitable for processing panel,insulating materials,plastic,epoxy resin,carbon mixed compound,etc.. Decoration acrylic,PVC,density board,artificial stone,organic glass,soft metals like Aluminum and Copper.. Designed to meet diverse and complicated processing requirements,highly versatile with routing,cutting and other functions.. Features world top class mechanical and electronic components,e.g,Japanese servo driver and gear reducer,Italian high power automatic tool changing spindle,French low-voltage electrical components,which guarantee stable performance and high finishing quality.. 8-slots carousel tool changer,tool changes to be performed with 8 seconds.. Vacuum worktable fitted with aluminum alloy bars and suction cups is rigid yet,flexible for various configurations. Cropping the full sheet to your ideal size,routing,cutting,and milling-multiple functions,all in one.Welcome to be the partner of OMNI.
Jinan OMNI CNC Technology Co., Ltd. is enterprise specializing in manufacturing, marketing and R&D of CNC router, laser and CNC plasma cutting machine. OMNI supply machines to a wide variety of manufacturing sectors including aerospace, automotive, marine, recreational vehicles, 3D sculpture, concept models, pattern making, formed plastics and wood working, sign.
