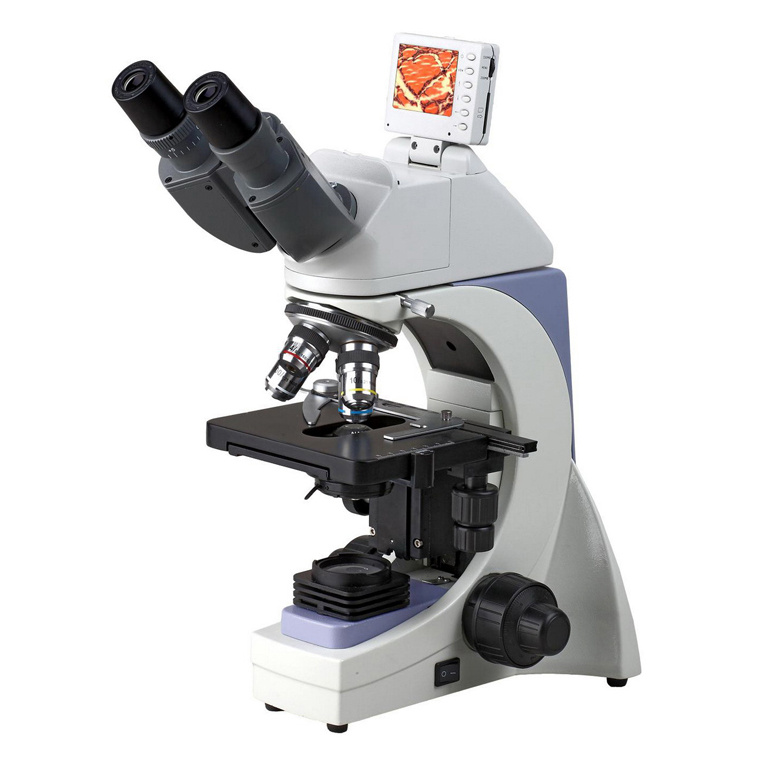

Best Quality Professional Binocular LCD Screen Digital Biological Microscope with Infinite Optical System Semi Plan Objective Lens/LCD Mikroskop

Name: Best Quality Professional Binocular LCD Screen Digital Biological Microscope with Infinite Optical System Semi Plan Objective Lens/LCD Mikroskop
Brand: china-manufacturer-directory.com
SKU: 765677675
Availability: InStock
Rating: 4.8 (31 reviews)

Best Quality Professional Binocular LCD Screen Digital Biological Microscope with Infinite Optical System Semi Plan Objective Lens/LCD Mikroskop

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,DDP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	LCD120D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Camera System:	Build-in 3.0MP Digital Camera, 2.5"LCD Screen
Ocular:	Wide Field Wf10X/18 Eyepiece
Objectives:	Infinite Semi Plan 4X10X40X(S) 100X(S.Oil)
Light Source:	Super Light LED, Intensity Ajdustable
Warranty:	3-Year Mechinical;1-Year Electronics
Magnification:	500-1000X
Type:	USB
Number Of Cylinder:	Binoculars
Mobility:	Desktop
Shape:	Pentagonal Prism
Principle:	Optics
Principle Of Optics:	Brightfield Microscope

Product Description

LCD Digital Biological Microscope LCD120 series
Description:
BiologicalVarity observation mode: Observe image on LCD screen and ocular at the same time; Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.
Feature:
1. 2.5" TFT LCD screen with 4×digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
2. Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords. Expandable to Max 1G Bytes SD Card slot for more storage capacity.
3. Support Windows 2000/XP/Vista/Win7 32 bit and equipped with powerful image processing software.
4. Integrated traditional optics and digital technology, widely used in sand scientific research field.

	Standard Specification	120C	120D
Camera System	LCD: 2.5" Color TFT LCD display, 100°maximum elevation angle, pivoting LCD screen, USB, AV, S-Video and Audio are available	√	√
Camera System	Resolution: 3.0 Mega Pixels CMOS Chip, Static Image 2048×1536, Video 320×240, suitable for Windows 2000, XP, and Vista, with Software	√	√
Viewing Head	Siedentopf Binocular head inclined at 45°, Interpupillary Distance 55-75mm	√	√
Eyepiece	Wide Field WF10X/20 eyepiece	√	√
Eyepiece	P16X eyepiece	o	o
Nosepiece	Outward Quadruple Nosepiece	√	√
Nosepiece	Backward Quadruple Nosepiece	o	o
Objectives	Semi-Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)	√	-
	Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)	o	-
	Infinite Semi-Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)	-	√
	Infinite Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)	-	o
Stage	Double Layers Mechanical Stage:140X140, Moving range:75X50mm	√	√
Condenser	Abbe Condenser N.A.=1.25 With Iris Diaphragm and Filters	√	√
Focusing System	Coaxial Coarse&Fine Adjustment, Fine Division 0.002mm, Moving range:20mm	√	√
Collector	High Brightness Collector	√	√
Illumination	AC220V/110V, 6V/20W, Halogen Lamp, Brightness Adjustable.	√	√
	Super Light 3W LED lamp, Brightness Adjustable	o	o
	Kohler Illumination	o	o
Filters	Green and Blue Filters	√	√
Optional Accessories	Polarization Attachment (Analyzer and polarizer)	o	o
	Simple Phase contrast kit	o	o
	Sliding Phase contrast kit	o	o
	Turret Phase contrast Kit	o	o
	Dark- Filed Condenser(dry), Dark-field Condenser(oik), 100X dark field objective	o	o

Note:"√" Standard Specification, "o" Optional Parts

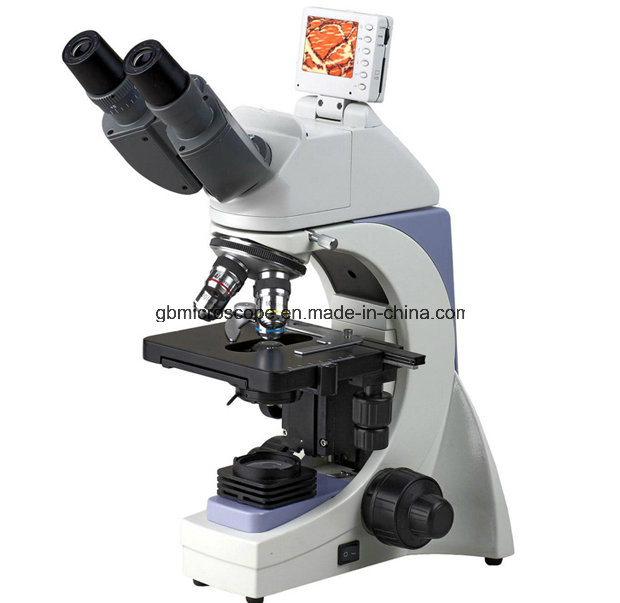

Digital LCD Microscope LCD120C
