Product Specifications
Prod Model: |
F21-6S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Best Selling 6 Channel Single Speed Wireless Remo |
Control Distance: |
up to 100m |
Control Motions: |
6 |
Unique Code: |
Over 4.3 Billon Unique ID Codes |
Working Temperature: |
-35 Deg C~ +80 Deg C |
Enclosure Protection Class: |
IP 65 |
Transmitter Power: |
DC 6V (4 AA Batteries) |
Reciver Power: |
AC 380V/ 36V/220V or DC12V |
Output Capacity: |
Full Sealed Relay Output with 5 Ampers |
Frequency: |
310.00~330MHz |
Application: |
Industrial Machinery |
Signal Transmission: |
Radio Waves |
Type: |
Joystick |
Certification: |
CE |
Universal: |
Not Universal |
Transmission Distance: |
50-100m |
Battery Type: |
AA Battery |
Voltage: |
Optional |
Material: |
Glass Fiber-Reinforced Nylon-6 |
Product Description

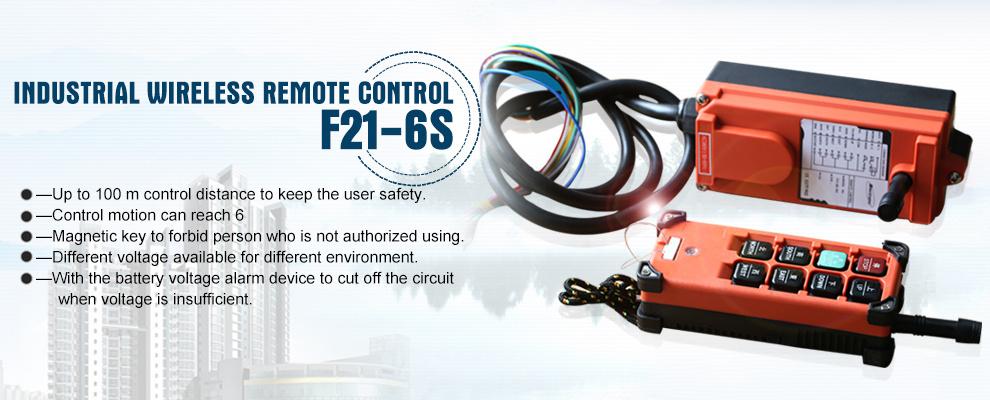

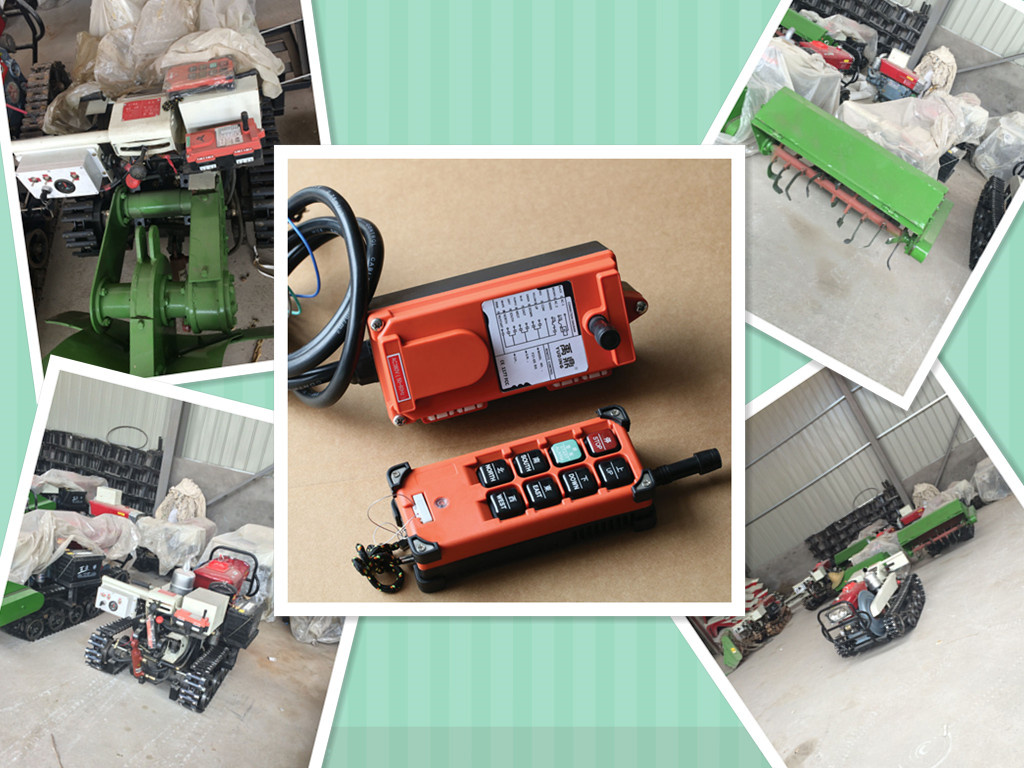

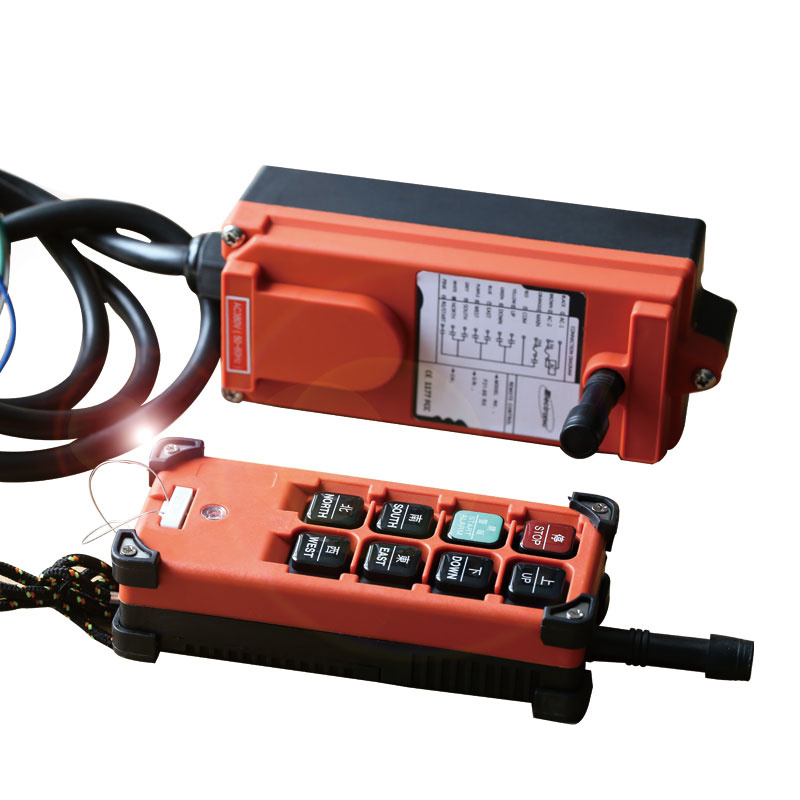

F21-6S Best selling 6 channel single speed wireless remote control
Features of single speed remote control F21-6S:1. Water-proof, IP 65, can be used inner or outside.
2. Glass fiber and engineering-plastics make the cover strong, avoid damage cause by high falling or gravity roller.
3. Control distance can reach to 100m
4. Wide receiver voltage can meet different requirement.
5. Key safety magnet, another guarantee about the safety.
6. Free transmitter protecting cover available.
Basic information:Control distance | Up to 100m |
Control Motions | 6 |
Frequency generation | Crystal |
Structure | Glass-Fiber |
Operation frequency | 310.0325-331.165 MHz |
Certificates | CE, FCC, ISO9001:2008 |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C___+80°C |
Output capacity | Full sealed relay output with 5 amperes |
Brief introduction: Transmitter Size: 164*75*46mm weight:350g
Receiver Size: 185*85*85mm weight:550gIntroduction about the product: * 8 push buttons with 7 single-speed buttons and 1 stop buttons* control points up to 6* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down ,east/west , south/ north push button can be set mutual inhibition or not .
* spare 1 key can be set start ,speed up,jump strokes, ordinary etc.
Standard configuration:
One transmitter ;
One receiver;
One 3m cable connect with receiver
One operation and maintain manual .
Packing Information:10 Set per carton,
Carton size: 67*54*37cm
Weight: 17.5kgApplication:
