| Price: | US $ 900/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Money Gram,Western Union |
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality wireless remote controls for cranes, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable.
7. One year warranty.
Specification of Wireless Remote Control:
Product name | remote control for crane |
Application | Overhead cranes, hoist ,chain hoist, other industrial machine |
Frequency | 310.0325~331.165Mhz |
Frequency generation: | Crystal (plug in) |
Channel | 80 |
Channel Spacing | 0.2675MHz |
control motions | 40 |
wireless remote controls for cranes distance | Up to 100m |
Certificates | CE, FCC, ISO |
Number of push button | 20 Dual speed push button+1 EMS button+1 START button |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C ~ +80°C |
Enclosure protection class | IP65 |
Transmitter power | AA-size batteries |
Receiver power | AC 380v/220V/110v/48v/ 36v/24v/12v or DC12V |
Output capacity | Full sealed relay output with 5 amperes |
Model | can be set normal, toggle, interlock or non-interlock |
Material | glass fiber |
products photos:

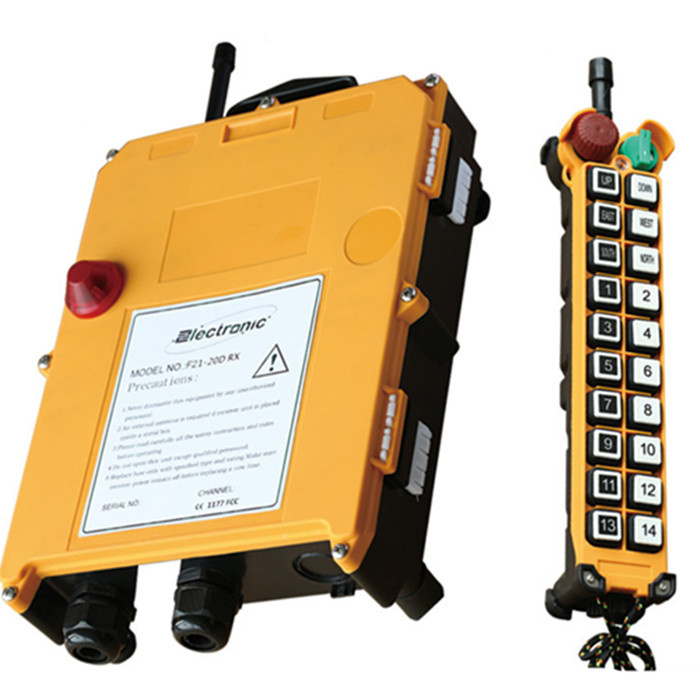

F21-20s

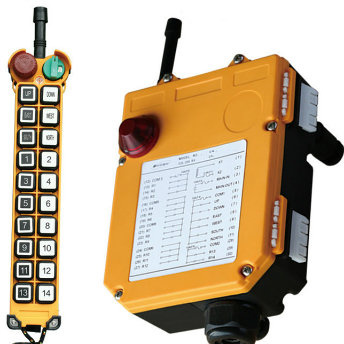

F21-20D
Standard configuration:
Application of Wireless Remote Control:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites
which can be worked by radio wireless remote controls for craness.
Notes of Wireless Remote Control:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

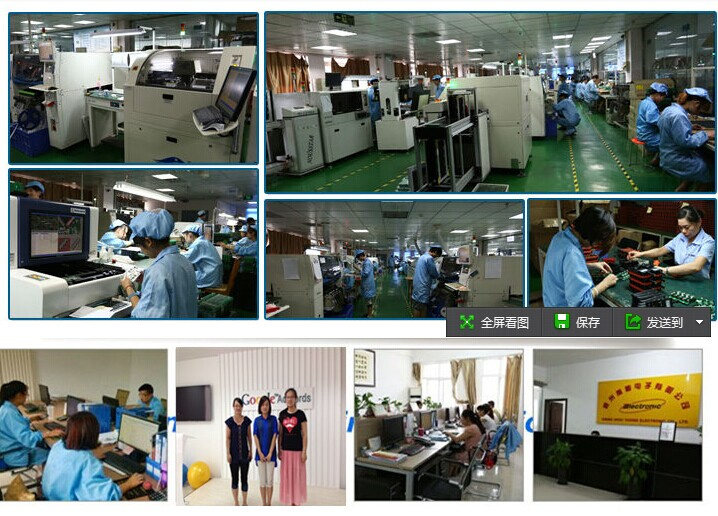

Our Factory:
If you are interested in this products, pls feel free to send inquiry to me
| Prod Model: | F21-20 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Wireless Remote Control |
| Control Point: | 40 |
| Item: | Industrial Remote Control |
| Application: | Industrial Machinery |
| Signal Transmission: | Radio Waves |
| Type: | Button |
| Certification: | FCC |
| Universal: | Universal |
| Transmission Distance: | >100m |
| Voltage: | 3V |
| Material: | Plastic |
| Battery Type: | AA Battery |
