Product Specifications
| Prod Model: |
F21-6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Single 6 Steps Wireless Remote Control System |
| Control Distance: |
up to 100m |
| Packing Size: |
33*21*17cm(Including Inner Carton) |
| Packing Details: |
1 Set/Inner Carton,10 Sets/Outer Carton |
| Shipping: |
International Express |
| Task: |
Adjust |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
ISO: 9001 |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Glass Fiber |
Product Description

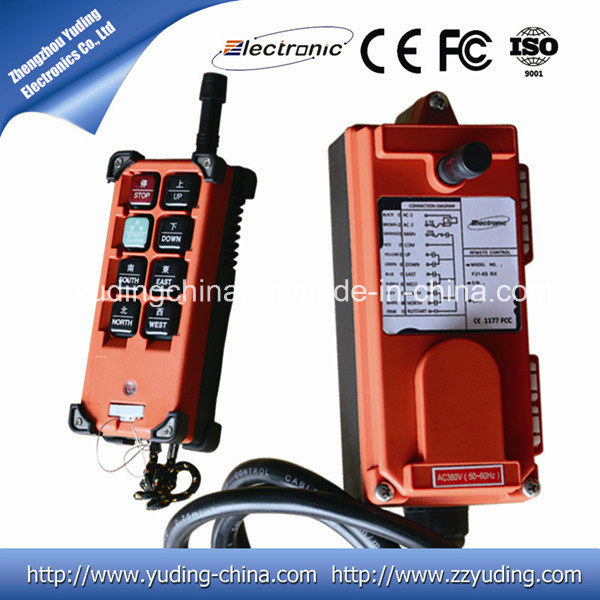

F21-6S Single 6 Steps Wireless Remote Control System
Applications of Winch Wireless Remote Control :
single hook electric cable hoist,monorails, single speed electric hoist or electric single speed hoist crane,and used for the industrial remote control which are under 6 connection
Features of Wireless Crane Remote Control :
· Control points up to 6.
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer Interface.
· with the Rotate key switch to guarantee the safety.
· UP/DOWN,EAST/WEST,SOUTH/NORTH push buttons can be set ordinary,jump strokes,mutural inhibition or not.
· START button can be set start,inching,jump strokes,ordinary etc.
Technical Specifications:
F21-6S Single 6 Steps Wireless Remote Control System
Unique I.D.Code | over 4.3 billion |
| Numbers of Buttons | 6 Single Speed buttons,1 START button,1 MUSHROOM button |
| Transmitter Power Supply | two 1.5v Batteries(AA size) ( up to 3 months usage) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| Relays | 6 Relays control Functions,1 relay control EMS and 1 relay reserve |
| Output relays | 5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse) |
| Operating Frequency | 310.0325-331.1650MHz(VHF) |
| Channel Spacing | 0.2675MHz |
| Working Temperature | -35ºC~ +85ºC |
| Interface | Cable Output |
| Protection Degree | IP65 |
| RF Power | <10DBm |
| Channel | 80CH |
Standard Configuration:
Transmitter*1(with strap),
Reiceiver*1
Receiver with 1m Cable,
Operation and maintain manual *1
Our Products Advantages:
All the products have got CE,FCC certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.
Henan Yuding Electronics Crop., Ltd (former Zhengzhou Yuding Electronics Co., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Yuding has so many experts in the industrial radio remote controller area to assure workers safety and productivity, Yuding are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and productivity. All our products are CE & FCC Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
