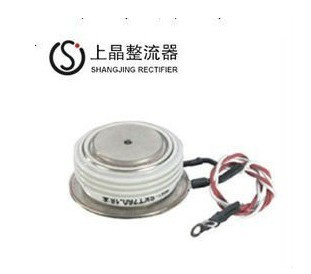

Product Specifications
| Prod Model: |
SST300C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Element Semiconductor |
| Package: |
SMD |
| Manufacturing Technology: |
Semiconductor |
| Type: |
Power Semiconductor |
Product Description
Features
Total diffusion process
Ceramic disc type seal
Central amplifying gate structure
Double-sided cooling
Typical applications
Contactless AC switch
AC power control
Explanation
IGT, VGT, IH are TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current when at 50Hz
I2t=0.005I2FSM(A2S)
When at 60Hz ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm
I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm
Gate trigger made (base point nt T1)
|
Type |
VDRMVRRM |
IT(AV) |
ITSM |
dv/dt |
di/dt |
IDRMIRRM |
IGT |
VGT |
IH |
VTM/ITM |
Rth(j-hs) |
Tjm |
M 2 |
Outline |
|
|
THS55° C |
10ms |
|
|
|
25° C |
|
|
|
|
V |
A |
KA |
V/μ s |
A/μ s |
mA |
mA |
V |
mA |
V/A |
° C/W |
° C |
kN |
|
SST200C |
100-6000 |
200 |
1.7 |
300 |
100 |
20 |
20-200 |
0.8-2.5 |
20-200 |
1.9/600 |
0.120 |
125 |
3.3-5.5 |
E1/E2 |
|
SST300C |
100-6000 |
300 |
2.5 |
500 |
200 |
30 |
20-200 |
0.8-2.5 |
20-200 |
1.9/900 |
0.035 |
125 |
5.3-10 |
E2 |
|
SST500C |
100-6000 |
500 |
4 |
500 |
300 |
30 |
20-250 |
0.8-2.5 |
20-300 |
2.0/1500 |
0.031 |
125 |
10-20 |
E5 |
|
SST600C |
100-6000 |
600 |
4.2 |
500 |
300 |
40 |
20-250 |
0.8-2.5 |
20-300 |
2.0/1800 |
0.031 |
125 |
10-20 |
E5 |
|
SST800C |
100-6000 |
800 |
6.8 |
1000 |
500 |
50 |
20-250 |
0.8-2.5 |
20-400 |
2.0/2400 |
0.021 |
125 |
15-20 |
E5/E8 |
|
SST1000C |
100-6000 |
800 |
6.8 |
1000 |
500 |
50 |
20-250 |
0.8-2.5 |
20-400 |
2.1/3000 |
0.021 |
125 |
20-30 |
E8 |
