Product Specifications
| Prod Model: |
LB-202 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Binocular Bright and Dark Field Microscope |
| Model: |
Lb-202 |
| Eyepiece: |
Wf10X/20 |
| Objective Lens: |
4X, 10X, 40X, 60X (Option), 100X |
| Movable Stage Size: |
156*138mm |
| Movable Stage Size Travel: |
76mm*54mm |
| Interpupillary Distance: |
52mm-75mm |
| Binocular Tube: |
Inclined 30o |
| Diopter Adjustment: |
5 Diopter |
| Illumination: |
6V/20W Halogen Bulb |
| Type: |
Biological |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Shape: |
Cylindrical Shaped Lens |
| Principle: |
Optics |
| Magnification: |
40X-2000X |
Product Description

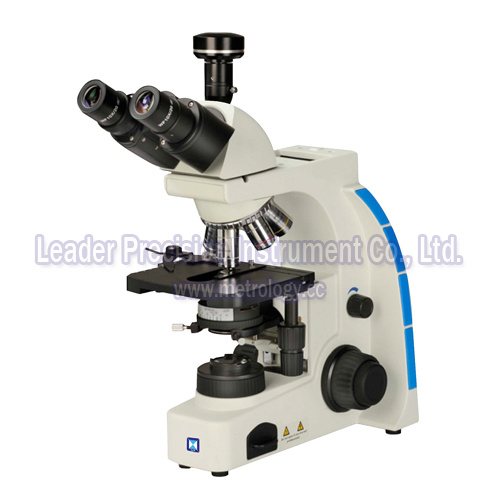

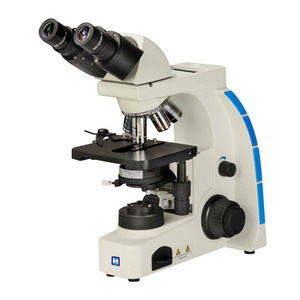

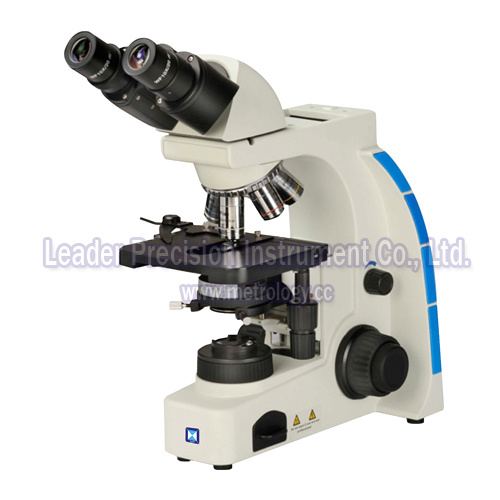

Binocular Bright And Dark Field Microscope With WF10X/20 (LB-202)Usage:Binocular Bright Field micrscope LB-202 is widely used for biology medicine agriculture and industry field, this light microscope is the ideal instrument in medical treatment, teaching demonstration and scientific research an so on.
Features1. With wide field eyepieces and plan achromatic objectives, the field of view is widely and clear
2. Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μ M
3. With Kohler illumination, 6V/20W halogen lamp with brightness control
Standard delivery:Main unit: 1pcs
4x, 10x, 40x, 100x(oil) plan achromatic objective lens: 1pcs each
6V/20W Osram halogen bulb: 1pcs
Blue filter: 1pcs
Anti-dust cover: 1pcs
Specification| Eyepiece | WF10X/20 |
| Objective lens | 4x, 10x, 40x, 60x (option), 100x |
| Mechanical movable stage | Size: 156*138mm
Travel: 76mm*54mm |
| Interpupillary distance | 52mm-75mm |
| Binocular tube | Inclined 30º |
| Diopter adjustment | ± 5 diopter |
| Illumination | 6V/20W halogen bulb |
| Power supply | 110V/220V |
