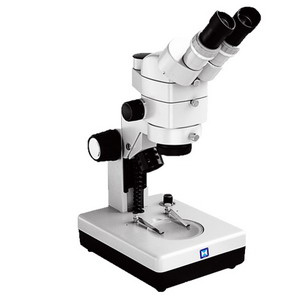

Binocular Zoom Stereo Microscope (XTF-2021)

Name: Binocular Zoom Stereo Microscope (XTF-2021)
Brand: china-manufacturer-directory.com
SKU: 748956405
Availability: InStock
Rating: 4.4 (39 reviews)

Price:	US $ 200-300/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to inspect the naked IC, LCD printing paste, PC

Feature:
1) Zoom lens microscope
2) Parallel Beam Path Design
3) Can connect CCD camera

Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS

Optional accessories for this microscope:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x

Technical data
Lens zoom range	0.55X, 1X, 1.75X, 3X, 5.5X
Eyepiece	WF10X/23mm
Working distance	95mm
Total magnification	5.5X, 10X, 17.5X, 30X, 55X
Field of view	¢ 41.8mm, ¢ 23mm, ¢ 13.1mm, ¢ 7.7mm, ¢ 4.2mm
Interpupillary distance	48mm-75mm
Binocular tube	inclined 45º
Diopter adjustment	± 5 diopter
Binocular body Rotation	360º

Eyepiece	WF10X		WF15X		WF20X		WF25X
Auxiliary lens	Magnification	Field of view	Magnification	Field of view	Magnification	Field of view	Magnification	Field of view	Working distance(mm)
0.5X	2.8X 5X 8.8X 15X 27.5X	¢ 93.6 ¢ 46 ¢ 26.3 ¢ 15.3 ¢ 8.4	4.1X 7.5X 13.1X 22.5X 41.3X	¢ 58.2 ¢ 32 ¢ 18.3 ¢ 10.7 ¢ 5.8	55X 10X 17.5X 30X 55X	¢ 47.3 ¢ 26 ¢ 14.9 ¢ 8.7 ¢ 4.7	6.9X 12.5X 21.9X 37.5X 68.8X	¢ 43.6 ¢ 24 ¢ 13.7 ¢ 8 ¢ 4.4	200
0.75X	4.1X 7.5X 13.1X 22.5X 41.3X	¢ 55.8 ¢ 30.7 ¢ 17.5 ¢ 10.2 ¢ 5.6	6.2X 11.3X 19.7X 33.8X 61.9X	¢ 38.9 ¢ 21.3 ¢ 12.2 ¢ 7.1 ¢ 3.9	8.3X 15X 26.3X 45X 82.5X	¢ 31.5 ¢ 17.3 ¢ 9.9 ¢ 5.8 ¢ 3.2	10.3X 18.8X 32.8X 56.3X 103.1X	¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9	125
1X	5.5X 10X 17.5X 30X 55X	¢ 41.8 ¢ 23 ¢ 13.1 ¢ 7.7 ¢ 4.2	8.3X 15X 26.3X 45X 82.5X	¢ 29.1 ¢ 16 ¢ 9.1 ¢ 5.3 ¢ 2.9	11X 20X 35X 60X 110X	¢ 23.6 ¢ 13 ¢ 7.4 ¢ 4.3 ¢ 2.4	13.8X 25X 43.8X 75X 137.5X	¢ 21.8 ¢ 12 ¢ 6.9 ¢ 4 ¢ 2.2	95
1.5X	8.3X 15X 26.3X 45X 82.5X	¢ 27.9 ¢ 15.3 ¢ 8.8 ¢ 5.1 ¢ 2.9	12.4X 22.5X 39.4X 67.5X 123.8X	¢ 19.4 ¢ 10.7 ¢ 6.1 ¢ 3.6 ¢ 1.9	16.5X 30X 52.5X 90X 165X	¢ 15.8 ¢ 8.7 ¢ 5 ¢ 2.9 ¢ 1.8	20.6X 37.5X 65.6X 112.5X 206.3X	¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5	55
2X	11X 20X 35X 60X 110X	¢ 20.9 ¢ 11.5 ¢ 6.6 ¢ 3.8 ¢ 2.1	16.5X 30X 52.5X 90X 165X	¢ 14.5 ¢ 8 ¢ 4.6 ¢ 2.7 ¢ 1.5	22X 40X 70X 120X 220X	¢ 11.8 ¢ 6.5 ¢ 3.7 ¢ 2.2 ¢ 1.2	27.5X 50X 87.5X 150X 275X	¢ 10.9 ¢ 6 ¢ 3.4 ¢ 2 ¢ 1.1	35

Prod Model:	XTF-2021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Binocular Zoom Stereo Microscope
Model:	(Xtf-2021)
Lens Zoom Range:	0.55X, 1X, 1.75X, 3X, 5.5X
Eyepiece:	Wf10X/23mm
Working Distance:	95mm
Total Magnification:	5.5X, 10X, 17.5X, 30X, 55X
Field Of View:	41.8mm, 23mm, 13.1mm, 7.7mm, 4.2mm
Interpupillary Distance:	48mm-75mm
Binocular Tube:	Inclined 45o
Diopter Adjustment:	5 Diopter
Type:	Stereomicroscope
Number Of Cylinder:	Binoculars
Mobility:	Desktop
Shape:	Cylindrical Shaped Lens
Principle:	Optics
Magnification:	5.5-55X
