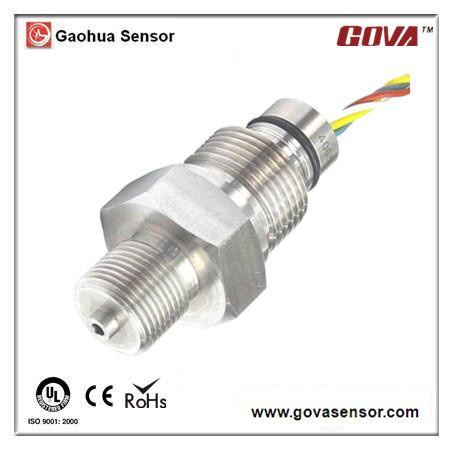

BS12N Assembled Piezoresistive OEM Pressure Sensor - Millivolt Output

High Quality:
1. Turnkey Service
2. CE, ISO9001, RoHs
3. OEM Service
4. Accept small order

BS12N Assembled Piezoresistive OEM Pressure Sensor - Millivolt Output


***Features
Pressure range (-1~600)bar;
 Pressure reference: Gauge, absolute and sealed gauge;
Constant current power supply;
Isolated construction to measure various media
OEM pressure element
316L stainless steel material
Perfect long term stability
Different male thread connection optional



***Introduction

BS12 series piezoresistive pressure transducers adopt high-sensitivity
piezoresistive silicon chip inside for pressure sensing. The chip is
protected against ambient influences by a stainless steel housing
sealed with a concerntrically corrugated diaphragm. The housing is
filled with silicone oil for the transfer of the pressure from the diaphragm to the sensing component. Exchanging the pressure into mV electrical output signal.

The transducers are designed for floating O-ring seal mounting for avoiding housing induced stress,
this also can guarantees the performance over pressure. All metal parts in contact with the pressure media are made of stainless steel 316L.

They are delivered with engraved serial number. Once any problem happen on any transducer, all testing records during the whole process from raw material to the finished products is ready for tracing.

>>>>>>>>>>>>>>>>Universal BS12 Piezoresistive Pressure Transducers
The universal BS12 Piezoresistive pressure transducers is the standard type in BS12 series. Strongly interchangeable outline dimension. Short leading time. Widely used in world-wide variety of different
applications.

>>>>>>>>>>>>>>>>BS12-13 Piezoresistive Pressure Transducers
Comparing with the universal BS12 series pressure transducers, BS12-13 is designed for smaller space installation.

>>>>>>>>>>>>>>>>Assembled BS12N Piezoresistive Pressure Transducers
Put general BS12 pressure transducers into the housing with standard or special thread; use face type seal or waterline seal; with flexible construction and strict inspecting and screening; the assembled.
BS12N transducers has similar application with general type transducers, it can be used for mounting and production of different pressure instruments;




***Application

?Industrial process control
?level measurement
?Gas, liquid pressure measurement
?Pressure meter
?Pressure calibrator
?Liquid pressure system & switch
?Refrigeration equipment &air conditioner
?Aviation and navigation inspection



***Electric Performance
Power supply  1.5mA(typ.)
Electric connection Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output 50% of input (typ.)
Input impedance 2kΩ~6kΩ
Output impedance 2kΩ~6kΩ
Insulation resistor 250MΩ, 250VDC
Overpressure <6MPa, 2 times FS;
(6~60)MPa, 1.5times FS;
Differential pressure or Low pressure range 1.3times FS



***Basic Specification

Item Min. Typ. Max.   Units
Linearity   ±0.15  ±0.25  %FS,BFSL
Repeatability    ±0.1   %FS
Hysteresis    ±0.05  ±0.1  %FS
Zero output    ±2  mVDC
FS output 60     mVDC
Zero thermal error    ±0.02  %FS/ºC
≤70Kpa      Zero thermal error ±0.03 %FS/ºC
FS thermal error    ±0.03 %FS/ºC
≤70Kpa
FS thermal error ±0.05 %FS/ºC
Compensated temp. range  -10~70  ºC
≤70Kpa
Compensated temp. range 0~70 ºC
Storage temp. range -20~65  ºC
Stability    ±0.2  ±0.3  %FS/year
*testing at basic condition,G: Gauge; A: Absolute; S: Sealed gauge



***Basic Condition
Media temperature (25±1)ºC
Environment temperature (25±1)ºC
Shock 0.1g (1m/s/s) Max
Humidity  (50%±10%)RH
Local air pressure (86~106)kPa
Power supply (1.5±0.0015)mADC




***Electric Connection
Pin Connection
Red IN+
Yellow OUT+
Black, green IN-
White OUT-



***Order Note
1. It is recommended that the sensor should be installed as Suspended Mode to avoid face tight press and avoid affecting sensor stability.

2. Please pay attention to protect the diaphragm to prevent any damage or bad performance.

3. If the working temperature of Viton rubber exceeds the temperature of the rubber specification or be applied in critical environment, please contact us.

4. The material of measuring medium should be compatible with the stainless steel. If it is corrosive, pls specify its material in detail.

5. All specifications are subject to change. Contact Gaohua for specifications and engineering drawings that are critical to your application. Drawings contained in this document are for reference only.


***Order flow chart
A) Inquiry ----Please tell us the specification you need.
B) Determine the parameters ----- Do or can not do.
C) Sample -----If we can do them, we will send the sample to you, but freight is born by you.
D) Sample time ---we will arrange the samples in 1-3 working days.
E) Express way ----UPS, DHL, FedEx, EMS and so on, please tell us the express way you need.
