Building Project Fireproof Aluminum Composite Material (1250mm)
| Price: |
US $ 15/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
1000/Square Meter |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Product Specifications
| Prod Model: |
1250mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Size: |
1220*2440mm, 1250mm, 1500mm Width Also Available |
| Surface Coating: |
PE and PVDF |
| Surface Finishing: |
Coating |
| Function: |
Fireproofing |
| Usage: |
Curtain Wall |
| Certification: |
ISO |
| Panel Thickness: |
2mm-6mm |
| Aluminum Thickness: |
Any Thick as You Need |
Product Description
Building project Fireproof
aluminum composite material(1250mm)
1. Quality:
1) Under natural climate, film coating will be no flake. No rubbles, no vestige and no pulverization.
2) Under common environment. No flake. No rubbles.
3) Under common temperatures and radiation, no color deferent.
4) According to international test standard, all the tested items are satisfied with high-class.
5) Our products with PVDF coating under common environment, we can guarantee 10~15 years; And for FR products, it is good at fireproof, and the FR grade is B1.
2. Dimensions: | Standard size | 1220 x 2440 x 3mm and 1220 x 2440 x 4mm |
| Accepted thickness | 2mm,3mm, 4mm, 5mm, 6mm |
| Common width | 1220mm, 1250mm, 1500mm, 1575mm, 2000mm... |
| Accepted length | According to buyer's requirement |
| Accepted alu thickness | 0.04~0.5mm, such as 0.06mm,0.10mm,0.15mm, 0.18mm,0.21mm,0.3mm,0.35mm,0.4mm, 0.45mm,0.5mm |
| other details | contact me please, thanks |
3. Range of applications: 1) Can be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments.
2) Other kinds of buildings: As ideal decorative materials for the outer-wall and inner-wall of buildings.
3) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
4) Ceilings, eaves, balconies, partitions and interior decorations.
5) Telephone booths, vehicle bodies, and industrial usages.
6) Re-decoration of the old building
4. Feature:
1) Super weather resistance
2) Light weight easy to process
3) Excellent fire resistance
4) Excellent impact strength
5) Uniform and colorful coating
6) Easy maintenance...And so on
5. Material:
1) Top: Aluminium alloy sheet coated with fluoro-carbon resin (PVDF) and polyestor resin (PE) painting.
2) Core: Non-toxic polyethylene or fireproof material
3) Back: Aluminium alloy sheet coated with service painting

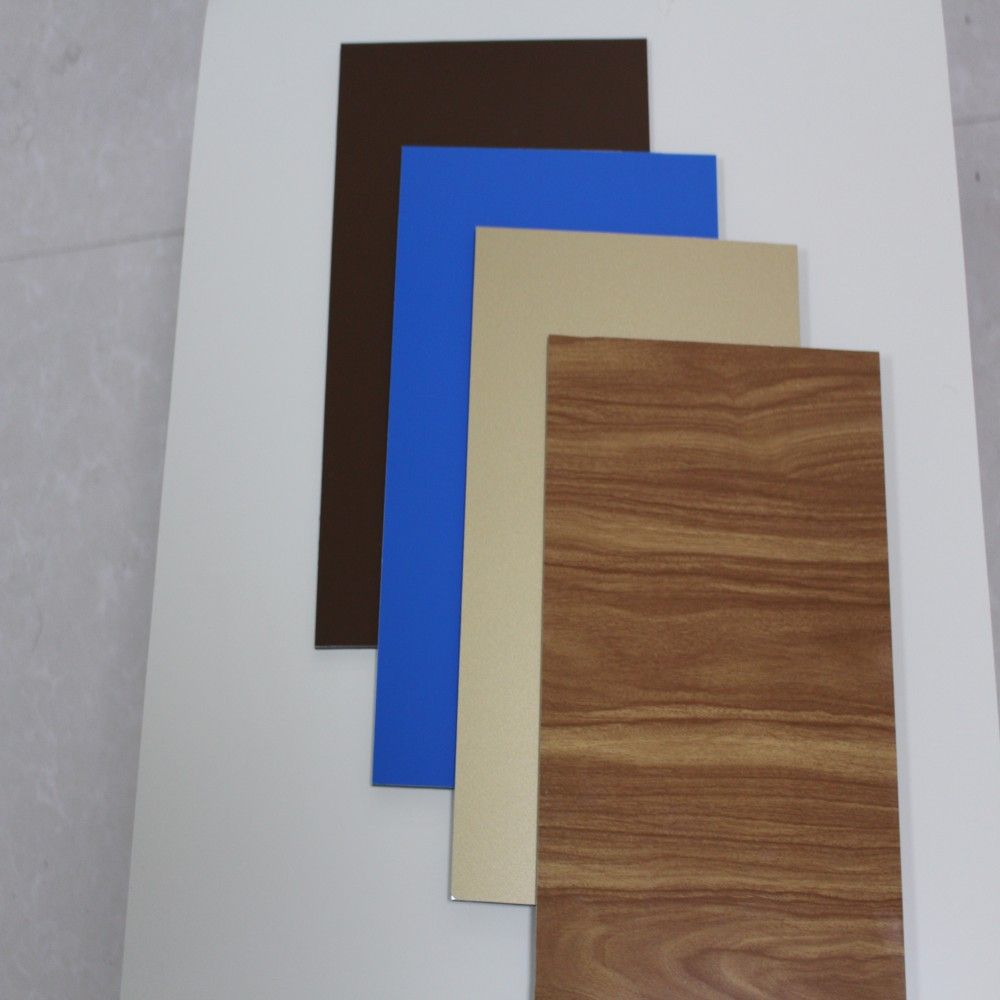

4) Surface finish: PVDF / PE resin, brush finish, mirror finish, wooden faced, nano painting ect.
5) Surface coating thickness: 30 um 70% KYNAR PVDF
6) Aluminium alloy sheet thickness: 0.06mm,0.10mm,0.15mm, 0.18mm,0.21mm, 0.3mm, 0.4mm, 0.5mm.

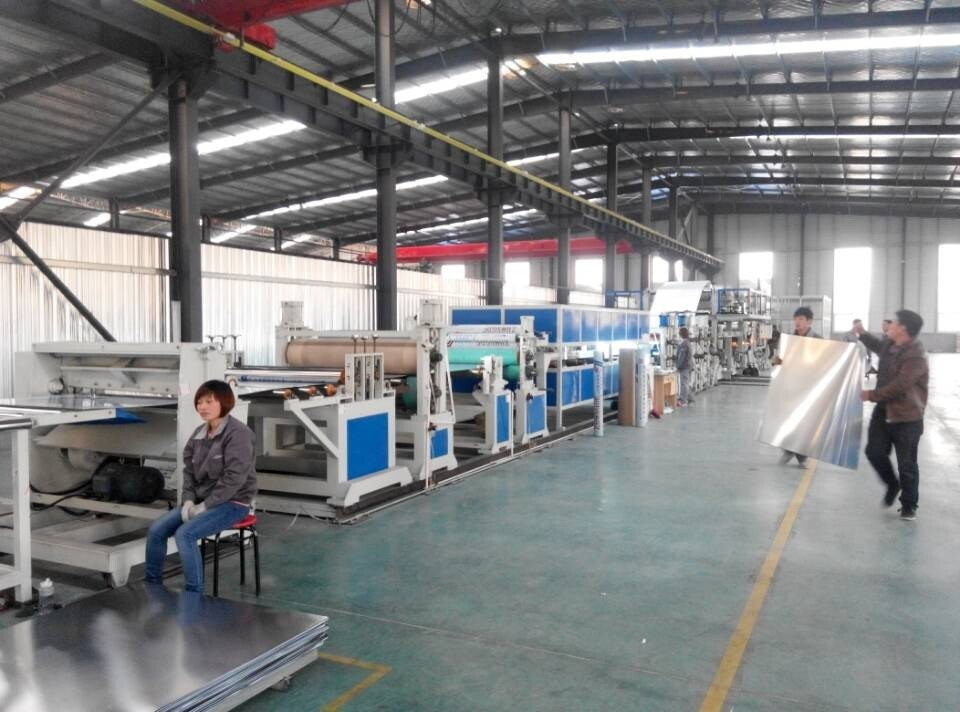

Linyi Jinhu Color Coating Aluminum Industry Co., Ltd. is established in 2004, equipped with 10 advanced coating lines and 6 stone coated metal roof tile production lines. Jinhu is one of the biggest manufactureres of color coated aluminum coil, stucco&diamond embossed aluminum coil. Aluminum strip, aluminum ceiling and stone coated steel roof tiles in China.
Our products have been certified by ISO9001: 2000 international qualiyt management system, SGS, CE and Soncap. Our products are exported all over the world like USA, U. A. E., Vietnam, Russia, Iran, India, Malaysia, Philippines, Thailand, Sri Lanka, Greece, Nigeria, Ghana, Congo and Kenya...etc.
Annual capacity of aluminum products is 45, 000tons. We could produce coated aluminum coils from 0.02mm to 1.5mm. Max. Width arrive 1600mm and coatings including PE and PVDF.
Annual capacity of stone coated steel roof tiles is 6, 000, 000PCS. Models including Bond, Classic, Shingle Shake, Roman, Milano, Wood shake, corrugated roof tile.
Currently, Jinhu aluminum enlarge the production capacity and open another 2 new manufactories, One is exclusive for aluminum composite panel production, another one is locaed in Linyi free trade intergated zone covering the space of 250 acres. Mainly focus on the production of advanced quality of aluminium composite panel and coated aluminum coil. We are engaged in becoming the largest aluminum composite panel production base.
