| Price: | US $ 12.60-12.78/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 800/Square Meter |
| Pay Type: | L/C,T/T,Money Gram,Western Union |
Aluminium Composite Panel (ACP) or Aluminium Composite Material (ACM) is a widely-used term describing flat panels that consist of a non-aluminium core bonded between two aluminium sheets.Aluminium sheets can be coated with PVDF or Polyester paint.ACPs are frequently used for external cladding of buildings (building facades), for insulation and for signage.
1/Specification
| Panel Thickness | 2mm,3mm,4mm,5mm,6mm |
| Panel Width | 1000mm,1250mm,1500mm,2000mm(maximum) |
| Panel Length | 1000mm to 6000mm |
| Surface coating | One side coil coated, backside lacquer finish |
| Other surface | Both sides coil coated lacquer; One side anodized, backside lacquer finish |
Standard size: 1220mm x 2440mm x 3mm for interior
1220mm x 2440mm x 4mm for exterior
Other specifications upon request.
Dimensional tolerances:
| Panel Width | ±2mm |
| Panel Length | ±3mm |
| Panel Thickness | ±0.2mm |
| Panel Diagonal | ≤5mm |
| Aluminum sheet thickness | ±0.2mm |
Standard Color: 30 kinds. Special color available upon request.
2.Products series
1/ PE coatd aluminum composite panel
2/ PVDF coated aluminum composite panel
3/ Fire resistant aluminum composite panel
4/ Signage grade aluminum composite panel
5/ Digital printing aluminum composte panel
6/ Brushed finish / mirror finish / wooden finish / granite finish / aluminum composite panel
3.Material
- Top :Aluminum alloy(1100,3003) coated with Fluorin carbon resin (PVDF) or Polyester resin (PE) roasting painting.
- Core :Non-toxic polyethylene or fireproof material(B1).
- Back:Aluminium alloy sheet coated with polyester resin painting.
- Surface finish:PVDF / PE coated,brushed finish, mirror finish, wooden faced,marble faceed ,nano paintingect.
- Surface coating thickness :25~30 μm 70% KYNAR 500 PVDF or PE.
4.Features:
1) Fireproof and water resistant, excellent heat and sound insulation
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion and pollutant resistance
4) Even coating, various colors
5)Super peeling strength
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain
5.Application
1) Building exterior curtain walls
2) Decoration and renovation additions for old buildings
3) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
4) Shop door decoration
5) Advertisement board display platforms and signboards
6) Wallboards and ceilings for tunnels
7) Industrial materials and materials for vehicles and boats
6.Package
We have 3 kinds of package for sunshine aluminum composite panel
A.In bluk---can load more panels, but need manual unloading.
B.In wood pallets----load less panels than bulk load, but convenient in unloading.
C.Wood boxes----usually for LCL load, to protect panels from damage on the way.

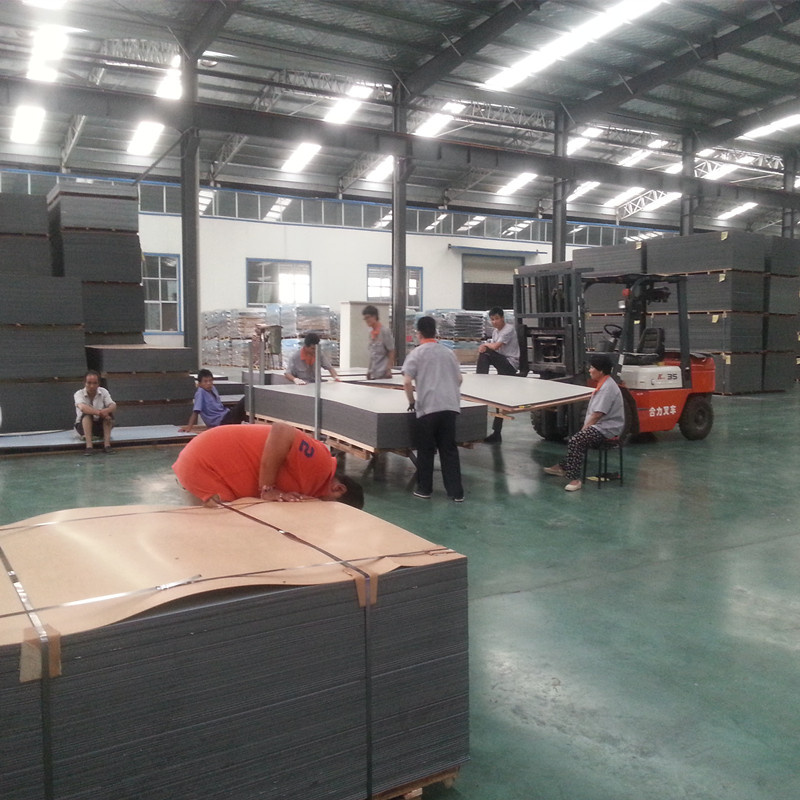

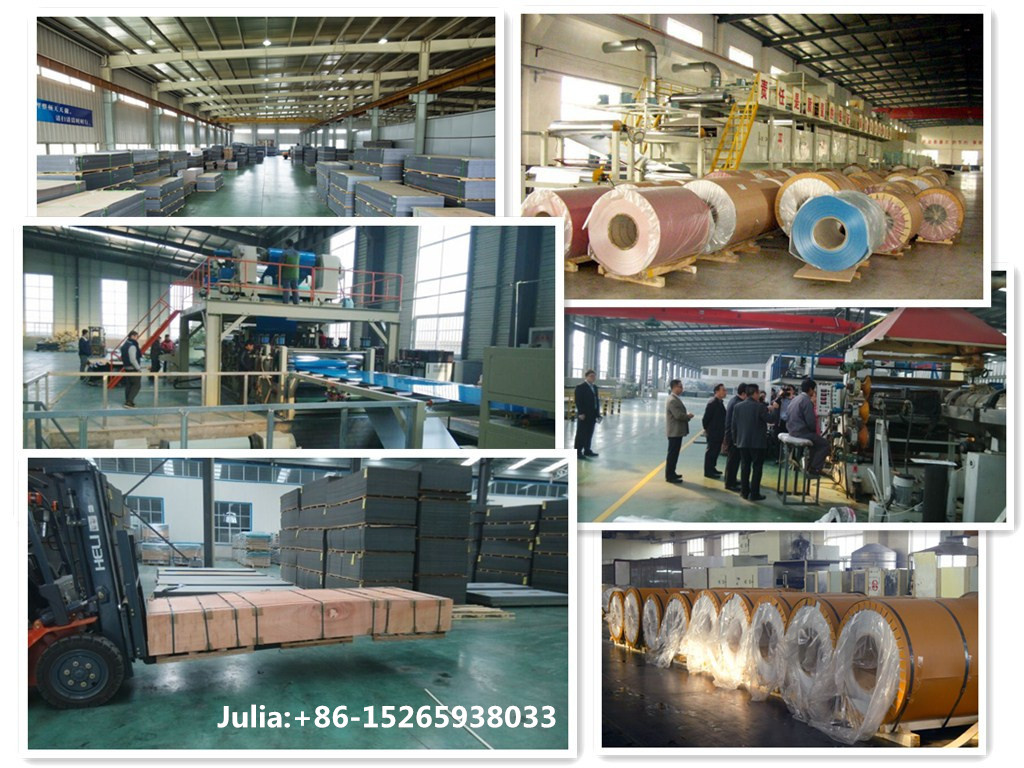

We are a professional manufactory of aluminum composite panel in China, with experience over 13 years.Our factory located in Linyi integrated free trade zone, equipped with 9 color coating line and 6 advanced laminated lines.We can supply ACP with good quality and competitive price.
| Prod Model: | SS-002 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard Size: | 1220mm*2440mm |
| Width: | 1000mm, 1220mm, 1250mm, 1500mm, Max:1580mm |
| Length: | 2440mm Till 6000mm |
| Color: | Can Be Customize. |
| Middle Core: | Recycle PE |
| Type Of Core: | Unbroken Core |
| Surface Coating: | PE Coating |
| Back Side Coating: | Primer |
| Surface Finishing: | Coating |
| Panel Thickness: | 4mm |
| Aluminum Thickness: | 0.3mm |
| Function: | Mould-proof |
| Usage: | Advertising |
| Certification: | ISO |
