Product Specifications
| Prod Model: |
AH-SA6VKC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera: |
High Quality Camera |
| Call Indoor Monitor: |
Password Access |
| Access Card: |
IC & ID |
| Password Access: |
Available |
Product Description

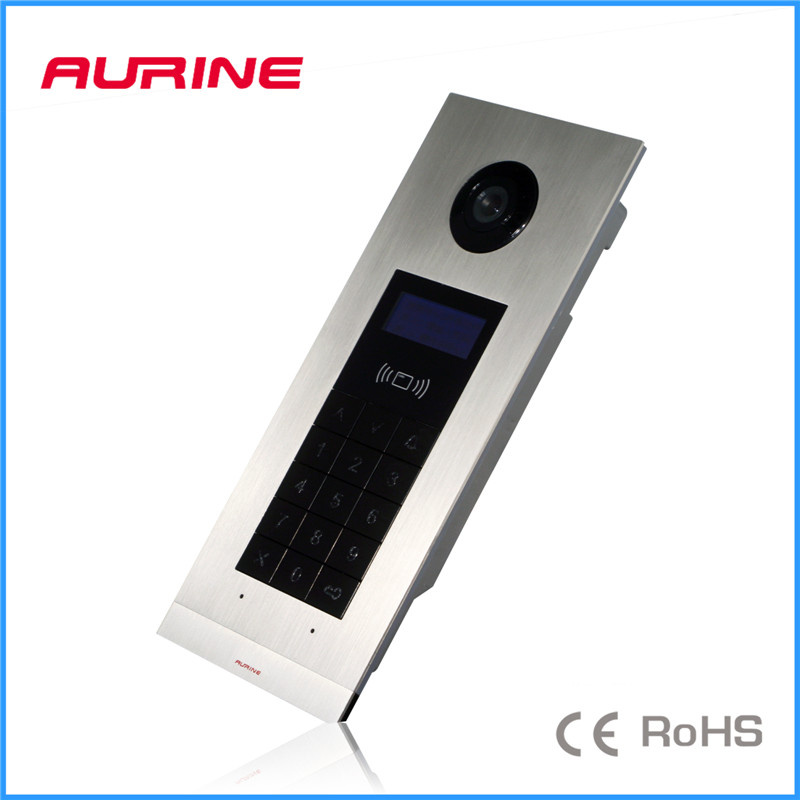

IR Light Access Control Door Entry Video Intercom
FEATURES
Receive calls from Outdoor Camera / Secondary Entry Station.
Receive calls from Doorkeeper Unit.
Monitor doorway and launch a talk during monitoring.
Release the door at apartment / secondary entry remotely during talk or monitoring.
Brightness , contrast and volume adjustable
Specifications
SPECIFICATIONS
Model |
AH-SA6VKC |
Camera |
1/3" color CCD |
Light Compensation |
IR light |
Access Card |
IC & ID |
Password Access |
available |
Unlock Time |
0.3s /3s /6s |
Lock Type |
fail-secure |
Display |
blue LCD |
Keypad Backlight |
blue |
Voice Instruction |
depend on the system |
Exit Button |
available |
Input Voltage |
DC18~24V |
Working Current |
≤1A |
Ambient Temperature |
-30ºC~+70ºC |
Relative Humidity |
40%~80%RH |
Installation |
flush mount |
Product Dimensions(W×H×D) |
130 × 310 × 35.5 mm |
Embedded Dimensions(W×H×D) |
118.4 × 299.9 × 45 mm |
Packing Dimensions(L×W×H) |
375 × 190 × 90 mm |
Embedded Box |
AH-SA6J |
SYSTEM DIAGRAM
SYSTEM CAPACITY |
Total apartments |
500(buildings) × 9 × 112 × 4 = 2016000 |
Total risers per building |
9 |
Total Primary Entry Stations |
15 |
Sum of Secondary Entry Stations &
External Cameras per Network Controller |
8 |
Total Indoor Phones per apartment |
4 |
Total Outdoor Cameras per Indoor Phone |
2 |
