| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | CK6125 CK6130 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Swing Over Bed: | 250/300 mm |
| Process Usage: | Metal-Cutting CNC Machine Tools |
| Movement Method: | Contour Control |
| Control Method: | Closed-Loop Control |
| Numerical Control: | CNC/MNC |
| Performance Classification: | Economical CNC Machine Tools |

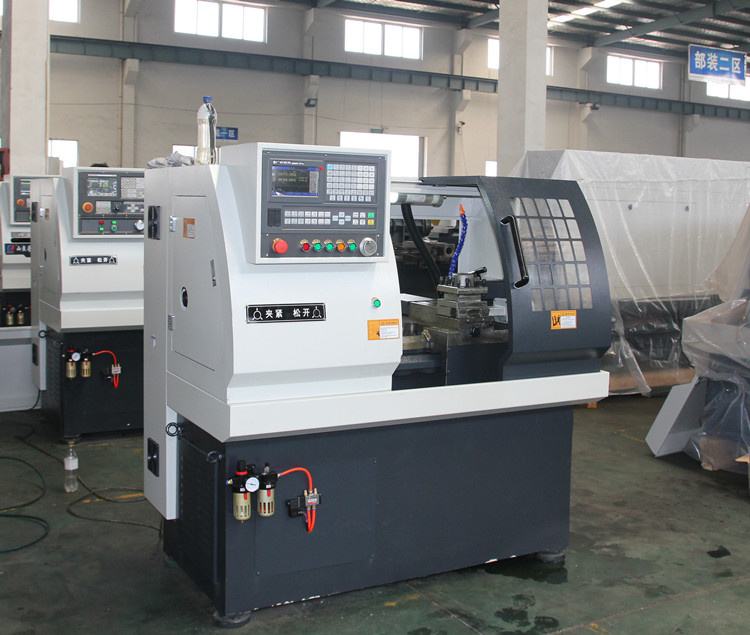

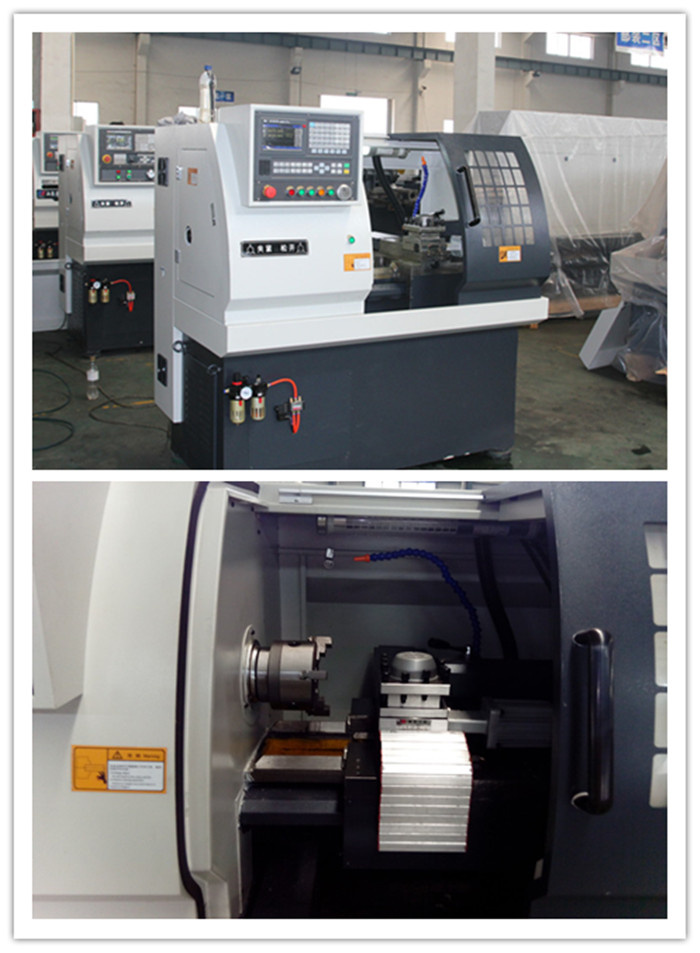

This machine is widely used in processing the electrical appliance, instrumentation, automobile, motorcycle, fastener, bearing, photographic and film machinery, hardware tools, watches, glasses, stationery motors, valves, gas pipe and other high precise and complex components. It is the ideal high efficient equipment in hardware machinery industry.| Standard Accessories | Optional Accessories |
| GSK980TDC or Siemens 808d NC system inverter motor 4kw spring collet | KND100Ti or Fanuc 0I mate-TD servo motor 3.7/5.5 kw inverter motor 5.5 kw 160mm manual chuck 160mm domestic thu-hole hydraulic chuck 160mm domestic none thru-hole hydraulic chuck 160mm domestic thu-hole hydraulic chuck (Taiwan brand) 160mm domestic none thru-hole hydraulic chuck(Taiwan brand) |
| Specification | CK6125 | CK6130 |
| Max.swing over bed | 250 mm | 300 mm |
| Max. Swing over cross slide | 100 mm | 90 mm |
| Max. Processing length | Chuck 260/collet320 mm | Chuck 290/collet400 mm |
| Spindle bore | 48 mm | 48 mm |
| Max. diameter of the bar | 41 mm | 41 mm |
| Spindle nose | A2-5 | A2-5 |
| Spindle speed | 150-2500 rpm | 150-2500 rpm |
| Spindle motor power | 4 kw | 4 kw |
| X/Z axis travel | 300/350 mm | 300/380 mm |
| X/Z axis torque | Servo 4/4 kw | 4/4 kw |
| X/Z axis rapid feeding speed | 8/10 m/min | 8/10 m/min |
| X/Z axis position accuracy | 0.01/0.015 mm | 0.01/0.015 mm |
| X/Z axis repeatability | 0.012/0.013 mm | 0.012/0.013 mm |
| Tool bar section | 16*16 mm | 16*16 mm |
| Tailstock sleeve dia. | 52 mm | 52 mm |
| Tailstock sleeve travel | 90 mm | 100 mm |
| Tailstock taper | MT4# | MT4# |
| N.W. | 950 kg | 1200 kg |
| Machine dimension (L*W*H) | 1780*800*1600 mm | 1750*1200*1570 mm |
