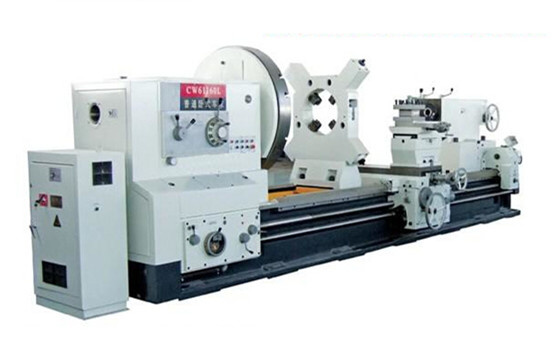

Heavy Duty Lathe Machine Cw61125L Cw61140L Cw61160L Cw61190L
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
CW61125L CW61140L CW61160L CW61190L |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Spindle Bore: |
130mm |
Max.Swing Diameter Over Bed: |
1250 1400 1600 1800 1900mm |
Type: |
Horizontal Lathe |
Processing Accessory: |
Chuck CNC Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Setting Mode: |
Floor-type |
Precision: |
High Precision |
Tool Holder: |
4 Way Tool Post |
Product Description
These lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning. They are characteristics of power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools. Stand Accessories Four-jaw chuck F 1250mm CW61125L, CW61140L, CW61160L: Steady rest F120--480mm(for more than 2m) CW61180L, CW61190L: Steady rest F400--700mm(for more than 2m) Follow rest(for more than 2m) 4. Morse No. 6 Center 5. Tools 6. Set-over screw Special Accessories 1. Metric chasing dial device 2. Inch chasing dial device 3. Inch lead screw 4. T-type tool postSpecifications | Model |
CW61125L | CW61140L | CW61160L | CW61180L | CW61190L |
Capacity | Max.swing diameter over bed (mm) | 1250 | 1400 | 1600 | 1800 | 1900 |
Max.swing diameter over crossslide (mm) | 880 | 1030 | 1230 | 1400 | 1500 |
Width of bed (mm) | 1100 |
Max.length of workpiece (mm) | 1000-8000 |
Spindle | Spindle nose | A15 |
Sindle bore diameter | 130mm |
Taper of spindle bore | Metric 140# |
Range of spindle speed | 3.15-315r/min 21kinds |
Feeding | Longitudinal feeds range | 0.12-12mm/r 56kinds |
Transversal feeds range | 0.05-6mm/r 56 kinds |
Metric thread range | 1-120mm 44 kinds |
Inch thread range | 3/8-28 31 kinds |
Module thread range | 0.5-60mm 45 kinds |
Pitch thread range | 1-56 25 kinds |
Tailstock | Tailstock sleeve taper | Metric 80# |
Tailstock sleeve diameter | 200mm |
Tailstock sleeve travel | 260mm |
Motor | Main motor power | 30Kw |
Rapid motor power (kw) | 1.5Kw |
Coolant pump power (kw) | 0.125Kw |
