Product Specifications
| Prod Model: |
CM35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Antistop: |
Proximity Swith |
| Workmanship: |
The Exquisite German Technology |
| Protection Structure: |
IEC Standard IP54 |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitance Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description

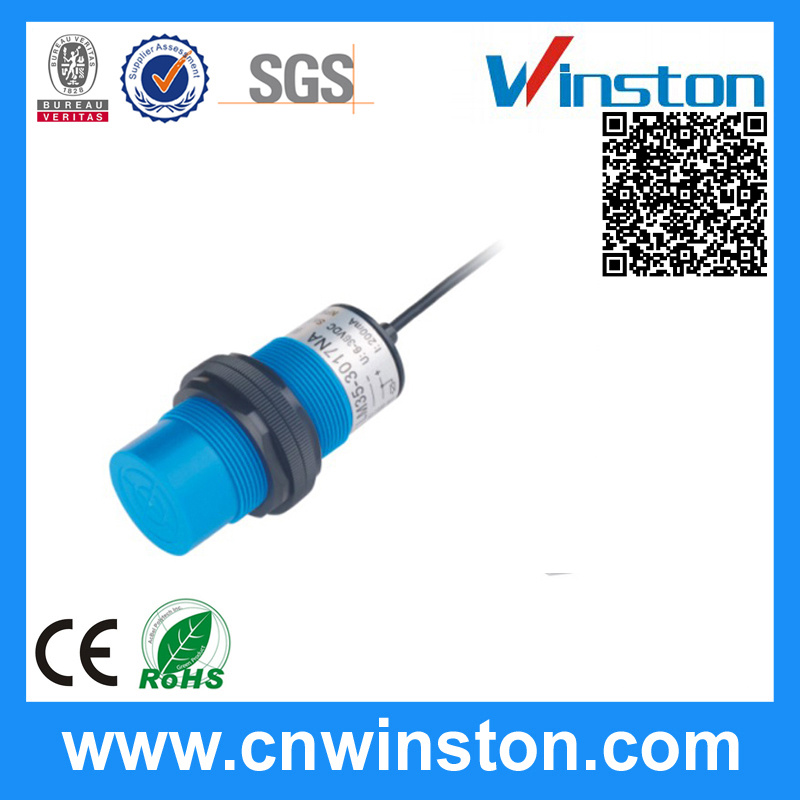

Product Description:CM35 Capacitance proximity switch Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service lifeTechnique parameter:Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)
Technical Parameters:
|
OVERALL DIMENSIONS |
|
DETECTION DISTANCE |
F
l
u
s
h
|
DC
6-
36
VDC
AC
90-
250
VAC
| NPN | NO |
|
NC |
|
NO+NC |
|
PNP | NO |
|
NC |
|
NO+NC |
|
SCR
Control-
lable
silicon | NO |
|
NC |
|
DETECTION DISTANCE 0-25mm |
F
l
u
s
h
|
DC
6-
36
VDC
AC
90-
250
VAC
| NPN | NO | CM35-3025NA |
NC | CM35-3025NB |
NO+NC | CM35-3025NC |
PNP | NO | CM35-3025PA |
NC | CM35-3025PB |
NO+NC | CM35-3025PC |
SCR
Control-
lable
silicon | NO | CM35-2025A |
NC | CM35-2025B |
Detectable object | conductor and dielectric body |
Consumption current | DC<15mA,AC<10mA |
Controloutput | DC:200mA,AC:300mA |
| Output voltagc dropDC/AC | DC<3V,AC<7V |
| DC/AC Response frequency | DC:50Hz,AC:10Hz |
| Shell material | ABS Plastic |
| Working environment temperature | -25ºC~70ºC |
| Insulation resistance | 50MΩ |
| Protection structure | IECstandard lp54 |
| Altemative model at home and abroad |
|
