Product Specifications
| Prod Model: |
DD282 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a): |
3X1.5(6),3X5(20),3X10(40),3X15(60),3X20(80) |
| Rated Voltage(V): |
3X220/380 |
| Rated Frequency(Hz): |
50 or 60 |
| Accuracy Class: |
Class 1 or Class 2 |
| Weight(Kg): |
0.5 |
| Voluum: |
270X170X157 |
| Colour: |
White |
| Type: |
Energy Meter |
| Display: |
Indicator |
| Electric Equipment: |
Three-phase Three-wire |
| Theory: |
Induction Meter |
| Installation: |
General Installation Meter |
| Usage: |
Watt-Hour Meter |
| Measured Signal: |
Pulse Peak |
| Power Meter Connection: |
Terminal |
Product Description

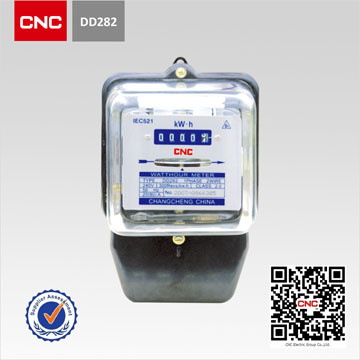

DD28 Single-phase Watt-hour Meter
Key Words: Watt-Hour Meter, Single-Phase, Meter, Kwh Meter, Induction Meter, Meters, Single Phase Watt-Hour Meter
1. General:
The DD28 type single-phase watt-hour meter is a kind of induction meter, which is applicable to measure the rated frequency 50Hz and measurement of active electric energy in single-phase AC electric net.
2. Function and features
1). The meter has separable iron core structure;
2). The bearing has three kinds: Single-jewel, dual jewel, magnetic floating;
3). The case has three kinds: Aluminum, plastic and glass;
4). The die-casting frame is allow aluminum with excellent mechanical strength.
|
Type |
Accuracy |
Rated voltage(V) |
Rated current(A) |
Overload capacity |
Starting current |
Insulation performance |
|
DD282 |
2 |
220~240 |
2(4), 2.5(5), 3(6), 5(10), 10(20), 20(40), 20(80) |
200%Ib |
0.5%Ib |
AC voltage 2kv for 1 min, impulse voltage 6 kv |
|
DD284 |
5(20), 3(12), 10(40), 15(60), 20(80) |
400%Ib |
