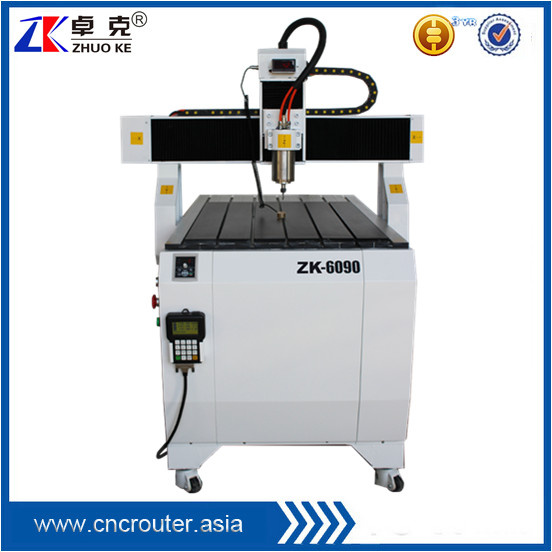

CNC machinery for wood with DSP controller (ZK-6090)
Main applications
Used for advertising signage, label, crystal words processing, refined carving of
various pattern, carved furniture, toys and gifts, architects models, decoration
industry, plastic light box, and so on.
Suitable materials
Organic glass, acrylic, ABS, PVC, MDF, double color boards, aluminum
composite panel, wooden material, ox horn, marble, copper, aluminum and other
non-ferrous metal.
Main Technical Parameters
| Items | Description | Items | Description |
XY-axis working
area | 600*900mm | Software operating
environment | Windows98/2000
/xp |
Z-axis working
area | 120mm or higher | Spindle power | 1.5KW(2.2kw)
water cooling |
| Transmission mode | screw | Spindle speed | 0-24000rpm/min |
| Guide way | Linear round or
square guide way | Spindle cutter | 3 4 6 |
| Working table size | 700*1250mm | Power( without
spindle) | 300W |
Biggest feeding
height | >150 mm | Driving mode | Stepper motor |
Biggest travelling
speed | 7-8m/min | Control system | PCI NcStudio or
DSP offline |
Biggest engraving
speed | 4-6m/min | Working voltage | AC220V/50HZ |
Repeat positioning
accuracy | 0.05mm | Engraving command | G code *u00*mmg*
plt |
Machine details
1.Imported the ball screw and linear round guide way for X Y Z-axis, stable operation, high precision and low vibration.
2. 1.5KW water cooling spindle,2.2KW and 3.0KW optional
3.DMA860H Leadshine driver,Sunfar frequency inverter panel on the control box,it is easy
to adjust spindle speed.
4. knife block,can be more quickly and accurately to confirm whether the tool
perpendicular to the working plane.
5.it has 4 wheels in the machine base, so it is easy to push the machine.
6.t has thermometers on the spindle top,measuring the temperature of spindle, prevent
the high temperature of spindle, and damage spindle.
Main features
Good rigidity: cast iron machine bed, good stability, long life time.
High accuracy :adopted high accuracy grinding ball screw, linear round ( or square guide way for X Y Z-axis, high performance driver.
Strong cutting force: using China famous brand water cooling spindle ( or can
choose air cooling spindle) , low noise, strong cutting force, can ensuring long time mass processing.
Good extensibility: control system, you can choose PCI NcStudio or DSP offline,
also can choose rotary axis, dust collector, vacuum table, water tank etc.
Intelligent control :the system control the processing speed, idle speed and cutting
speed, improving the processing speed, extending the cutters lifetime, increasing
the rate of the finished products.
Breakpoints, power off memory way, ensuring the memory function, can continue
processing if cutters break or next day working.
High sotware compatibility :
supportingType3,Artcam,Castmate,Pro-E,Ucancam V9,all kinds of CAD/CAM software.
