Product Specifications
| Prod Model: |
QT4-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Steel |
| Color: |
Blue |
| Control: |
PLC |
| Vibration Form: |
Table |
| Method: |
Hydraulic Pressure |
| Processing: |
Brick Molding Machine |
| Product: |
Brick |
| Brick Raw Material: |
Concrete |
| Automation: |
Automatic |
| Tolerance: |
0.5mm |
| Certification: |
ISO9001: 2000, CE, SGS |
| Type: |
Concrete Iron Molding Machinery |
Product Description
ISO9001, CE, SGS
solid and hollow block
low investment high output
semi-automatic concrete block machine

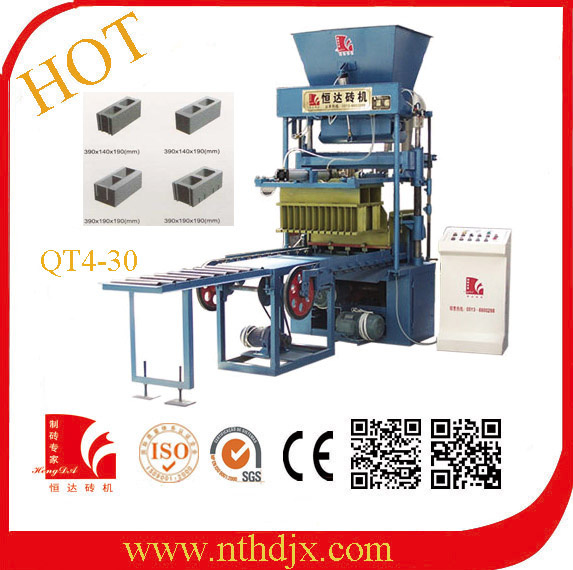

QT4-30 concrete block making machine,cement block machinery, hollow block making machine
1. Characters
1) Color touch screen and hydraulic components ensure longer service life.
2) Advanced material-feeding technology evenly discharges the materials into the molding box and ensure brick quality.
3) Vibration time can be set in advance and adjusted according to the raw materials.
4) A wide range of blocks can be produced: standard bricks, perforated bricks, color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks, sod bricks, hydraulic hollow blocks, etc.
5) Simple in operation, good quality, high density.
6) An unskilled worker can operate the machine in manual mode.
2. Configuration of QT4-30 hollow block making
mixer ,conveyor, plate feed machine,hollow block making machine,brick receiving machine
3. Technical Specifications of QT4-30 hollow block making
Main Machine |
350 |
Cycle |
30s |
power |
12.3kw |
Weight |
3200 |
overall size |
2400x1600x2100mm |
pallet size |
850x550x25mm |
voltage |
380v |
Executive standards |
GB/T8533-1998 |
4.The Capacity of Main Products:
Item |
Size(mm) |
Pcs/mold |
Molding time |
Pcs/hr |
Hollow block |
400×200×200 |
4 pcs |
30-40 s |
410 pcs |
400×240×200 |
3 pcs |
30-40 s |
310pcs |
400×150×200 |
5 pcs |
30-40 s |
510pcs |
Porous
block |
240×115×90 |
9 pcs |
30-40 s |
920pcs |
Solid brick |
240×115×53 |
21 pcs |
30-35 s |
2100pcs |
