Construction Radio Remote Control F24-8s

Product Specifications

Prod Model:	F24-8S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Construction Radio Remote Control F24-8s
Control Distance:	up to 100m
Control Points:	8
Transmitter Power:	DC3V
Receiver Power:	AC 380V/ 36V/220V/110V or DC12V/24V
Enclosure Protection Class:	IP65
Temperature:	-35°c___+80°c
Unique Code:	Over 4.3billon Unique ID Codes
Output Capacity:	5 Amperes
Certificate:	CE, FCC, ISO9001:2008
Application:	Cranes, Hoists, Heavy Trucks, Excavator, Trailer,
Signal Transmission:	Radio Waves
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	>100m
Material:	Plastic
Battery Type:	AA Battery
Voltage:	AC 380V/ 36V/220V/110V or DC12V/24V

Product Description

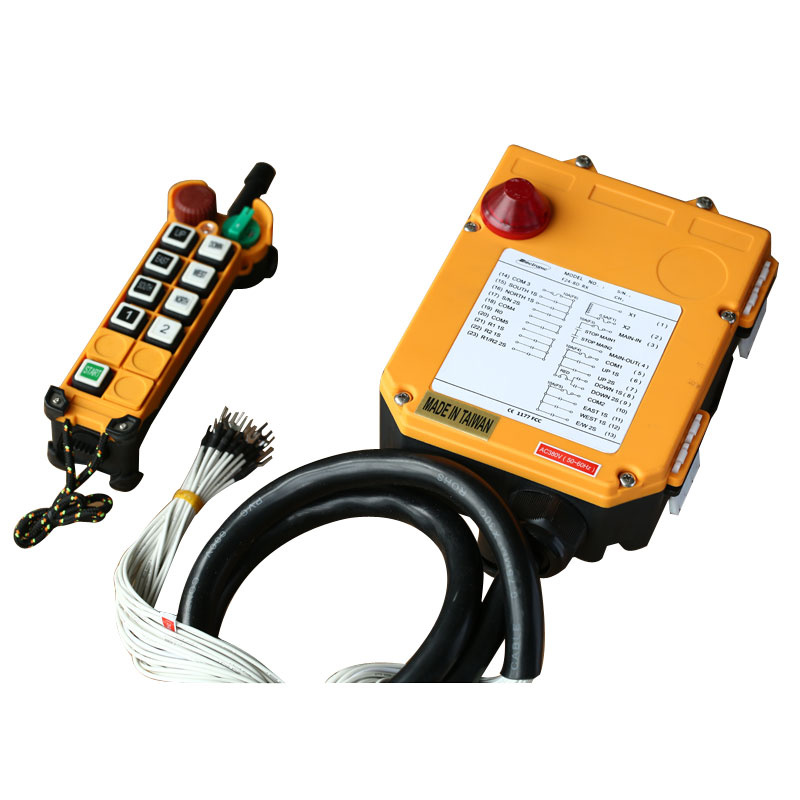

Construction radio remote control F24-8S

 Summary:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.


Product Advantages:
1. The raw materials of radio remote controls imported from the Europe and the United States.
2. Production equipment imported from South Korea's Samsung.
3. One hundred percent quality inspection.
4. Certificates: CE, ISO9001, FCC, ETC.
5. Factory price. The price is lower than the peer.


Specifications:
Control distance:                                          up to 100m
Unique code:                                               over 4.3billon unique ID codes
Temperature:                                               -35°C~+80°C
Enclosure protection class:                           IP65
Transmitter power:                                       DC3v
Receiver power:                                          AC 380v/ 36v/220V or DC12V/24V
Output capacity:                                           Full sealed relay output with 5 amperes


Standard configuration:
                          One transmitter;
                          One receiver;
                          One 1m cable connect with receiver;
                          One operation and maintain manual.


SPECIFICATION:

Application	Overhead cranes, hoist ,chain hoist and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	8
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:208
Number of push button	8 Single speed push button +1 start
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber
